Запчасти Case IH 2388 (09A-08) - FEEDER - HOUSING, DRIVE AND FAN GEAR (13) - FEEDER

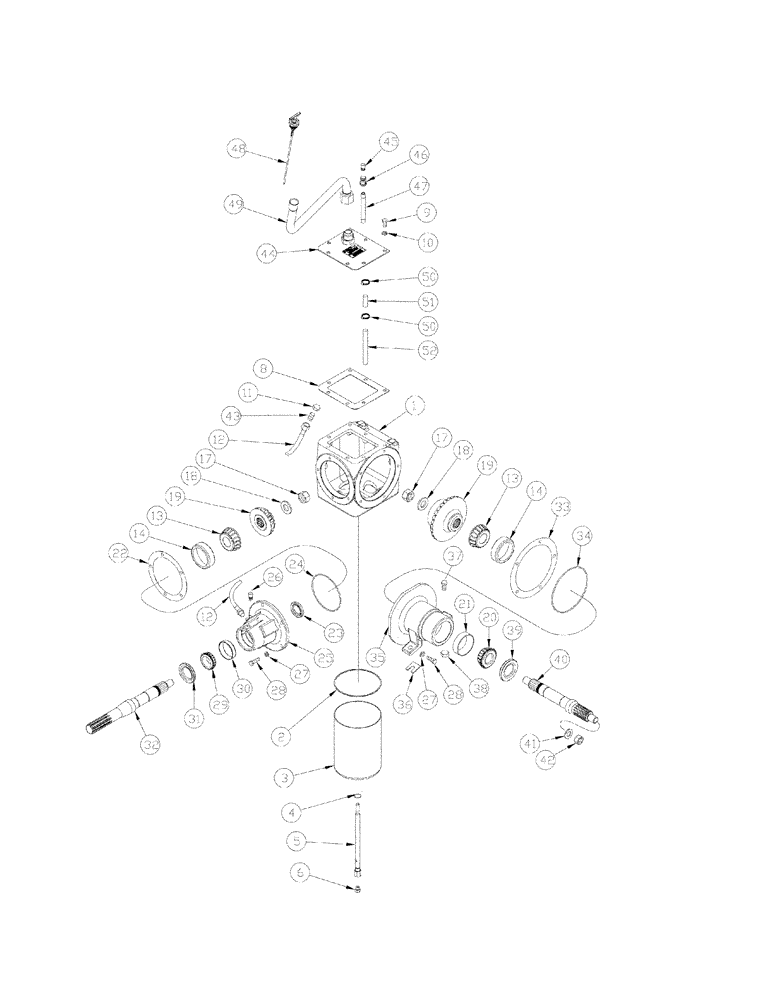

Схема запчастей Case IH 2388 - (09A-08) - FEEDER - HOUSING, DRIVE AND FAN GEAR (13) - FEEDER
23
14
11
2
19
9
17
12
31
27
40
33
13
10
18
46
35
17
45
22
43
30
50
34
8
38
37
19
24
48
44
5
39
4
25
1
49
52
20
41
36
26
12
28
32
47
27
14
29
18
6
42
50
28
21
13
51
3

Артикул

Название

Примечание

Количество

393577A2

GEARBOX

Forward, Includes 1 - 10, 13, 14, 17 - 22, 23 - 35, 39, 40, 44 - 47, 51, 52

1шт.

393577A2R

REMAN-HOUSING

Reman for New PN 393577A2

1шт.

393577A2C

CORE-TRANSMISSION

Return Number

1шт.

1

397128A1

HOUSING

1шт.

2

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

1шт.

3

242234A1

HOUSING

Filter

1шт.

4

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

5

398059A1

SPECIAL BOLT

1шт.

6

9672438

PLUG,7/16" - 20 ORB

1шт.

7

353-200

PLUG

1/8"-27 NTPF (Not Illustrated)

1шт.

8

191397C2

GASKET

1шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

10

492-11038

LOCK WASHER,3/8"

7шт.

11

F53473

LOCK NUT,1/8-27 NPSM

1/8" PT

1шт.

12

1339006C1

TUBE,914 mm L

914 mm (36") Grease Line

1шт.

13

390952A1

BEARING CONE,34.92mm ID x 30.16mm W

2шт.

14

57861H

BEARING CUP

2шт.

17

185413C1

LOCK NUT

2шт.

18

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

2шт.

19

1315597C1

GEAR SET

18/31T

1шт.

20

197609R91

BEARING ASSY,1.375" ID x 3" OD x 1.125"

1-3/8" ID

1шт.

21

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

3" OD

1шт.

195484C2

SHIM KIT

Includes 22

1шт.

22

194548C1

SHIM,135.1mm ID x 177.8mm OD x 0.13mm Thk

.127 mm

1шт.

22

194549C1

SHIM,135.1mm ID x 177.8mm OD x 0.18mm Thk

.178 mm

1шт.

22

194550C1

SHIM,135.1mm ID x 177.8mm OD x 0.5mm Thk

.508 mm

1шт.

23

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

1шт.

24

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

25

390547A1

HOUSING

1шт.

26

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

1шт.

26a

218-758

CAP,37 Degree, 1 5/16"-12

Not Illustrated

1шт.

27

492-11038

LOCK WASHER,3/8"

10шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

29

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8" ID

1шт.

30

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2-1/2" OD

1шт.

31

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

1шт.

32

191396C1

SHAFT

Input

1шт.

195485C1

SHIM KIT

Includes 33

1шт.

33

NSS

NOT SOLD SEPARAT

Shim, .127 mm

1шт.

33

NSS

NOT SOLD SEPARAT

Shim, .178 mm

1шт.

33

NSS

NOT SOLD SEPARAT

Shim, .508 mm

1шт.

34

238-5259

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

1шт.

35

390549A1

HOUSING

1шт.

36

935915R1

SHIM,33.02mm OD x 0.38mm Thk

.015"

8шт.

37

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

39

192528C1

OIL SEAL,42.85mm ID x 76.33mm OD x 8mm Thk

1шт.

40

191384C2

SHAFT

Output

1шт.

41

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

42

87301257

NUT,7/8"-14, GC

1шт.

43

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

44

416615A1

COVER

1шт.

45

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

1шт.

46

221-1344

COUPLING

1/4"x 1/8"

1шт.

47

221-1142

PIPE,Nipple, 1/4" NPT x 4 1/2"

1шт.

48

336513A1

DIPSTICK

Non-Vented

1шт.

49

122113A1

TUBE

1шт.

50

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

51

426559A1

HOSE

1шт.

52

426552A1

TUBE

1шт.

Выбрано товаров: 60
