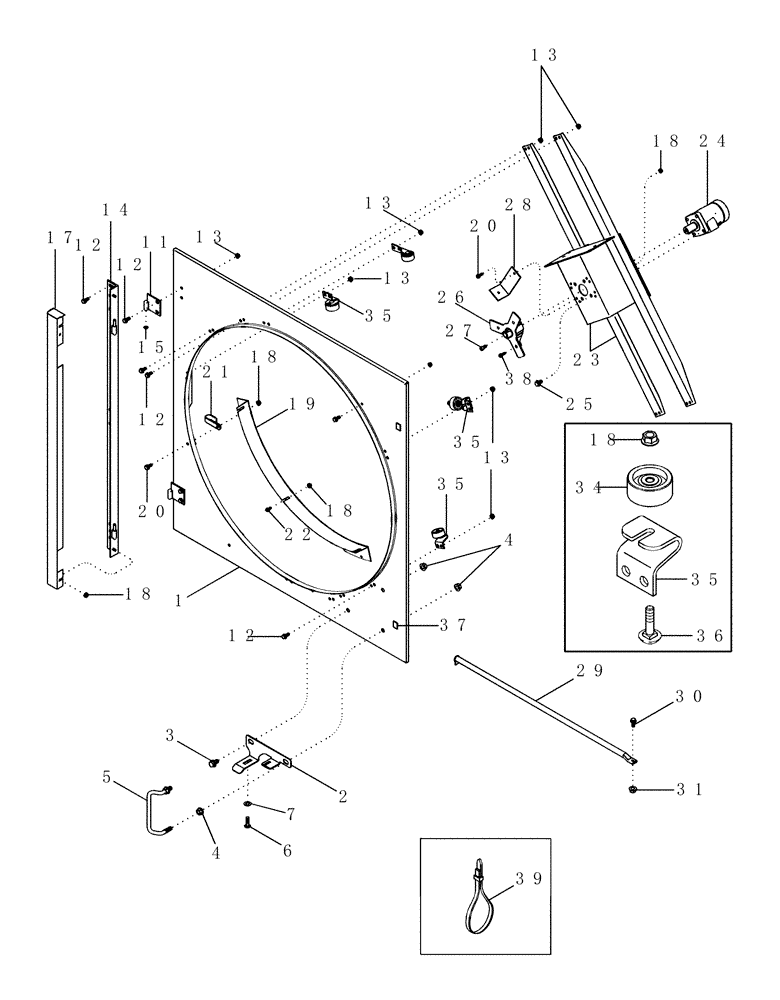

Запчасти Case IH 2388 (02-09) - PLASTIC DOOR ASSY - ROTARY AIR SCREEN - ASN HAJ0295001 (01) - ENGINE

1

87311540

DOOR

Cooler Access

1шт.

2

87413881

GUIDE

Door Latch

1шт.

3

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5шт.

5

1329715C1

HANDLE

1шт.

6

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

7

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

1шт.

11

87417094

HINGE

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

36шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

33шт.

14

87425804

HINGE

1шт.

15

86985597

WASHER,8.1mm ID x 13.5mm OD x 2mm Thk

Special

2шт.

17

87425802

COVER

Door Hinge, Shown

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

22-23шт.

19

87413896

BRACKET

Blockoff Assy

1шт.

20

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

5 - 6шт.

21

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

22

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

23

87413830

SUPPORT

1шт.

24

435624A1

HYDRAULIC MOTOR

Rotary Screen

1шт.

See Figure 08-23, Ref. 1

1шт.

435624A1R

REMAN-HYD MOTOR

2388 (NA) BTW HAJ292001 & HAJ300000, ASN HAJ0295001 (10/04-)

1шт.

435624A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

25

87021006

BOLT,M10 x 26.4mm, Cl 10.9

4шт.

26

412506A1

HUB

1шт.

27

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

1шт.

28

87409347

SUPPORT

Inner Baffle

1шт.

29

87413898

SUPPORT

1шт.

30

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

31

231-4144

NUT,1/4"-20, GB

1шт.

34

87408568

BALL BEARING,44.45mm OD

Roller

4шт.

35

444034A2

SUPPORT

Roller

4шт.

36

411-416

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 2

4шт.

37

86984222

PAD

2шт.

39

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" Tie

1шт.

40

1327979C1

MOLDING

Cut 152 mm (6") from 196707C1

1шт.
