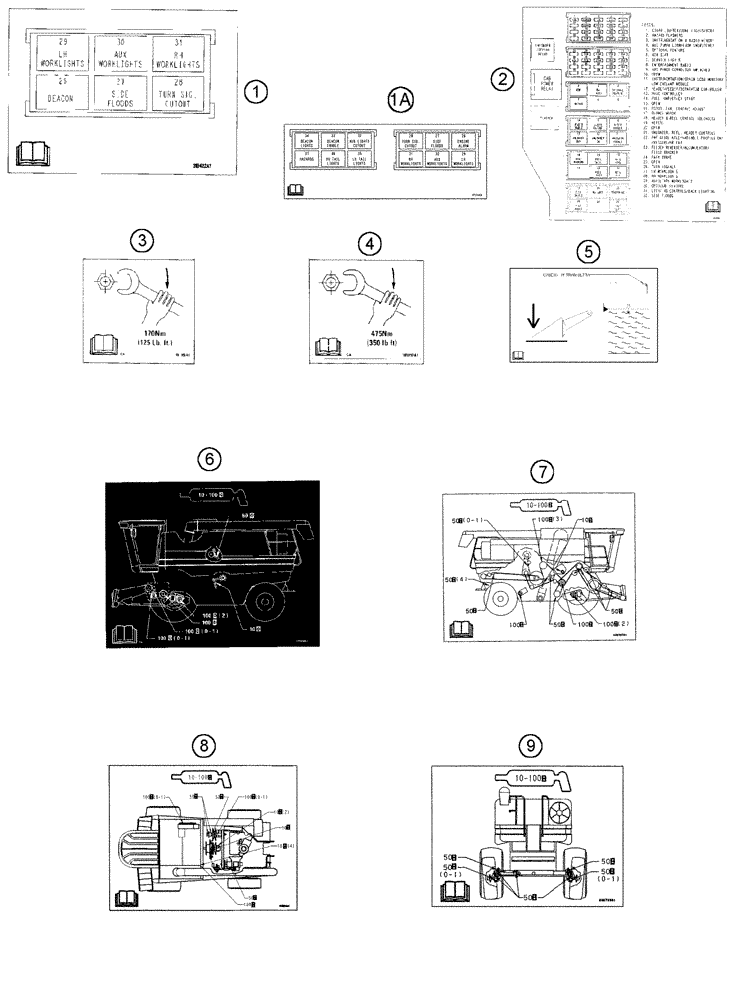

Запчасти Case IH 2388 (09H-20) - DECALS - INFORMATION DECALS WITH READ OPERATORS MANUAL SYMBOL (12) - CHASSIS

1

319422A1

DECAL

Upper Relay, English, Serial Range: -HAJ0295001

1шт.

1

319423A1

DECAL

Upper Relay, French, Serial Range: -HAJ0295001

1шт.

1

319424A1

DECAL

Upper Relay, Spanish, Serial Range: -HAJ0295001

1шт.

1

319426A1

DECAL

Upper Relay, Portuguese/Brazil, Serial Range: -HAJ0295001

1шт.

1

319425A1

DECAL

Upper Relay, Europe/Russian, Serial Range: -HAJ0295001

1шт.

1a

87310415

DECAL

Upper Relay, European, Start Serial: HAJ0295001

1шт.

1a

87310416

DECAL

Upper Relay, English, Start Serial: HAJ0295001

1шт.

1a

87310417

DECAL

Upper Relay, French, Start Serial: HAJ0295001

1шт.

1a

87310418

DECAL

Upper Relay, Spanish, Start Serial: HAJ0295001

1шт.

1a

87310419

DECAL

Upper Relay, Non-Text North America Only, Start Serial: HAJ0295001

1шт.

1a

87310420

DECAL

Upper Relay, Portuquese/Brazil, Start Serial: HAJ0295001

1шт.

2

392896A1

DECAL

Lower Fuse and Relay, English, Use with 388671A3, Not Illustrated, Serial Range: -HAJ0295001

1шт.

2

392897A1

DECAL

Lower Fuse and Relay, French, Use with 388671A3, Not Illustrated, Serial Range: -HAJ0295001

1шт.

2

392901A1

DECAL

Lower Fuse and Relay, Spanish, Use with 388671A3, Not Illustrated, Serial Range: -HAJ0295001

1шт.

2

392899A1

DECAL

Lower Fuse and Relay, Portuguese/Brazil, Use with 388671A3, Not Illustrated, Serial Range: -HAJ0295001

1шт.

2

392898A1

DECAL

Lower Fuse and Relay, Europe/Russian, Not Illustrated, Serial Range: -HAJ0295001

1шт.

2

87308557

DECAL

Lower Fuse and Relay, English, Start Serial: HAJ0295001

1шт.

2

87310263

DECAL

Lower Fuse and Relay, French, Start Serial: HAJ0295001

1шт.

2

87310265

DECAL

Lower Fuse and Relay, Spanish, Start Serial: HAJ0295001

1шт.

2

87308558

DECAL

Lower Fuse and Relay, Non-Text North America Only, Start Serial: HAJ0295001

1шт.

2

87310266

DECAL Lower Fuse and Relay, Portuguese/Brazil, Start Serial: HAJ0295001

1шт.

2

87309149

DECAL

Lower Fuse and Relay, Non Text Europe Only, Start Serial: HAJ0295001

1шт.

3

181992A1

DECAL

Without Power Guide Axle System

2шт.

4

181917A2

DECAL

With Power Guide Axle System

2шт.

5

401533A1

DECAL

Hydraulic Oil Level

1шт.

6

179620A2

DECAL

Lubrication Chart, LH

1шт.

7

435797A1

DECAL

Lubrication Chart, RH

1шт.

8

435798A1

DECAL

Lubrication Chart, Upper

1шт.

9

435799A1

DECAL

Inclined Delivery Auger Elevator

1шт.
