Запчасти Case IH 2388 (09H-15) - PLATFORM SUPPORT - LADDER PIVOT (12) - CHASSIS

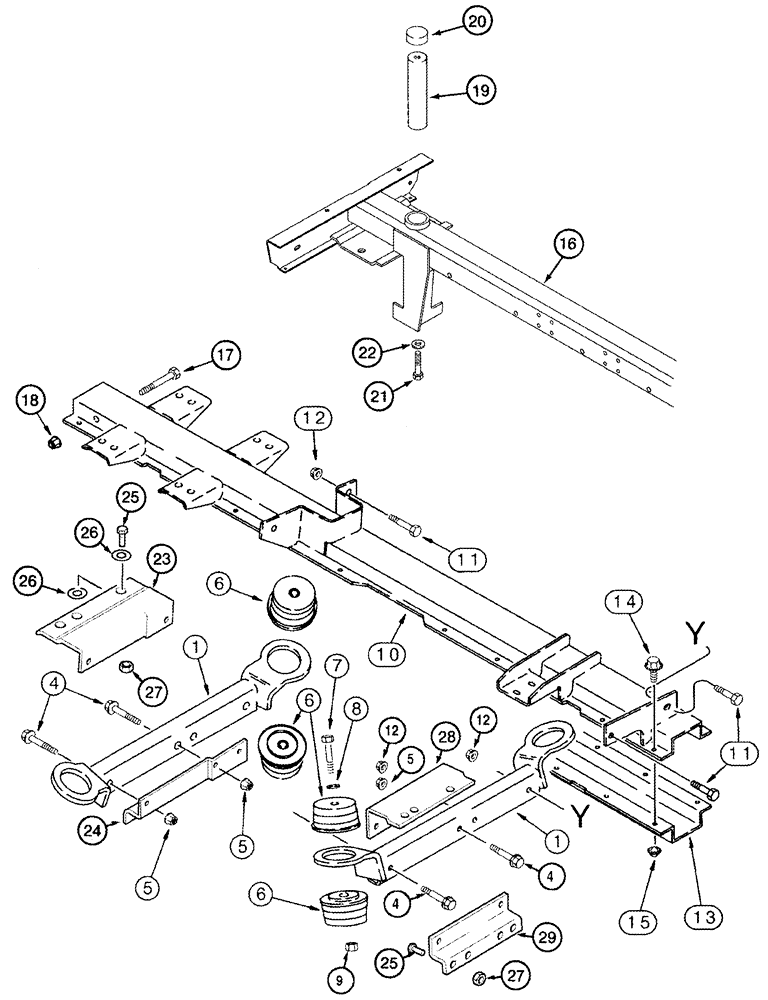

Схема запчастей Case IH 2388 - (09H-15) - PLATFORM SUPPORT - LADDER PIVOT (12) - CHASSIS
10
26
1
5
16
15
13
27
24
19
4
6
22
27
21
28
12
5
6
1
4
20
12
9
4
23
26
18
11
8
6
29
14
5
25
7
17
12
25
11

Артикул

Название

Примечание

Количество

1

112052A1

SUPPORT

2шт.

4

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

4шт.

5

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

4шт.

6

123566A1

ISOLATOR

8шт.

7

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

4шт.

8

CASD35009

WASHER,16.67mm ID x 63.5mm OD

4шт.

9

232-41110

NUT,5/8"-11, GC

4шт.

10

143520A2

SUPPORT

LH

1шт.

11

857-12080

BOLT,Hvy Hex, M12 x 80mm, Cl 10.9

3шт.

12

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

3шт.

13

182648A1

SUPPORT

LH

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

23шт.

15

231-5146

FLANGE NUT,3/8"-16

23шт.

16

324547A1

BEAM

LH, Includes 16A

1шт.

16a

191129A1

WARNING DECAL

Not Illustrated

1шт.

See Figure 09H-19, Ref. 13

1шт.

17

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

18

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

19

320946A1

PIN,50.81mm OD x 311.2mm L

1шт.

20

324464A1

PLUG

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

22

495-21044

WASHER,3/8"

1шт.

23

236272A3

BRACKET

LH, Upper, Serial Range: -HAJ0295001

1шт.

23

87378783

BRACKET

LH, Upper, Start Serial: HAJ0295001

1шт.

24

233243A3

SUPPORT

LH, Lower, Serial Range: -HAJ0295001

1шт.

24

87379085

BRACKET

LH, Lower, Start Serial: HAJ0295001

1шт.

25

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

25

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

26

496-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

27

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

10шт.

28

236274A2

BRACKET

RH, Upper, Serial Range: -HAJ0295001

1шт.

28

87378782

BRACKET

RH, Upper, Start Serial: HAJ0295001

1шт.

29

233246A3

SUPPORT

RH, Lower, Serial Range: -HAJ0295001

1шт.

29

87379086

SUPPORT

RH, Lower, Start Serial: HAJ0295001

1шт.

Выбрано товаров: 34
