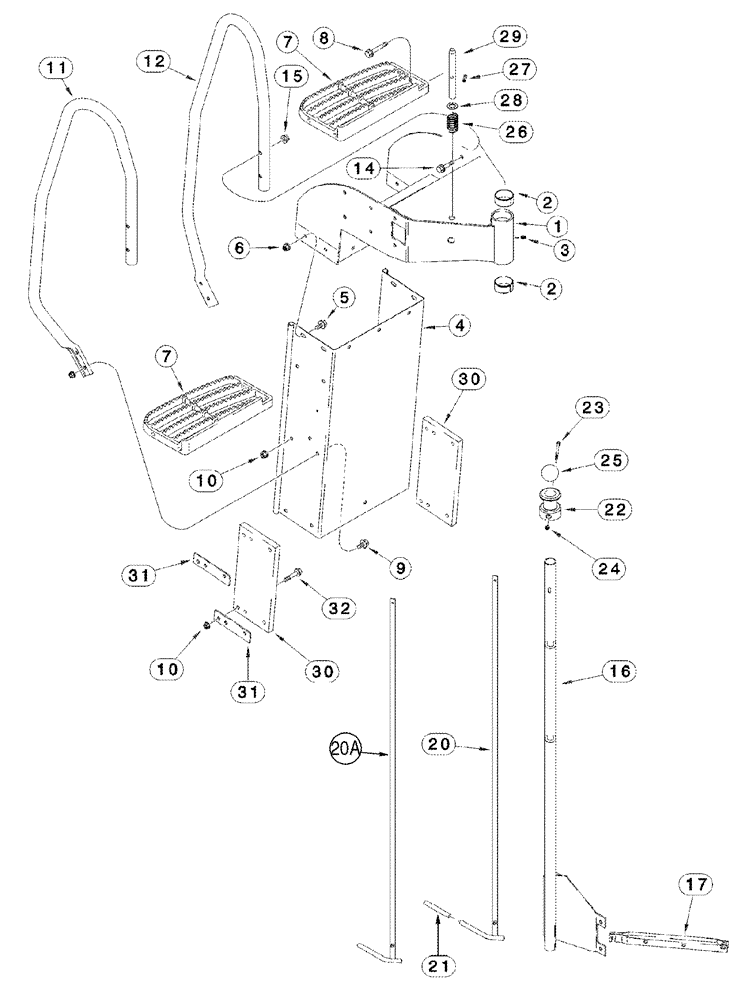

Запчасти Case IH 2388 (09H-13) - LADDER, OPERATORS (12) - CHASSIS

1

87301166

SUPPORT

Includes 2, 3

1шт.

2

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

2шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

87301175

CHANNEL

Ladder, Rear

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

7шт.

6

231-5146

FLANGE NUT,3/8"-16

7шт.

7

87301185

STEP

5шт.

8

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

2шт.

9

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

16шт.

10

231-5146

FLANGE NUT,3/8"-16

16шт.

10

231-5346

FLANGE NUT,Flg, 3/8"-16

3шт.

11

320924A1

HANDRAIL

RH

1шт.

12

320925A1

HANDRAIL

LH

1шт.

14

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

10шт.

15

231-5346

FLANGE NUT,Flg, 3/8"-16

10шт.

87301181

POST

Includes 16, 16A, If Used

1шт.

16

87301173

SUPPORT

1шт.

16a

349005A1

DECAL

Ladder Unlatch, Not Illustrated

1шт.

See Figure 09H-22, Ref. 15A

1шт.

17

320916A3

LEVER

Latch, Ladder

1шт.

20a

364437A1

LATCH

If Used

1шт.

21

324455A1

PROTECTOR

Cap

1шт.

22

349015A1

KNOB

Ladder Latch

1шт.

23

840-1660

SCREW,Pan HD, M6 x 60mm, Cl 4.8

1шт.

24

832-10406

NUT,M6 x 1, Cl 8

1шт.

25

349014A1

KNOB

Use Loctite No. 425, See Below 35

1шт.

26

338153A1

SPRING

1шт.

27

38-32024

PIN,5/16" x 1 1/2", Coiled

1шт.

28

495-81039

WASHER,25/32" x 1 1/4" x .120"

1шт.

29

320917A1

PIN,19.05mm OD x 176.25mm L

176.25 mm Long

1шт.

30

87301176

SUPPORT,150mm W x 325mm L

Ladder Bottom Step

2шт.

31

87301177

PLATE

4шт.

32

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

3шт.

32

121-437

STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 1.50"

1шт.

35

REF

INSTRUCTION

Adhesive, Loctite 425, Purchase Locally

1шт.
