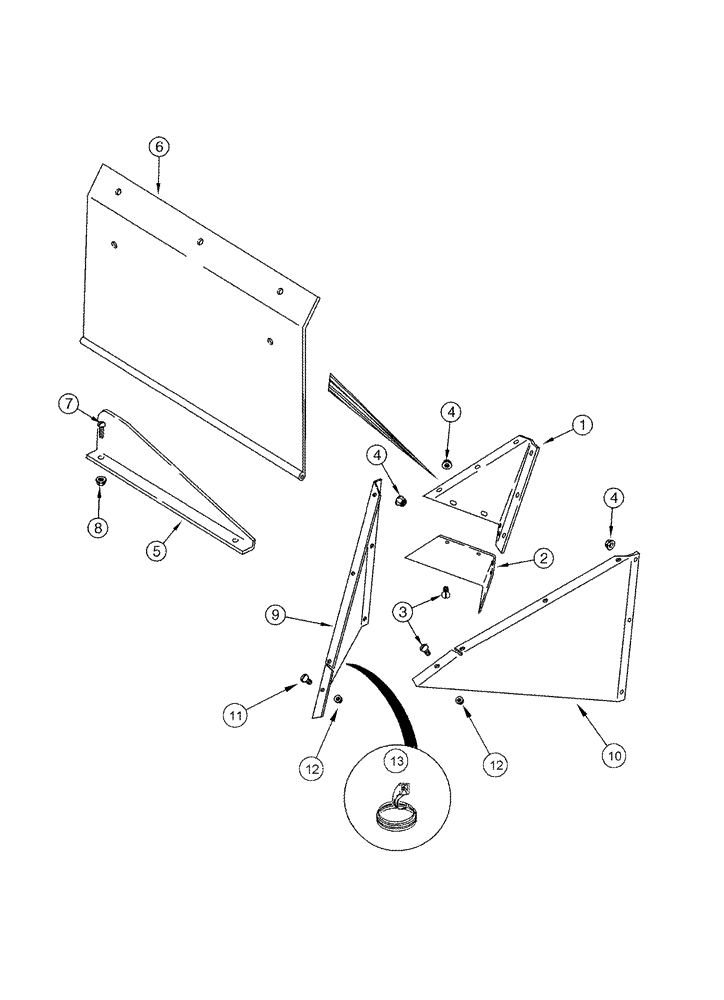

Запчасти Case IH 2388 (09H-09) - DEFLECTORS - SUPPORTS (12) - CHASSIS

1

1319485C1

DEFLECTOR

Rear, Hood

1шт.

With Straw Chopper

1шт.

2

1321019C1

DEFLECTOR

Guard

1шт.

With Straw Chopper

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

5

115497A1

DEFLECTOR

Rotor, Discharge

1шт.

With Straw and Chaff Spreader

1шт.

6

109991A3

DEFLECTOR

Rear, Hood

1шт.

With Straw and Chaff Spreader

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

10шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

9

426762A1

SUPPORT

LH

1шт.

10

426763A1

SUPPORT

RH

1шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

10шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

13

1545944C1

SEAL

Cut 127 mm (5") from 1330108CX

1шт.
