Запчасти Case IH 2388 (09H-05) - SEPARATOR - HOOD (12) - CHASSIS

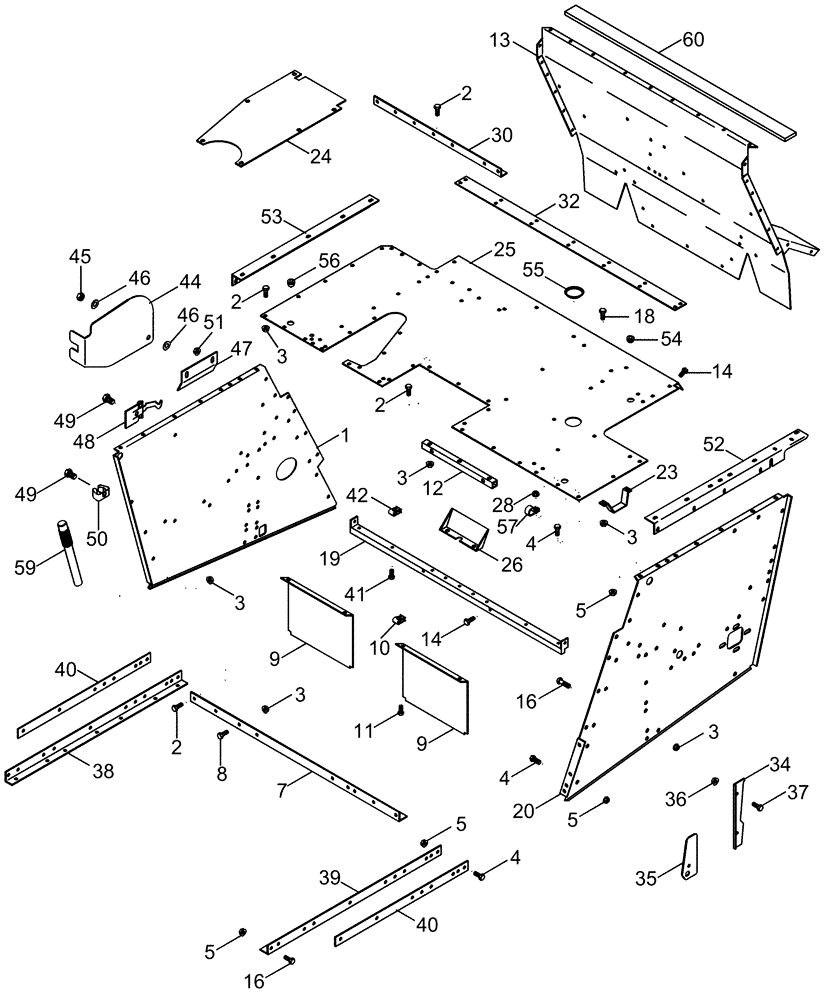

Схема запчастей Case IH 2388 - (09H-05) - SEPARATOR - HOOD (12) - CHASSIS
8
53
28
23
3
52
54
36
47
5
41
46
3
5
4
11
49
3
10
48
46
59
19
60
4
24
44
2
5
14
13
9
56
5
49
50
42
38
16
34
7
4
16
30
40
2
2
37
35
2
14
20
3
57
3
26
3
45
51
39
32
18
55
1
40
12
25
9

Артикул

Название

Примечание

Количество

1

418679A1

SHEET

LH, Includes Decals 144388A1 & 179620A2, Serial Range: -HAJ0295001

1шт.

See Figure(s) 09H-19, Ref. 6; 09H-20, Ref. 6

1шт.

1

87344263

SHEET

LH, Includes Decals 144388A1 & 179620A2, Start Serial: HAJ0295001

1шт.

See Figure(s) 09H-19, Ref. 6; 09H-20, Ref. 6

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

69шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

87шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

13шт.

5

231-5146

FLANGE NUT,3/8"-16

21шт.

7

192304C2

RAIL

Rear

1шт.

8

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

9

441739A1

SUPPORT

Rear, Includes Decals 144370A1 & 435799A1

2шт.

See Figure(s) 09H-19, Ref. 1; 09H-20, Ref. 9

1шт.

10

488837C1

SPRING NUT

5/16"

14шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

13шт.

12

186971C1

ANGLE

Rear

1шт.

13

364626A3

SUPPORT

Fuel Tank

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

17

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

5/16" x 13/16"

9шт.

17

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

18

488837C1

SPRING NUT

5/16"

16шт.

19

358622A1

SUPPORT

1шт.

20

412623A1

SHEET

RH, Serial Range: -HAJ0295001

1шт.

20

87362289

SHEET

RH, Start Serial: HAJ0295001

1шт.

23

380043A1

STOP

Fuel Tank

2шт.

24

441454A1

COVER

Engine

1шт.

25

445910A5

SHEET

Rear Deck, Serial Range: -HAJ0295001

1шт.

25

87310986

SHEET

Rear Deck, Start Serial: HAJ0295001

1шт.

26

364781A1

RETAINER

Fuel Tank

1шт.

131-137

SPRING NUT,Ret, 5/16"-18

4шт.

30

279682A1

SUPPORT

Rear Deck

1шт.

32

87412923

SHEET

Rear Deck

1шт.

33

280059A1

SEAL

Not Illustrated

1шт.

34

418095A1

SHEET

Seal

1шт.

35

418096A2

SHEET

Seal

1шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

37

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

38

412620A1

SUPPORT

Angle, LH Separator Hood

1шт.

39

412622A1

SUPPORT

Angle, RH Separator Hood

1шт.

40

418632A1

STRAP

Spacer

2шт.

41

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

8шт.

42

410009A1

SPRING NUT

5/16", U-type

8шт.

43

1302758C1

PLUG

Clean Out Hole, Not Illustrated

1шт.

44

87314912

SHIELD

Sieve Lamp

1шт.

45

231-1444

NUT,1/4"-20, GB

1шт.

46

87308449

WASHER

1/4" x 1/2"

2шт.

47

87314913

RETAINER

1шт.

48

167800C1

CLIP

Door Retainer

1шт.

49

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

3шт.

50

106744A1

CLIP

Sieve Handle

2шт.

51

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

52

87415390

SUPPORT

RH Rear Trim Panel

1шт.

53

183368A2

SUPPORT

LH Rear Trim

1шт.

54

195806C1

GROMMET

1шт.

55

87000778

PLUG,89mm OD

1шт.

56

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

1"

1шт.

57

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

58

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

59

106743A1

HANDLE

Extension Assy

1шт.

60

280059A1

SEAL

Foam Tape

1шт.

Выбрано товаров: 60
