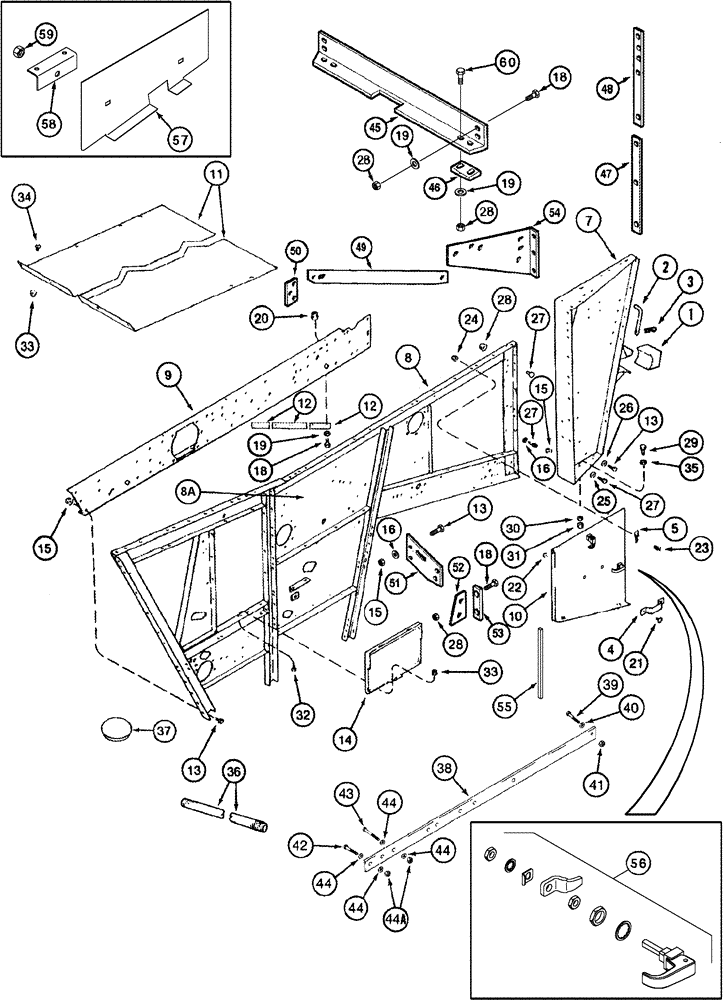

Запчасти Case IH 2388 (09H-04) - SEPARATOR - DOORS - RIGHT HAND (12) - CHASSIS

1

1989327C2

RETAINER

1шт.

1

1989327C3

RETAINER

12 Row Ready

1шт.

2

418694A1

ROD,25.4mm OD

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

160638C2

HANDLE

1шт.

5

86991204

LATCH

2шт.

7

398473A2

POST

RH, Serial Range: -HAJ0295001

1шт.

7

87372904

POST

RH, Start Serial: HAJ0295001

1шт.

8

443250A1

SIDE PLATE

RH, Includes 8A

1шт.

8a

192626C3

SHEET

RH, Upper Center

1шт.

9

359827A2

SILL

RH, Main, Serial Range: -HAJ0295001

1шт.

9

87335705

SILL

RH, Main, Start Serial: HAJ0295001

1шт.

10

86991350

DOOR

RH, Front

1шт.

11

238463A6

SHEET

1шт.

12

186018C1

STRAP

1шт.

13

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

21шт.

14

87301105

DOOR

1шт.

15

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

23шт.

16

495-21044

WASHER,3/8"

3шт.

17

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Not Illustrated

1шт.

18

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

14шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

44шт.

20

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2", 8

2шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

23

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

24

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

25

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

4шт.

26

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

13шт.

27

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

10шт.

28

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

21шт.

29

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

30

492-11062

BEARING WASHER,5/8"

2шт.

31

425-1010

NUT,5/8"-11, G5

2шт.

32

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

33

231-5146

FLANGE NUT,3/8"-16

3шт.

34

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

35

493-21065

LOCK WASHER,Int Tooth, 5/8"

2шт.

36

1319395C1

CONDUIT

12-1/8", Cut from 1262114C1

1шт.

37

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

38

198572A1

STRAP

12 Row Ready

1шт.

39

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

12 Row Ready

1шт.

40

496-41041

WASHER,13/32" x 1 1/8" x .134"

12 Row Ready

2шт.

41

429-106

NUT,3/8"-16, G8

12 Row Ready

1шт.

42

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

12 Row Ready

6шт.

43

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

12 Row Ready

2шт.

44

496-21053

WASHER,17/32" x 1 1/16" x .134"

12 Row Ready

16шт.

44a

429-108

NUT,1/2"-13, G8

12 Row Ready

8шт.

45

237623A1

SUPPORT

Front

1шт.

46

236509A1

SPACER

1шт.

47

236935A1

PLATE

Lower RH

1шт.

48

236934A1

PLATE

Upper RH

1шт.

49

236727A1

PLATE

RH

1шт.

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

1шт.

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

1шт.

50

236728A1

PLATE

1шт.

51

238987A1

PLATE

LH Front

1шт.

52

239289A1

SPACER

LH

1шт.

53

239001A1

PLATE

1шт.

54

236317A1

SUPPORT

RH

1шт.

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

55

86991662

DOOR SEAL

362 mm (14-1/4"), Cut from 1971350C1

1шт.

56

86991204

LATCH

2шт.

57

87422278

SHEET

Air Flow Restriction

1шт.

58

86985754

SUPPORT

2шт.

59

131-137

SPRING NUT,Ret, 5/16"-18

2шт.

60

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.
