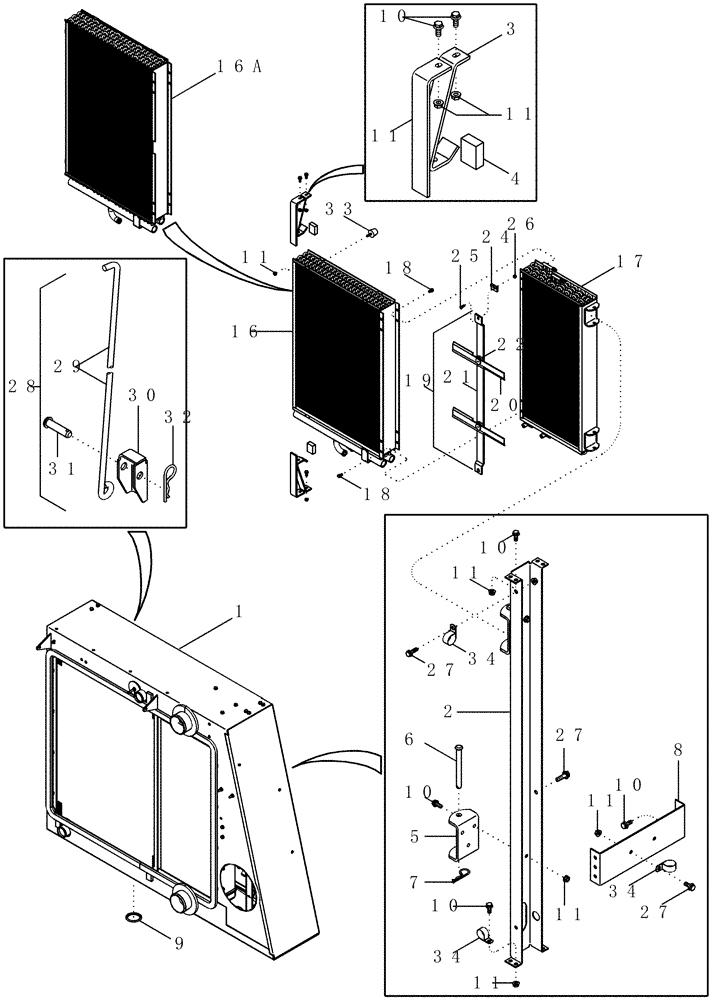

Запчасти Case IH 2388 (02-05) - COOLER BOX ASSY (01) - ENGINE

1

87423406

BOX

Cooler, Serial Range: -HAJ0295001

1шт.

1

87343320

BOX

Cooler, Start Serial: HAJ0295001

1шт.

2

87429529

BRACKET

1шт.

3

87423364

SUPPORT

2шт.

4

187884C1

SEALING STRIP,50mm L

51 mm (2"), Cut from 187885C1

2шт.

5

87429534

BRACKET

2шт.

6

439-5880

HEADED PIN,1/2" x 5"

2шт.

7

480523R1

HAIR PIN COTTER

2шт.

8

86984095

BRACKET

Cross Brace

1шт.

9

87000778

PLUG,89mm OD

Clean Out

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

20шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

15

353-410

PLUG,Dome, .875" hole, Nylon

2шт.

16

444921A3

OIL COOLER

1шт.

Corn, Grain and Rice Combine

1шт.

16a

446343A3

OIL COOLER

Oil

1шт.

Rice Combine

1шт.

17

444922A3

COOLER

Fuel/Condenser

1шт.

Corn, Grain and Rice Combine

1шт.

18

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

8шт.

19

87412207

WIPER

Assy, Charge Air Cooler, Includes 20 - 23, Serial Range: -HAJ0295001

1шт.

19

87341294

WIPER

Assy, Charge Air Cooler, Includes 20 - 23, Start Serial: HAJ0295001

1шт.

20

NSS

NOT SOLD SEPARAT

Wiper with Pin Assy

2шт.

21

87412206

SUPPORT

, Serial Range: -HAJ0295001

1шт.

21

NSS

NOT SOLD SEPARAT

SUPPORT, Start Serial: HAJ0295001

1шт.

22

87302841

BALL BEARING,17mm ID x 40mm OD x 12mm W

, Serial Range: -HAJ0295001

2шт.

22

308803

BALL BEARING

15mm ID x 35mm OD x 11mm W, Start Serial: HAJ0295001

2шт.

23

282857A1

DECAL

Connector Cover, Not Illustrated

2шт.

24

87408871

CLAMP

2шт.

25

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

26

231-5345

FLANGE NUT,Flg, 5/16"-18

2шт.

27

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

28

87413776

SUPPORT

Oil Cooler Prop, Includes 29 - 32

1шт.

29

87413775

ROD

1шт.

30

87413774

SUPPORT

1шт.

31

439-1828

HEADED PIN,1/2" x 1 3/4"

1шт.

33

87109195

BUMPER,5/16" - 18, 38mm OD

2шт.

34

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

3шт.
