Запчасти Case IH 2388 (05-15) - HYDRAULICS - MOTOR, DRIVE - POWER GUIDE AXLE (11) - TRACKS/STEERING

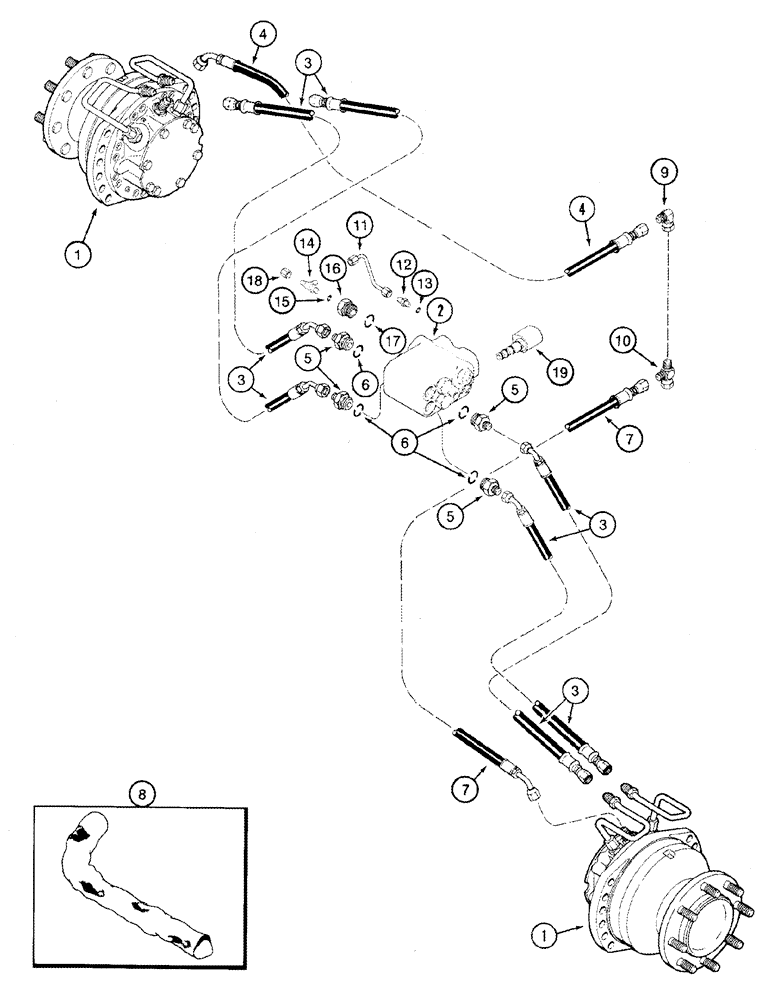

Схема запчастей Case IH 2388 - (05-15) - HYDRAULICS - MOTOR, DRIVE - POWER GUIDE AXLE (11) - TRACKS/STEERING
19
16
7
17
5
12
14
1
6
2
3
9
4
3
7
10
1
4
5
5
18
15
6
3
8
3
11
13

Артикул

Название

Примечание

Количество

1

87300716

MOTOR, HYDRAULIC

Wheel Drive, 8 Bolt

2шт.

Corn and Grain Combine

1шт.

See Figure 05-14

1шт.

87300716R

REMAN-HYDROSTAT MOTO

2388 - CASE IH AXIAL-FLOW COMBINE BTW HAJ292001 & HAJ300000 - 10/04,

2шт.

87300716C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

1

87300717

MOTOR, HYDRAULIC

Wheel Drive, 10 Bolt

2шт.

See Figure 05-14

1шт.

Rice Combine

1шт.

2

1978000C1

VALVE

1шт.

Corn and Grain Combine

1шт.

See Figure 05-23

1шт.

3

1968995C1

FLEXIBLE HOSE,12.7mm ID x 1752.6mm L, SAE 100R10

1753 mm (69-1/8"), Wheel Motor Drain Pressure

4шт.

4

1968996C1

FLEXIBLE HOSE

2007 mm (79-1/8"), Wheel Motor Drain Pressure

1шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Includes 6

4шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

1970135C1

HOSE

Drain

1шт.

8

1970108C1

PROTECTIVE COVER

Sleeve 60 ID x 1219 mm

2шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

10

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

11

1970140C1

TUBE,4.78 mm ID

Charge Pressure

1шт.

12

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 13

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Tee, 1/4 x 1/4 x 1/4, Includes 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

1970176C1

PLUG

Includes 17, Includes with 1978000C1, 1347194C1

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

218-752

CAP,37 Degree, 7/16"-20

1шт.

19

REF

INSTRUCTION

Solenoid Assy, Charge Pressure

1шт.

See Figure 05-23, Ref. 60-64

1шт.

Выбрано товаров: 29
