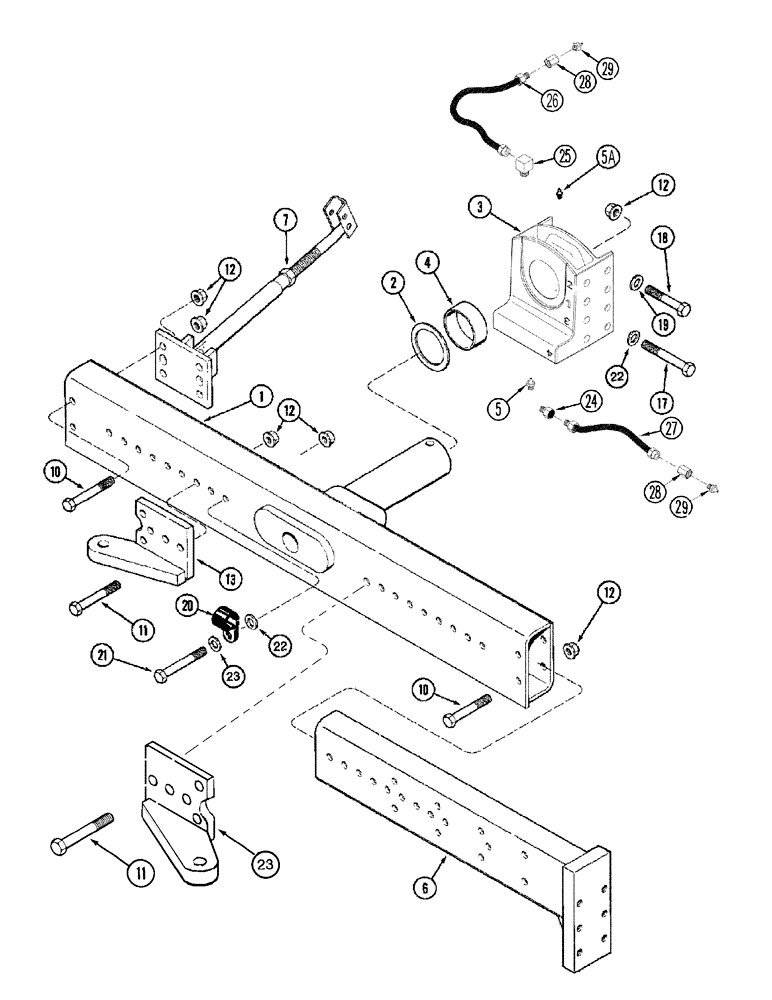

Запчасти Case IH 2388 (05-12) - AXLE, STEERING - EXTENSIONS - POWER GUIDE AXLE - DUAL STEERING CYLINDER (11) - TRACKS/STEERING

1

413205A1

AXLE

Adjustable, Serial Range: 108-144"

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

4шт.

3

386235A2

SUPPORT

Axle Pivot, Includes 4

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

2шт.

5

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

5a

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

6

1968992C1

AXLE

Extension, Serial Range: 108-144"

2шт.

7

REF

INSTRUCTION

Support Assy

2шт.

See Figure 05-10, Ref. 16-24

1шт.

10

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

10шт.

11

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

8шт.

12

87301494

FLANGE NUT,Flg, USR, 3/4"-10, G8

1шт.

13

1968993C1

SUPPORT

1шт.

17

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

18

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

6шт.

19

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

5шт.

20

406800A1

CLAMP

2шт.

21

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.

22

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

3шт.

23

398125A1

SUPPORT

1шт.

24

219-418

ADAPTER,1/4"-1/8 NPTF

Hose

1шт.

25

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1шт.

26

428285A1

FLEXIBLE HOSE

Grease, 1186 mm (46-3/4")

1шт.

27

428853A1

FLEXIBLE HOSE

Grease, 1282 mm (50")

1шт.

28

F53473

LOCK NUT,1/8-27 NPSM

1/8"

2шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

30

236028A2

SHIM,127mm OD x 0.9mm Thk

Shim, Axle, Not Illustrated

1шт.
