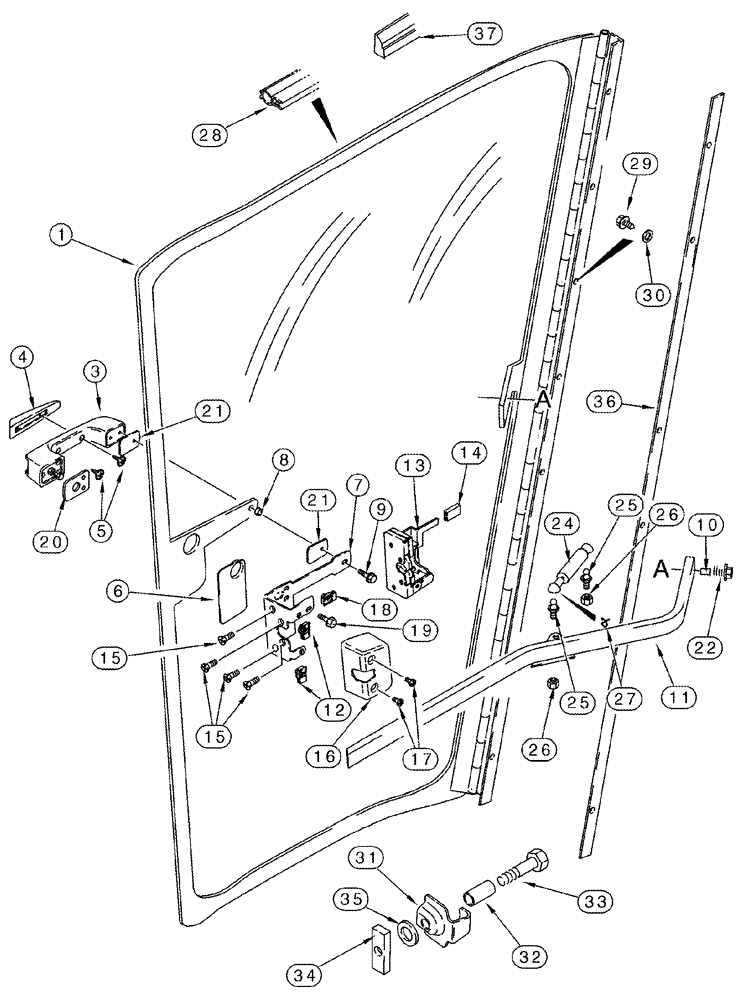

Запчасти Case IH 2388 (09G-02) - CAB - DOOR ASSY, LEFT HAND (10) - CAB & AIR CONDITIONING

259688A2

DOOR

LH, Includes 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

Door, Includes Hinge

1шт.

3

117711A1

HANDLE

1шт.

4

176022A2

BUMPER

1шт.

5

177092A1

SELF-TAP SCREW

2шт.

6

123946A2

GASKET,1.6mm Thk

1шт.

7

123937A2

SUPPORT

1шт.

8

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

1шт.

9

303888A1

FLANGE BOLT

3шт.

10

175578C1

INSULATOR

1шт.

11

195649A1

HANDLE

1шт.

12

564791R1

SPRING NUT

1/4"

2шт.

13

117714A1

LATCH

1шт.

14

60-6423T1

CAP

1шт.

15

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

4шт.

16

127498A2

COVER

1шт.

17

140-111

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

2шт.

18

131-610

SPRING NUT,U, Ret, 1/4"-20

1шт.

19

458-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

20

194174A1

GASKET,3.2mm Thk

Large

1шт.

21

194175A1

GASKET,3.2mm Thk

Small

2шт.

22

458-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

24

144006A1

GAS STRUT,381mm Extended, 240mm Compressed

1шт.

25

1340345C1

BALL STUD

BALL PIN Includes 230-4215 Nut

2шт.

26

231-1445

NUT,5/16"-18, GB

2шт.

27

F44883

CLIP,DIN 71805 - S10

2шт.

28

234089A1

DOOR SEAL

4483 mm (176-1/2"), Door

1шт.

29

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

16шт.

30

495-31022

WASHER,#10

16шт.

31

117716A1

PROTECTOR

1шт.

32

117717A2

SPACER

1шт.

33

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

34

117718A1

PLATE

1шт.

35

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

1шт.

36

193316A1

SHIM

1шт.

37

232801A1

DOOR SEAL

1016 mm (40"), Door

1шт.

38

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

Not Illustrated

2шт.
