Запчасти Case IH 2388 (08-34) - HYDRAULICS - FEEDER REVERSER (07) - HYDRAULICS

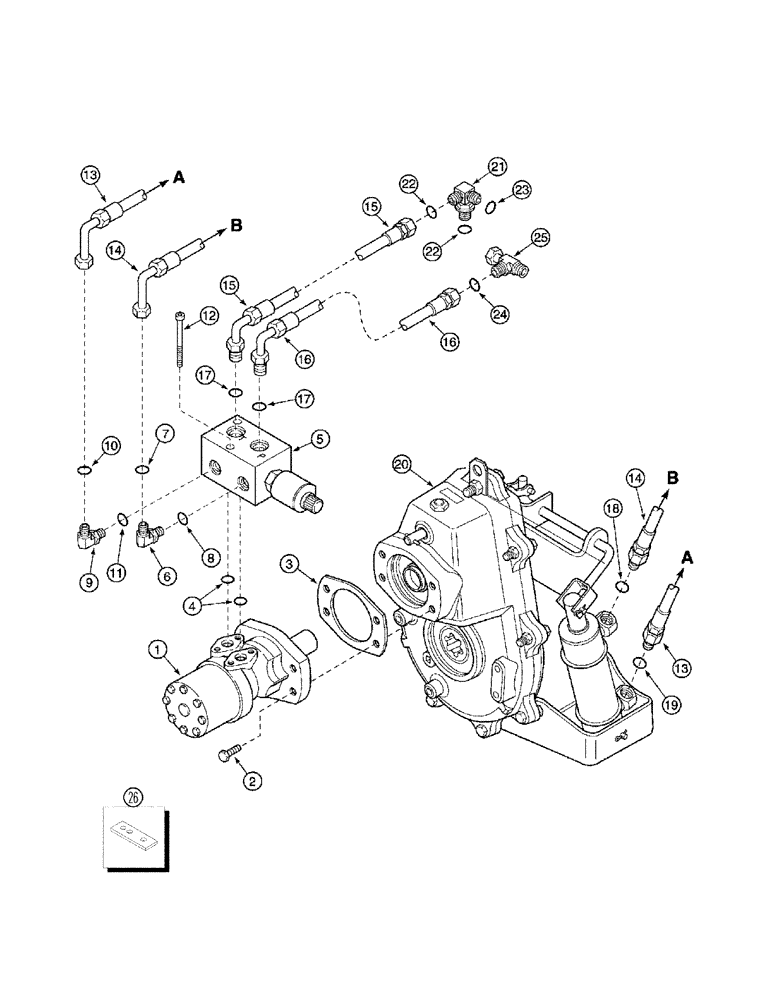

Схема запчастей Case IH 2388 - (08-34) - HYDRAULICS - FEEDER REVERSER (07) - HYDRAULICS
25
17
23
2
17
9
20
6
19
24
13
14
26
11
1b
14
12
15
8
22
10
1
15
13
16
22
3
7
5
21
4
16

Артикул

Название

Примечание

Количество

1

393903A1

MOTOR, HYDRAULIC,397CC

1шт.

See Figure 08-35

1шт.

2

87302570

12 PT SCREW,1/2" - 13 x 1 1/4"

4шт.

3

400998A1

GASKET,0.79mm Thk

1шт.

4

277634

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

2шт.

5

393904A1

VALVE

Feeder Reverser Motor

1шт.

See Figure 08-36

1шт.

6

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes 7, 8

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

238-6006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1шт.

9

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 10, 11

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

865-8085

HEX SOC SCREW,M8 x 85mm, Cl 8.8

2шт.

13

391969A1

FLEXIBLE HOSE,10mm ID x 750mm L

750 mm (29-1/2"), Extend

1шт.

14

391970A1

FLEXIBLE HOSE,10mm ID x 610mm L

610 mm (24"), Retract

1шт.

15

395853A2

FLEXIBLE HOSE

520 mm (20-1/2"), Return

1шт.

16

430394A1

FLEXIBLE HOSE

3050 mm (120"), Supply

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

401134A2

GEARBOX

1шт.

See Figure 09A-21

1шт.

21

395408A1

TEE

Includes 22, 23

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

25

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

1шт.

26

427273A1

SUPPORT

Clamp

1шт.

27

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Not Illustrated

1шт.

28

231-5146

FLANGE NUT,3/8"-16

Not Illustrated

1шт.

Выбрано товаров: 31
