Запчасти Case IH 2388 (05.100.03) - FILTER & CAPACITIES, 2388 ASN HAJ0292001 (00) - GENERAL

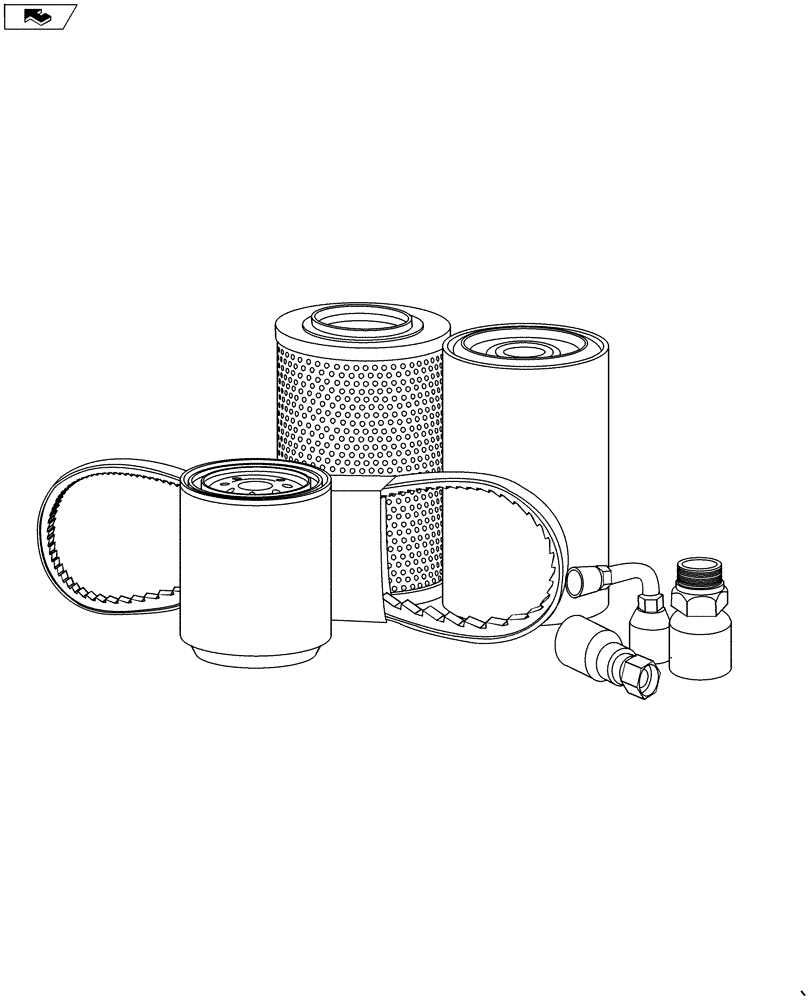

Схема запчастей Case IH 2388 - (05.100.03) - FILTER & CAPACITIES, 2388 ASN HAJ0292001 (00) - GENERAL
home

Артикул

Название

Примечание

Количество

1

J100304

FILTER

Coolant

1шт.

*

CNH XHD COOLANT

ANTIFREEZE

Coolant, 36-QT (34.1L)

1шт.

2

84229397

ENGINE OIL FILTER

Spin On

1шт.

*

NO. 1 SAE 15W40

OIL

Crankcase, W/O Filter, 20-QT (18.9L)

1шт.

*

NO. 1 SAE 15W40

OIL

Crankcase, W/ Filter, 22-QT (20.8L)

1шт.

3

86998333

AIR FILTER,Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc

Primary

1шт.

4

86998332

AIR FILTER,Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc

Secondary

1шт.

5

247752A1

CAB FILTER

Air

1шт.

6

120486A2

FILTER

Cab Recirculation

1шт.

7

294721A1

HYDRAULIC OIL FILTER

PTO

1шт.

8

A177605

HYDRAULIC OIL FILTER

Spin On

1шт.

*

HY-TRAN ULTRA

OIL

Hydraulic System, Hy-Tran Ultra, Reservoir Capacity, 10-Gal (37.9L)

1шт.

*

HY-TRAN ULTRA

OIL

Transmission, Rear Frame or Differential, Hy-Tran Ultra, 4.3-Gal (16.2L)

1шт.

9

84557099

FUEL FILTER

BSN HAJ0295000, User Friendly Version

1шт.

10

90-3941T1

SEPARATOR

SN HAJ0292001 & ASN, Water Separator Spin On

1шт.

*

HY-TRAN ULTRA

OIL

Power Take-Off, Housing, 14-QT (13.3L)

1шт.

*

HY-TRAN ULTRA

OIL

Wheel Ends, Sprocket or Final Drive, Each, 13-QT (12.3L)

1шт.

*

HY-TRAN ULTRA

OIL

Wheel Ends, Sprocket or Final Drive, Straw Chopper Gear Case, 3.3-QT (3.1L)

1шт.

*

135H EP 85W140

OIL

Wheel Ends, Sprocket or Final Drive, Rotor Gear Case, 5-QT (4.7L)

1шт.

*

135H EP 85W140

OIL

Wheel Ends, Sprocket or Final Drive, Lower Unloader Gear Case, 0.97-QT (0.89L)

1шт.

*

135H EP 85W140

OIL

Gear Box, Feeder & Cleaning Fan Gear Case, 6.75-QT (6.4L)

1шт.

Выбрано товаров: 21
