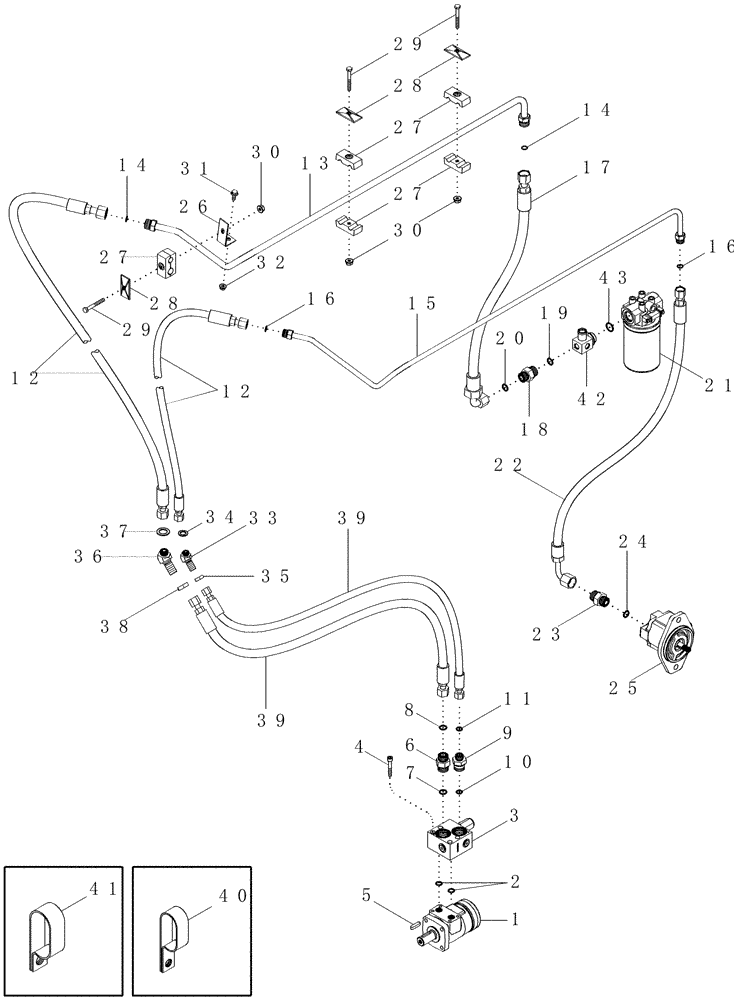

Запчасти Case IH 2388 (08-23) - HYDRAULICS - ROTARY AIR SCREEN CIRCUIT (07) - HYDRAULICS

1

435624A1

HYDRAULIC MOTOR

Rotary Air Screen

1шт.

435624A1R

REMAN-HYD MOTOR

2388 (NA) BTW HAJ292001 & HAJ300000 (10/04-)

1шт.

435624A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1a

1542724C1

SEAL KIT

1шт.

2

272344

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

3

86987869

VALVE PRESSURE RELIE

1шт.

See Figure 08-28

1шт.

4

864-8050

HEX SOC SCREW,M8 x 50mm, Cl 8.8

4шт.

5

906093R1

KEY,M8 x 7 x 32, Par

1шт.

6

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

16 mm fs tube OD, Incl 7, 8

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/8 ID x 1/16

1шт.

9

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

12 mm fs x 27 mm OR, Incl. 10, 11

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

87404065

HYDRAULIC HOSE

, Serial Range: Tube-Valve

2шт.

13

370261A2

HYD TUBE,1740.9, 327.3 mm Length

Return

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

15

370257A3

HYD TUBE

Supply Pressure

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

370263A1

FLEXIBLE HOSE

Tube to Filter, Return

1шт.

18

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 19, 20

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

REF

INSTRUCTION

Filter Assy

1шт.

22

370255A1

HOSE

, Serial Range: Pump-Tube

1шт.

23

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

REF

INSTRUCTION

Pump Hydraulic

1шт.

26

135355A1

SUPPORT TUBE,79, 40 mm Length

Center

1шт.

27

109619A1

CLAMP

3шт.

28

1347127C1

PLATE

Tube Clamp

3шт.

29

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

3шт.

30

231-5315

FLANGE NUT,Flg, 5/16"-18

3шт.

31

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

33

201-382

ELBOW,45 Degree, 13/16"-16 Blkhd, ORFS

1/2" Tube OD

1шт.

34

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

2шт.

35

201-903

TUBE NUT,Blkhd, 13/16"-16

1шт.

36

87017731

ELBOW,45 Degree, 1"-14 Blkhd, ORFS

45 deg, 5/8"

1шт.

37

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

2шт.

38

201-919

BHD LOCK NUT,1" - 14

5/8" OD Tube

1шт.

39

86987926

FLEXIBLE HOSE

2шт.

40

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

41

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

42

370228A1

FITTING,1 5/8"-12 ORB x 7/8"-14 x M31.75 Bead x 7/8"-14

90, Special, Incl. 43

1шт.

43

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.
