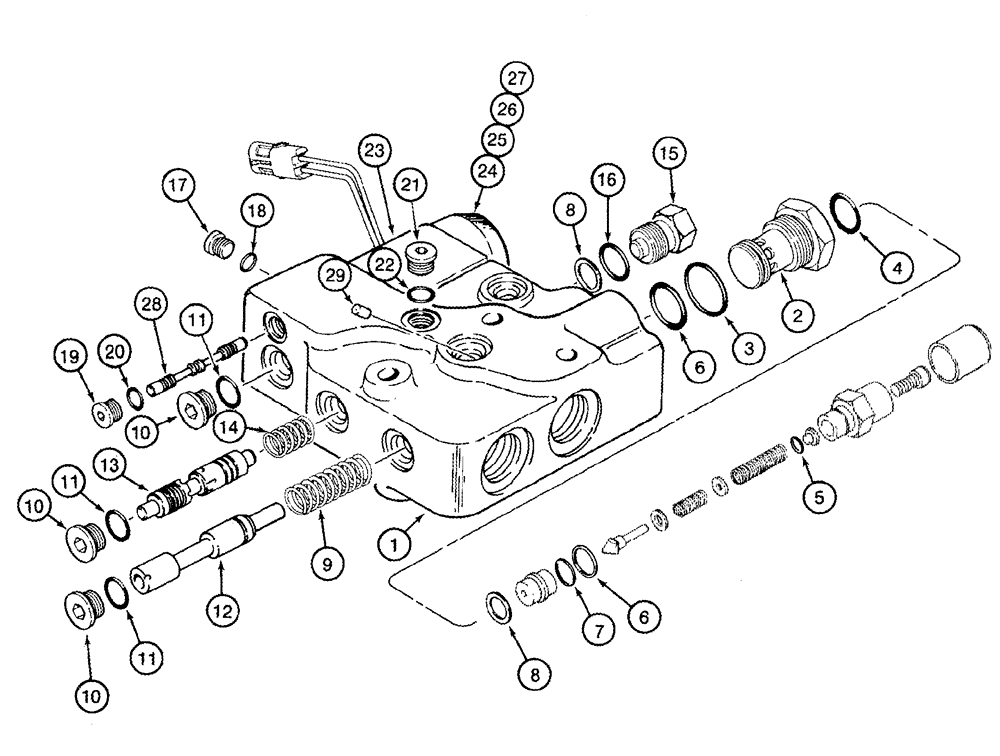

Запчасти Case IH 2388 (08-20) - VALVE ASSY - REEL DRIVE (07) - HYDRAULICS

114856A3

CONTROL VALVE

Includes 1 - 29, Reel Drive

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Order 114856A3

1шт.

190702A1

VALVE PRESSURE RELIE

Includes 2 - 7, Relief, Cartridge

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Relief, Order 190702A1

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

1шт.

6

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

1шт.

7

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

8

190696A1

SHIM KIT

2шт.

9

190695A1

SPRING

Pressure Regulating

1шт.

10

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 11

3шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

190697A1

SPOOL

Pressure Regulating

1шт.

13

190698A2

SPOOL

Flow Metering

1шт.

14

190699A1

SPRING

Flow Metering

1шт.

15

188110A1

PLUG

Includes 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

278548

PLUG,Hex, 7/16"-20 ORB

Incl 18

3шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

86632547

PLUG,Hex, 5/16"-24 ORB

Includes 20

4шт.

20

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

21

9625178

PLUG,9/16" - 18 ORB

Incl. 22

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

190700A2

SOLENOID

Without Diode, 12 Volt, DC

1шт.

24

188106A1

NUT

1шт.

25

188117A1

CARTRIDGE,72.25mm OAL

1шт.

26

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

27

188116A1

PIN,3.25mm OD x 39.93mm L

1шт.

28

188104A1

SPOOL

Pilot

1шт.

29

190694A1

PLUG

Orifice

1шт.
