Запчасти Case IH 2388 (08-15) - VALVE ASSY - CONTROL - HEADER LIFT WITH REEL FORE AND AFT AND FIELD TRACKER (07) - HYDRAULICS

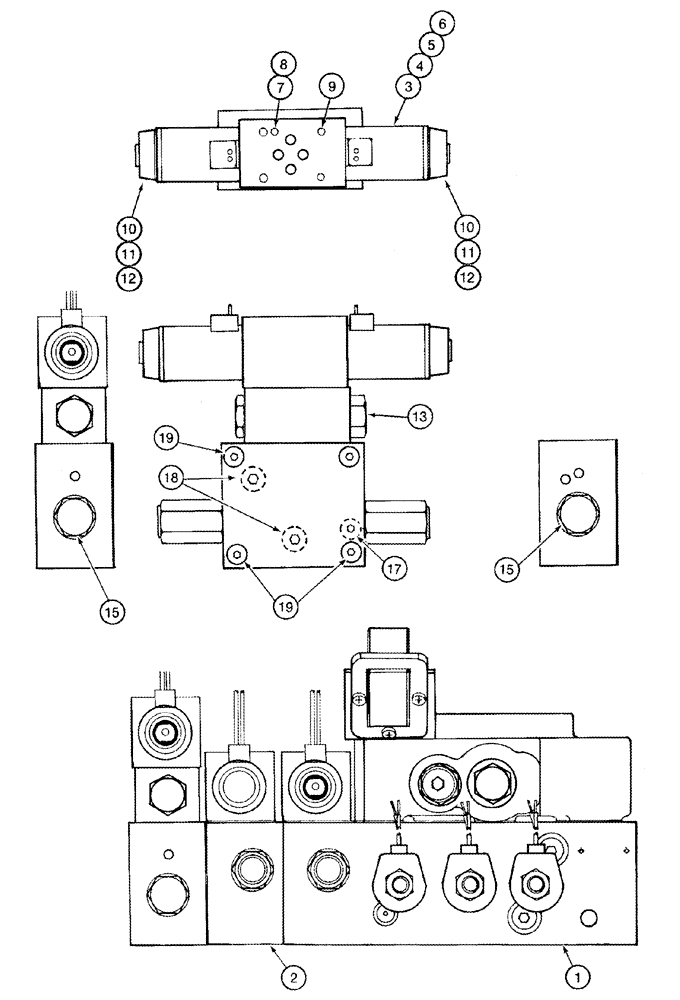

Схема запчастей Case IH 2388 - (08-15) - VALVE ASSY - CONTROL - HEADER LIFT WITH REEL FORE AND AFT AND FIELD TRACKER (07) - HYDRAULICS
17
5
7
19
19
12
8
15
9
15
13
4
2
12
1
10
18
11
11
3
10
6

Артикул

Название

Примечание

Количество

124567A3

VALVE, CONTROL

Multi Section Valve, Includes 1 - 20, Header Lift With Reel Fore and Aft and Field Tracker

1шт.

REF

INSTRUCTION

Body, One Piece Valve, Production Only, Service Body With Complete Valve Assy 124567A3 Above, Includes 3 - 20

1шт.

124567A3R

REMAN-HYD VALVE

Reman Multi Section Valve, Includes 1 - 20, Header Lift With Reel Fore and Aft and Field Tracker

1шт.

124567A3C

CORE-VALVE HYD

Core Return Number

1шт.

1

124565A3

VALVE, CONTROL

Header Lift

1шт.

See Figure(s) 08-09, 08-10, 08-11, 08-12, 08-14

1шт.

2

131153A2

CONTROL VALVE

Reel Fore And Aft

1шт.

See Figure 08-14

1шт.

114854A1

CONTROL VALVE

Includes 190984A1, Ref. 3 - 20, Field Tracker

1шт.

190984A1

VALVE

Includes 3 - 12, 4-Way, 3 Position, Stack

1шт.

3

196736A1

BODY

Solenoid

2шт.

4

196737A1

SPLIT PIN/SAFETY PIN

2шт.

5

196738A1

SPRING

2шт.

6

196739A1

WASHER

2шт.

7

196712A1

PLUG

Orifice .035"

1шт.

8

196713A1

PLUG

Orifice .043".

1шт.

191120A1

SEAL KIT

Seal Repair, 4-Way, 3 Position Valve, Not Illustrated

1шт.

See Figure(s) 08-13, 08-14

1шт.

9

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

9

61-31044

HEX SOC SCREW,#10 - 24 x 2 3/4"

4шт.

10

191119A1

SOLENOID

Coil, With Diode, 12 Volt, DC

2шт.

11

188106A1

NUT

2шт.

12

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

13

190985A1

VALVE

Includes 14, Double Pilot Operated

1шт.

14

191120A1

SEAL KIT

Seal Repair, Check Valve, Not Illustrated

1шт.

See Figure(s) 08-13, 08-14

1шт.

15

190986A1

VALVE PRESSURE RELIE,7/8" - 14

Includes 16

2шт.

16

149942C1

SEAL KIT

Relief Valve, Not Illustrated

1шт.

17

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

18

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

4шт.

19

861-10130

HEX SOC SCREW,M10 x 130mm, Cl 12.9

4шт.

20

864-10070

HEX SOC SCREW,M10 x 70mm, Cl 8.8

Not Used in this Application, Not Illustrated

4шт.

Выбрано товаров: 32
