Запчасти Case IH 2388 (08-03) - FILTER ASSY - OIL, RETURN - RETURN FILTER MOUNTING (07) - HYDRAULICS

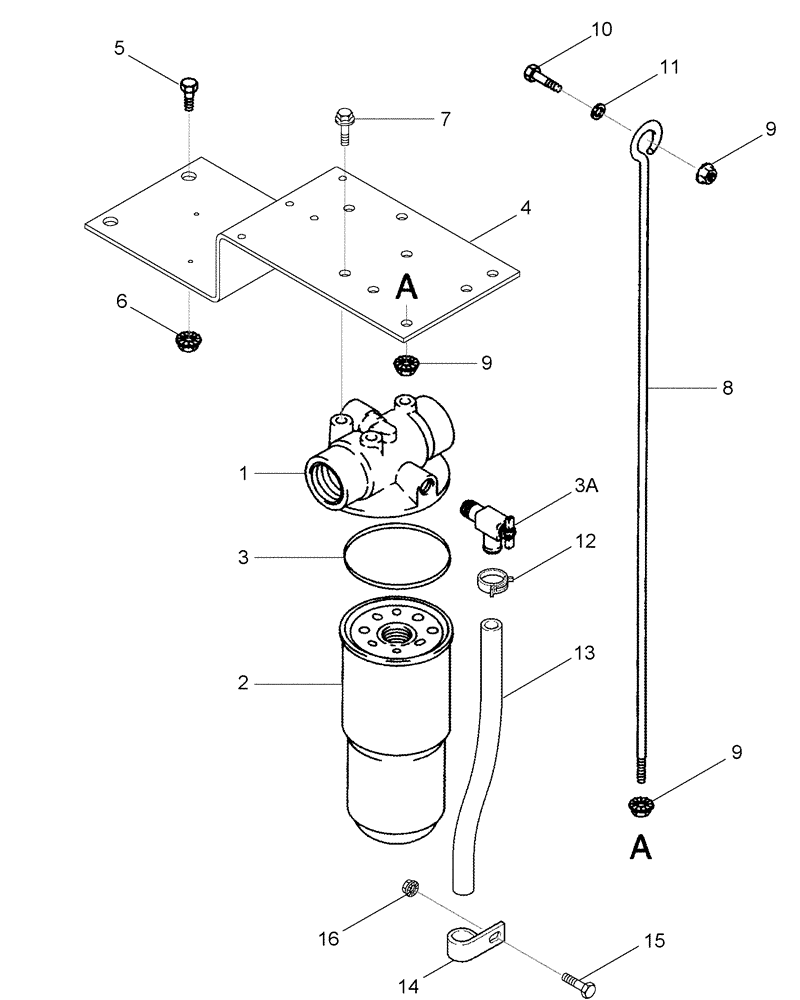

Схема запчастей Case IH 2388 - (08-03) - FILTER ASSY - OIL, RETURN - RETURN FILTER MOUNTING (07) - HYDRAULICS
9
6
14
3a
8
2
16
1
15
10
12
7
11
4
3
9
13
9
5

Артикул

Название

Примечание

Количество

87784C92

HYDRAULIC OIL FILTER

Includes 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

Head, Order 87784C92

1шт.

2

A177605

HYDRAULIC OIL FILTER

Order Kit 1329214C1

1шт.

Note: Both elements must be changed at the same time.

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

Order Kit 1329214C1

1шт.

3a

301803R1

SHUT-OFF VALVE

1шт.

4

124803A2

SUPPORT

Charge Filter

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

6

231-5146

FLANGE NUT,3/8"-16

2шт.

7

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

3шт.

8

1541544C2

STEM

1шт.

9

231-5146

FLANGE NUT,3/8"-16

3шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

11

495-81143

WASHER,13/32" x 1 1/2" x .120"

1шт.

12

1954736C1

HOSE CLAMP,#24

1шт.

13

1347069C1

FLEXIBLE HOSE,15.75mm ID x 1550mm L

Cut From 1977295C1

1шт.

14

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1-1/32" ID

2шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

1329214C1

HYDRAULIC OIL FILTER

Includes Two Elements and Four Seals

1шт.

Note: Both elements must be changed at the same time.

1шт.

Выбрано товаров: 21
