Запчасти Case IH 2388 (08-02) - HYDRAULICS - RESERVOIR TO HYDROSTATIC PUMP (07) - HYDRAULICS

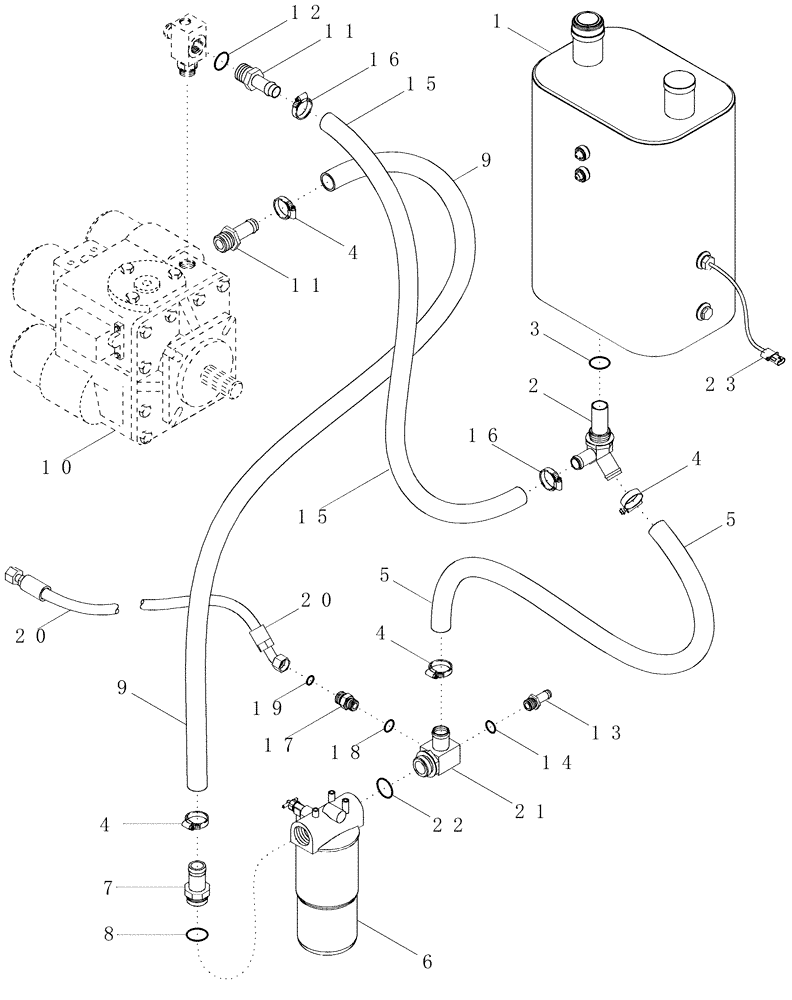

Схема запчастей Case IH 2388 - (08-02) - HYDRAULICS - RESERVOIR TO HYDROSTATIC PUMP (07) - HYDRAULICS
4
10
2
13
12
5
16
19
18
14
3
6
15
9
9
1
21
15
17
22
20
4
20
8
11
5
7
11
4
16
4
23

Артикул

Название

Примечание

Количество

1

86991459

RESERVOIR, HYDRAULIC

1шт.

See Figure 08-01

1шт.

2

182812A1

TEE

Includes 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

4шт.

5

1541691C1

FLEXIBLE HOSE

815 mm (32"), Filter To Reservoir

1шт.

6

87784C92

HYDRAULIC OIL FILTER

Return

1шт.

See Figure(s) 08-03, 08-04

1шт.

7

123487A1

VALVE

1-1/4" stem x 1-5/8" Or, Includes 8

1шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

9

109207A1

FLEXIBLE HOSE

737 mm (29"), Charge Pump Suction, Cut from 1541953C1

1шт.

10

REF

INSTRUCTION

Pump, Hydrostatic Charge

1шт.

See Figure(s) 06-09 - 06-12

1шт.

11

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

217-175

FITTING,5/8" Hose Barb x 7/8" - 14 Male ORB

Includes 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

238622A1

HYDRAULIC HOSE,737.00 mm

To Unloader Clutch Valve, Cut from S118576X

1шт.

16

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

17

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 18, 19

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

370263A1

FLEXIBLE HOSE

660 mm (26"), To Air Screen Motor

1шт.

21

370228A1

FITTING,1 5/8"-12 ORB x 7/8"-14 x M31.75 Bead x 7/8"-14

90, Special, Incl. 22

1шт.

22

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

23

122428A1

SWITCH

Fluid Level

1шт.
