(04-51) - COMBINE HEADER ADAPTER, ELECTRICAL

Запчасти Case IH 2388 (04-51) - COMBINE HEADER ADAPTER, ELECTRICAL (06) - ELECTRICAL

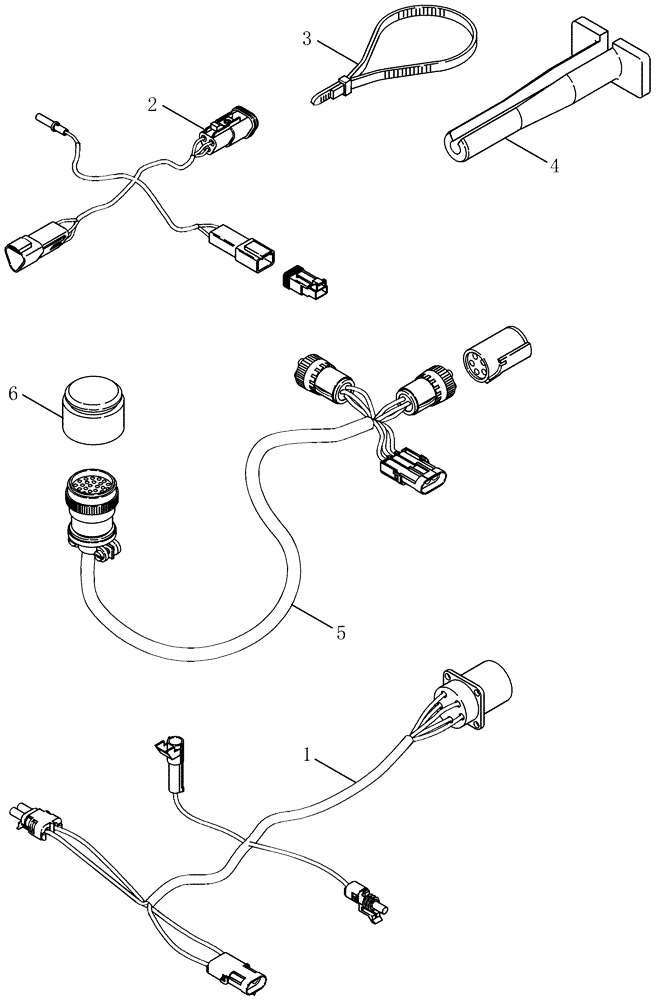

Схема запчастей Case IH 2388 - (04-51) - COMBINE HEADER ADAPTER, ELECTRICAL (06) - ELECTRICAL
2
3
6
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87340862

DIA KIT, HARVESTER

Hydraulic and Electrical Interface, Includes 1 - 5. Also See Figure 08-37

1шт.

1

87447945

WIRE HARNESS

Power & Ground

1шт.

2

87455341

WIRE HARNESS

Lateral Tilt Adapter

1шт.

3

86566989

CABLE TIE,208mm L

CABLE STRAP Nylon, 8", Black

4шт.

4

87050118

TOOL

Deutsch Extractor, Size 16, Blue

1шт.

5

87447944

WIRE HARNESS

Header Interface

1шт.

6

87105683

CAP

Interface Harness

1шт.

Выбрано товаров: 7
