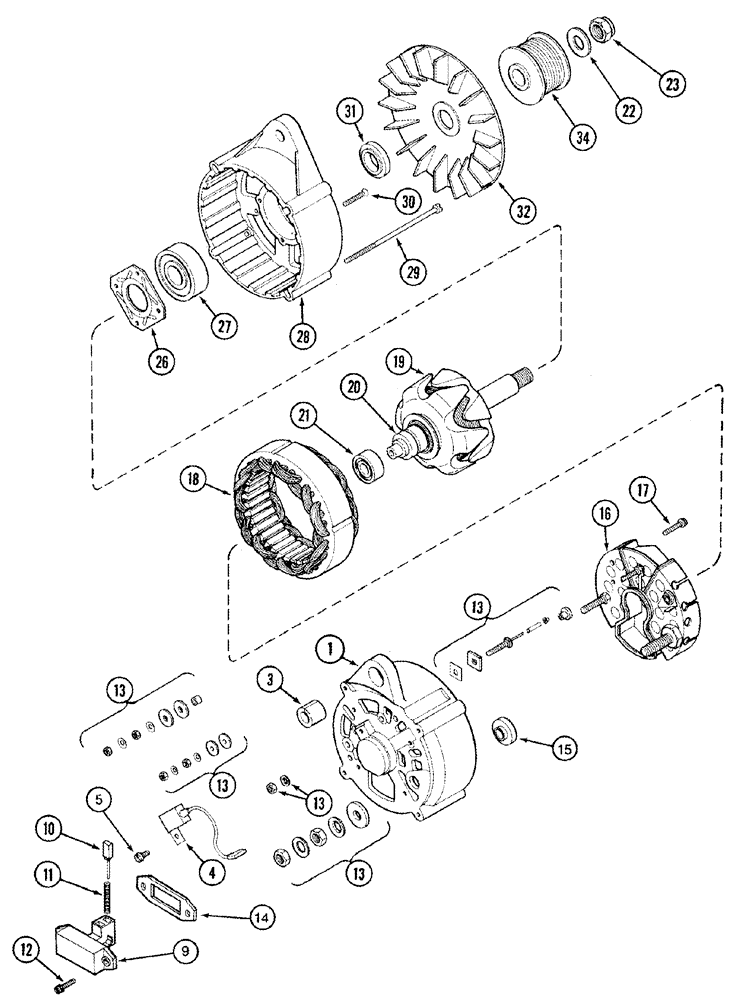

Запчасти Case IH 2388 (04-40) - ALTERNATOR ASSY (06) - ELECTRICAL

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

135 amp, Includes 1 - 32

1шт.

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

125849A1GV

ALTERNATOR

Value, 12 volt 135 ampere

1шт.

1

1964731C1

HOUSING

1шт.

3

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

1шт.

4

3079389R1

CAPACITOR

1шт.

5

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

1шт.

9

111899A1

REGULATOR

1шт.

10

1964968C1

COMMUTATOR BRUSH

Set

1шт.

11

P1538138P

COMPRESSION SPRING

2шт.

12

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

2шт.

13

1964738C1

REPAIR KIT

1шт.

14

140546A1

GASKET

1шт.

15

140545A1

RING

1шт.

16

1964732C1

RECTIFIER

1шт.

17

A186194

SCREW,M4 x 18mm

2шт.

18

140548A1

STATOR,12V, 135A

1шт.

19

1964728C1

ROTOR

1шт.

20

140543A1

RING

1шт.

21

1964730C1

BALL BEARING,12mm ID x 32mm OD x 14mm W

1шт.

22

495-21063

WASHER,9/16"

5/8" x 1-15/32" x 7/64"

1шт.

23

86637650

NUT,5/8"-18, GB

1шт.

26

1964727C1

PLATE

1шт.

27

1964726C1

BALL BEARING,22.2mm ID x 56mm OD x 21mm W

1шт.

28

1964725C1

HOUSING

1шт.

29

140549A1

SCREW,Oval Hd, M5 x 132mm

4шт.

30

140541A1

SCREW,Phil Flat Hd, Csk, M4 x 30mm, Cl 8.8

4шт.

31

1964729C1

SPACER

1шт.

32

1964736C1

FAN

1шт.

34

86975356

PULLEY

Not Included In Assembly

1шт.
