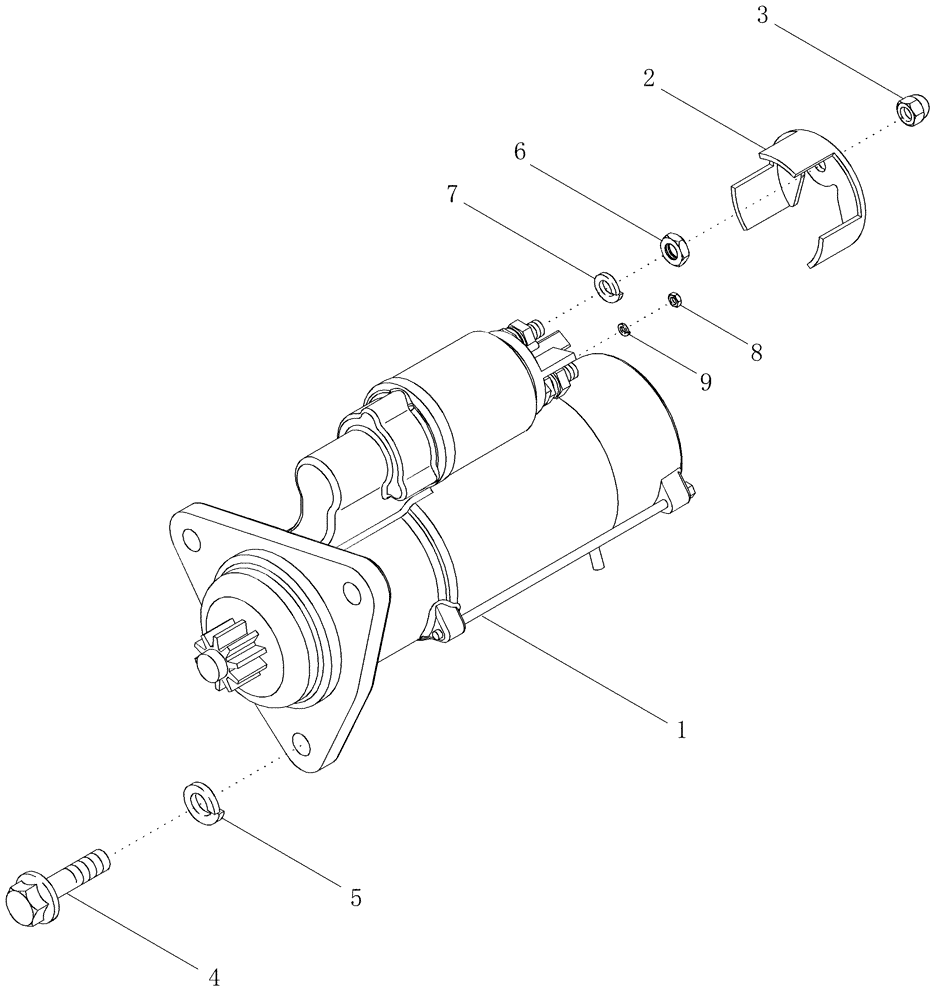

Запчасти Case IH 2388 (04-38) - STARTER ASSY - MOUNTING (06) - ELECTRICAL

1

87419387

STARTING MOTOR

1шт.

1

87420661

REMAN-STARTER

Remanufactured Starter

1шт.

1

87420662

CORE-STARTER

Return Part Number

1шт.

2

87422566

COVER

Jump Start Protection

1шт.

3

87422567

NUT

1шт.

4

87035075

12 PT SCREW,M12 x 35mm, Cl 12.9

3шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

6

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

825-1405

NUT,M5, Cl 8

1шт.

9

892-11005

LOCK WASHER,M5

1шт.

10

87345873

SHIELD

Starter (Not Shown)

1шт.
