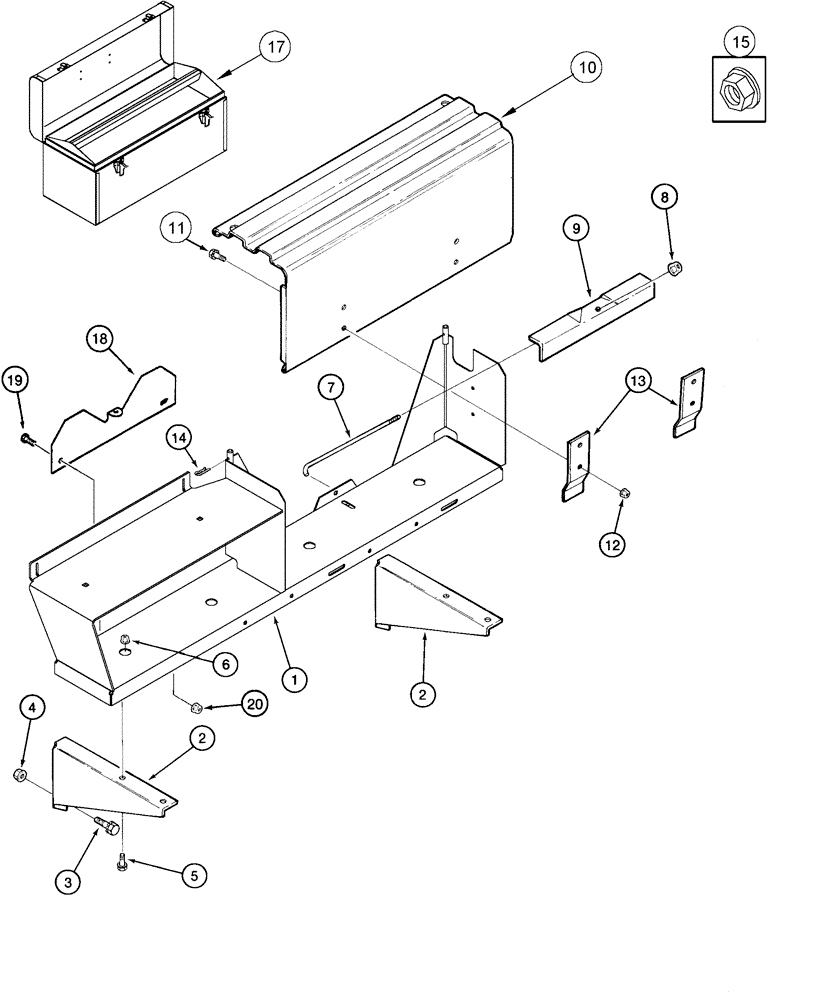

Запчасти Case IH 2388 (04-36) - BATTERY - BOX (06) - ELECTRICAL

1

394365A1

SUPPORT

1шт.

2

142495A2

SUPPORT

2шт.

3

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

5шт.

4

231-5146

FLANGE NUT,3/8"-16

5шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

A147915

BOLT

1шт.

8

425-104

NUT,1/4"-20, Cl 5

1шт.

9

A162337

CLAMP

1шт.

10

142496A1

COVER

1шт.

11

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

13

142497A2

STRAP

2шт.

14

480523R1

HAIR PIN COTTER

2шт.

15

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

4шт.

16

135370A1

PROTECTION STRIP

194 mm (7-5/8"), Cut from 1330108CX, Not Illustrated

1шт.

17

392914A1

BOX, TOOL

1шт.

18

143481A1

SUPPORT

1шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

397115A2

TUBE,7.94mm OD x 520mm OAL

1шт.
