Запчасти Case IH 2388 (04-24) - POTENTIOMETER, FEEDER POSITION - MOUNTING (06) - ELECTRICAL

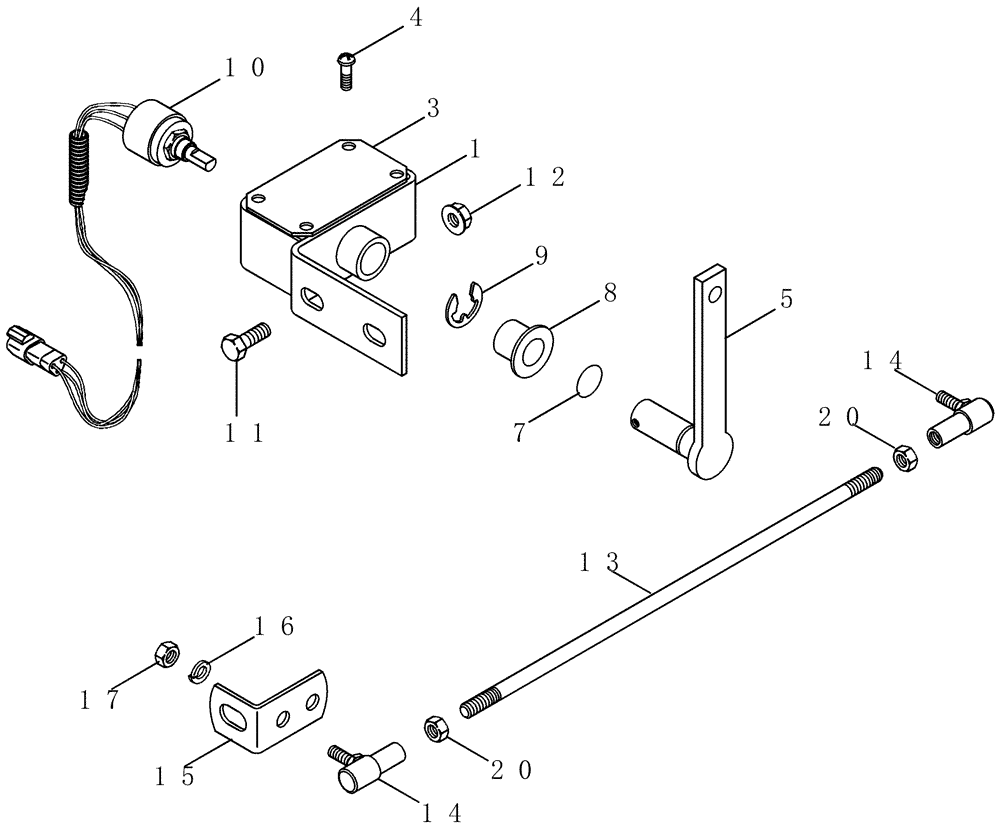

Схема запчастей Case IH 2388 - (04-24) - POTENTIOMETER, FEEDER POSITION - MOUNTING (06) - ELECTRICAL
3
20
17
4
5
13
8
20
7
12
10
14
14
9
1
16
11
15

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

Potentiometer Assy, Yield Monitor, RH, Includes 1 - 10, Order 239136A1

1шт.

See Figure 04-25

1шт.

NSS

NOT SOLD SEPARAT

Potentiometer Assy, Return To Cut, LH, Includes 1 - 10, Order 238459A1

1шт.

See Figure 04-26

1шт.

1

NSS

NOT SOLD SEPARAT

Support

1шт.

2

238458A1

COVER

Potentiometer Support

2шт.

3

280001A1

GASKET

Potentiometer Support, Not Illustrated

2шт.

4

261-5428

SELF-TAP SCREW,Cross Pan Hd, #4 x 1/2"

8шт.

5

143225A3

LEVER

Position, Includes 6

1шт.

6

878-1046

SET SCREW,Hex Skt, M4 x 6mm, Cup Pt

1шт.

7

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Not Illustrated

1шт.

8

A164914

BUSHING,12.72mm ID x 15.93mm OD x 15.75mm L

Sensor

1шт.

9

103-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

10

122756A3

POTENTIOMETER,1000 Ohm, 8V

Position

1шт.

11

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

13

301522A1

THREADED TIE-ROD

1/4" NF x 6-1/2", Includes 20

1шт.

14

A10329

BALL JOINT,1/4" - 28 x 1"

1/4" NF

2шт.

15

127308A2

SUPPORT

1шт.

16

492-11025

LOCK WASHER,1/4"

2шт.

17

425-114

NUT,1/4"-28, G5

2шт.

18

363660R1

CLIP

Rear Harness, Not Illustrated

1шт.

19

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

12.7 mm, Not Illustrated

1шт.

20

425-114

NUT,1/4"-28, G5

2шт.

Выбрано товаров: 24
