Запчасти Case IH 2388 (04-21) - HARNESS - FAN AND ROTOR SPEED (06) - ELECTRICAL

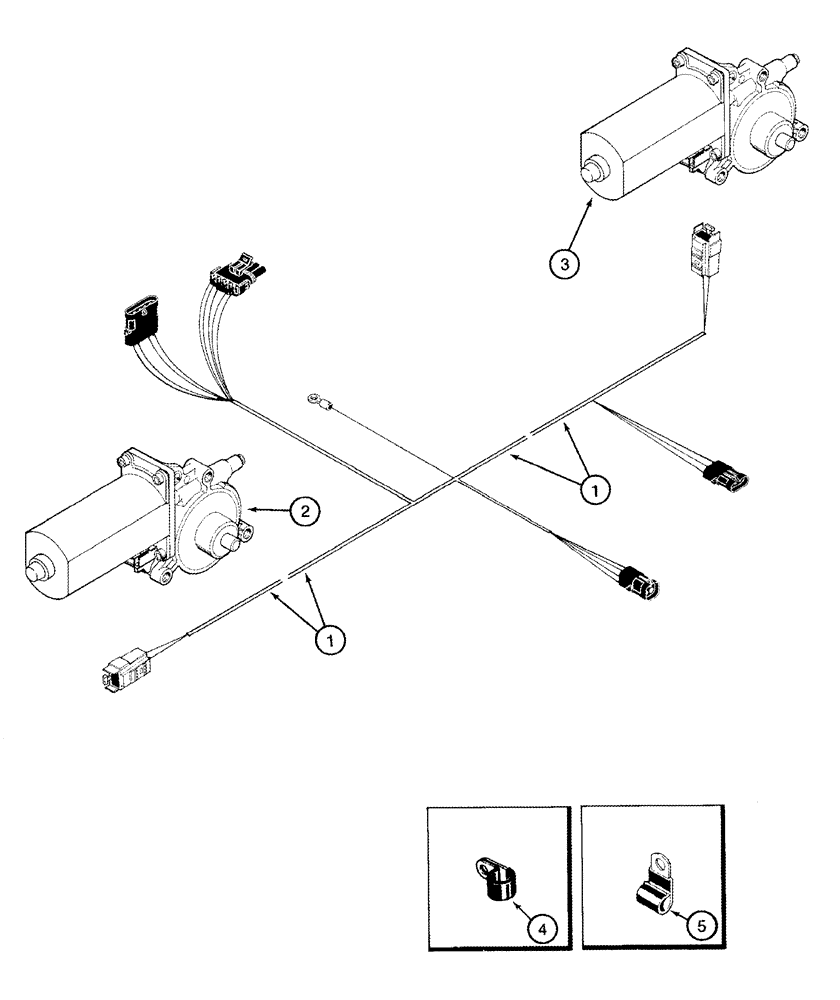

Схема запчастей Case IH 2388 - (04-21) - HARNESS - FAN AND ROTOR SPEED (06) - ELECTRICAL
2
5
4
3
1
1

Артикул

Название

Примечание

Количество

1

184397A2

HARNESS

Fan Speed, Rotor Speed

1шт.

2

111787A2

MOTOR, ELECTRIC

Rotor Speed

1шт.

2

111787A2R

REMAN-ELECTRIC MOTOR

2388 BTW HAJ292001 & HAJ300000 (10/04-)

1шт.

2

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

3

111787A2

MOTOR, ELECTRIC

Fan Speed

1шт.

3

111787A2R

REMAN-ELECTRIC MOTOR

2388 BTW HAJ292001 & HAJ300000 (10/04-)

1шт.

3

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

5

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

8шт.

6

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

Not Illustrated

3шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Not Illustrated

3шт.

Выбрано товаров: 11
