Запчасти Case IH 2388 (04-14) - HARNESS - CAB, RELAY AND FUSE (06) - ELECTRICAL

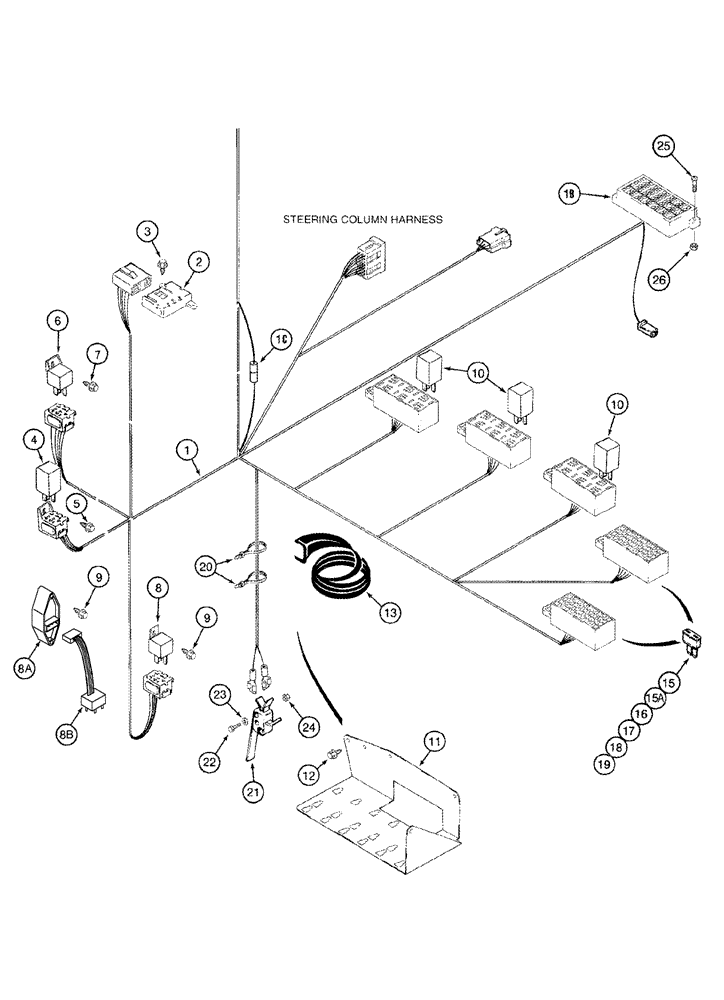

Схема запчастей Case IH 2388 - (04-14) - HARNESS - CAB, RELAY AND FUSE (06) - ELECTRICAL
8a
9
1
17
11
25
13
7
21
6
4
19
10
8
15
10
22
12
20
3
23
24
9
18
15a
1c
5
2
1b
26
16
8b

Артикул

Название

Примечание

Количество

1

87314715

WIRE HARNESS

Cab, Serial Range: -HAJ0295001

1шт.

Without Overhead Circuit Breaker Panel

1шт.

See Figure(s) 04-11, 04-13

1шт.

1

87304011

WIRE HARNESS

Cab, Start Serial: HAJ0295001

1шт.

See Figure(s) 04-11, 04-13

1шт.

1b

122845A1

JUNCTION BLOCK

Feedback

1шт.

1c

113699A1

RECTIFIER

2-5/8", Included with 276603A2, 315073A1

1шт.

2

284421A1

CONTROL UNIT

Low Coolant

1шт.

3

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

4

309001A1

FLASHER UNIT,12V

Hazard, Serial Range: -HAJ0295001

1шт.

86578898

FLASHER UNIT

Hazard, Start Serial: HAJ0295001

1шт.

5

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

1шт.

6

1987452C1

RELAY

12V, 70 amp, Cab Power

1шт.

7

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

1шт.

8

1502351C1

RELAY

12V, Unloading Circuit, Optional with 87413245 Below

1шт.

87413245

FIP KIT

Service Replacement of 1502351C1, Avoids Connector Change in Cab Harness, Includes 8A, 8B

1шт.

8a

87413221

RELAY

Module, 12V, Unloading Circuit, Optional with 1502351C1

1шт.

8b

87413222

WIRE HARNESS

Adapting

1шт.

9

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Used with 1502351C1

1шт.

9

87033643

SELF-TAP SCREW,Hex Wash Hd, #10 x 1 1/2"

Used with 87413221

1шт.

10

105849A1

RELAY

20 amp, Continuous Duty

19шт.

11

123116A1

PANEL

Fuse and Relay

1шт.

12

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

3шт.

13

1327979C1

MOLDING

Cut 152 mm (6") from 196707C1

1шт.

14

REF

INSTRUCTION

Decal, Fuse and Relay, Not Illustrated

1шт.

See Figure 09H-20

1шт.

15

121850A1

FUSE,3A, Mini, Violet

1шт.

15a

121410A1

FUSE,5A, Mini, Tan

1шт.

16

121412A1

FUSE,10A, Mini, Red

1шт.

17

121413A1

FUSE,15A, Mini, Blue

1шт.

18

121414A1

FUSE,20A, Mini, Yellow

1шт.

19

121416A1

FUSE,30A, Mini, Green

1шт.

20

702093C1

CABLE TIE

CABLE STRAP

2шт.

21

60-6515T1

SWITCH

3rd Gear Lockout

1шт.

22

463-10412

SCREW,Hex Hd, #4-40 x 3/4"

2шт.

23

495-31012

WASHER,#4

1/8" x 5/16" x 1/32"

2шт.

24

225-14104

NUT,#4-40

2шт.

25

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

26

231-14106

NUT,#6-32, GB

2шт.

222699A1

FUSE KIT

Includes 15, 15A, 16 - 19 (1 each)

1шт.

27

121411A1

FUSE,7.5A, Mini, Brown

(Not Illustrated)

1шт.

28

121415A1

FUSE,25A, Mini, Clear

(Not Illustrated)

1шт.
