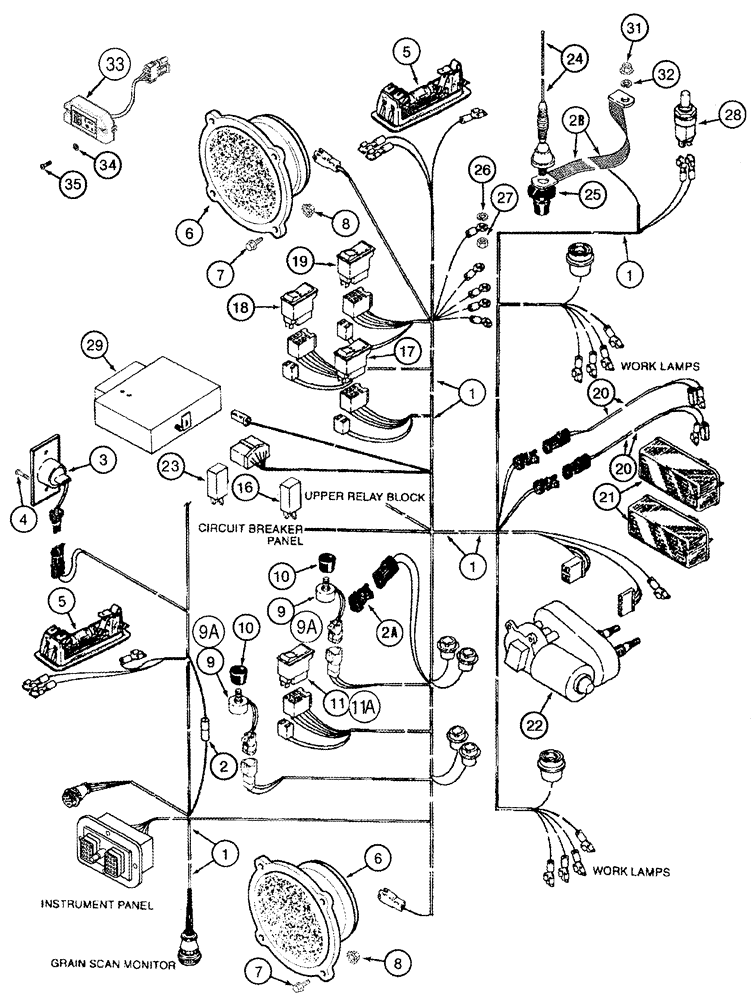

Запчасти Case IH 2388 (04-11) - HARNESS - CAB, OVERHEAD (06) - ELECTRICAL

1

388671A3

WIRE HARNESS

Cab, Serial Range: -HAJ0295001

1шт.

Without Overhead Circuit Breaker Panel

1шт.

See Figure(s) 04-10, 04-11

1шт.

1

87304011

WIRE HARNESS

Cab, Start Serial: HAJ0295001

1шт.

Without Overhead Circuit Breaker Panel

1шт.

See Figure(s) 04-13, 04-14

1шт.

2

113699A1

RECTIFIER

2-5/8"

1шт.

2a

A187874

MODULE

2шт.

2b

278032A1

GROUND STRAP

Radio, Serial Range: Antenna-Cab

1шт.

3

83882C91

LAMP

Console Illumination

1шт.

See Figure 04-32

1шт.

4

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

5

429726A1

COURTESY LIGHT

DOME LIGHT

2шт.

See Figure 04-29

1шт.

6

375389A1

SPEAKER

5-1/2"

2шт.

7

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

8шт.

8

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

9

369794A1

POTENTIOMETER,10,000 Ohm

Air Conditioning, Fan Speed

2шт.

10

1977521C1

BUTTON

2шт.

11

369892A1

SWITCH

Air Conditioning

1шт.

Without Automatic Temperature Control

1шт.

12

26069R1

BULB

No. 192, Not Illustrated

4шт.

13

139718A1

CIRCUIT-BREAKER,10 Amp, Mini

Not Illustrated, Used with 276603A2

1шт.

14

139719A1

CIRCUIT BREAKER,15 Amp, Mini

Not Illustrated, Used with 276603A2

2шт.

15

139720A1

CIRCUIT-BREAKER,20 Amp, Mini

Not Illustrated, Used with 276603A2

3шт.

16

105849A1

RELAY

20 amp, Continuous Duty, Mounted in Relay Block

5шт.

17

176854A1

WINDSHIELD WIPER SWI

Wiper, Serial Range: -HAJ0295001

1шт.

17

87447601

WINDSHIELD WIPER SWI

With Washer, Start Serial: HAJ0295001

1шт.

18

391065A1

SWITCH

Lamp

1шт.

19

279263A1

FLASHER SWITCH

Warning Lamp

1шт.

20

143062A1

WIRE HARNESS

Warning Lamp

2шт.

21

130882C91

LAMP

2шт.

See Figure 04-32

1шт.

22

137838A1

WIPER MOTOR

MOTOR, WIPER

1шт.

See Figure 04-41

1шт.

23

391066A1

RELAY

Time Delay

1шт.

24

97080C1

ANTENNA

1шт.

25

R54547

GROMMET

1шт.

26

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

27

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

28

1983341C1

SWITCH

Door Jam

1шт.

29

REF

INSTRUCTION

Radio

1шт.

Note: If Cab Is Not Equipped With A Radio, 1535219C1 Plate Is Used To Cover Opening In Headliner. See Figure 09G-06 REF 10

1шт.

31

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

32

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

33

308910A2

DISPLAY

Air Conditioning

1шт.

34

495-31022

WASHER,#10

4шт.

35

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.
