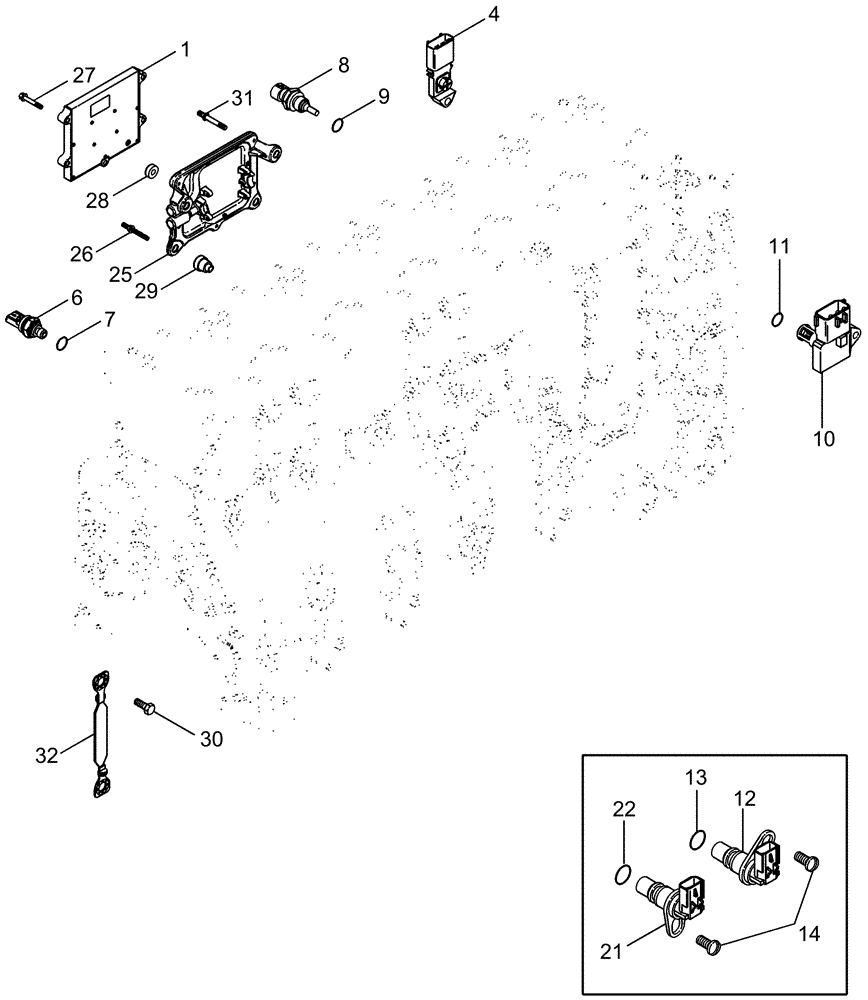

Запчасти Case IH 2388 (04-07) - MODULE, ENGINE CONTROL - ASN HAJ0295001 EXCEPT ALL CIS MARKETS (06) - ELECTRICAL

1

87342193

ECU

1шт.

1

87342193R

REMAN ELECT CONTROL

Remanufactured Electronic Control Unit

1шт.

1

87342193C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

4

87341871

SENSOR

Pressure, Includes 5

1шт.

5

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

6

87342100

SENSOR

Pressure, Includes 7

1шт.

7

87341887

O-RING,0.087" Thk x 0.445" ID

11.3 ID x 2.2 mm

1шт.

8

87341875

SENSOR

Temperature, Includes 9

1шт.

9

87341887

O-RING,0.087" Thk x 0.445" ID

11.3 ID x 2.2 mm

1шт.

10

87584643

SENSOR

Includes 11

1шт.

11

87342065

SEAL,2mm Thk x 9mm ID, 75 Duro

11.3 ID x 2.2 mm

1шт.

12

87352952

SENSOR

Position, Includes 13

1шт.

13

87352938

O-RING,2.62mm Thk x 15.54mm ID, 75 Duro

1шт.

21

87341787

SENSOR

Includes 22

1шт.

22

87352938

O-RING,2.62mm Thk x 15.54mm ID, 75 Duro

1шт.

25

87341857

COOLER

Fuel

1шт.

26

J944816

SCREW,Hex Flg, M8 x 1.25 x 50mm, Cl 8.8

3шт.

27

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

4шт.

28

87341822

ISOLATOR

4шт.

29

87341823

ISOLATOR

4шт.

30

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.

31

87341816

SCREW,Hex Flg, M10 x 1.5 x 15mm

1шт.

32

87341820

GROUND STRAP

1шт.

33

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

34

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

35

87341845

SCREW,Torx Skt Hd, M4 x 16mm

1шт.

36

J900589

NUT

M8 x 1.25

1шт.

37

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

1шт.
