Запчасти Case IH 2388 (04-01) - HARNESS - FRONT (06) - ELECTRICAL

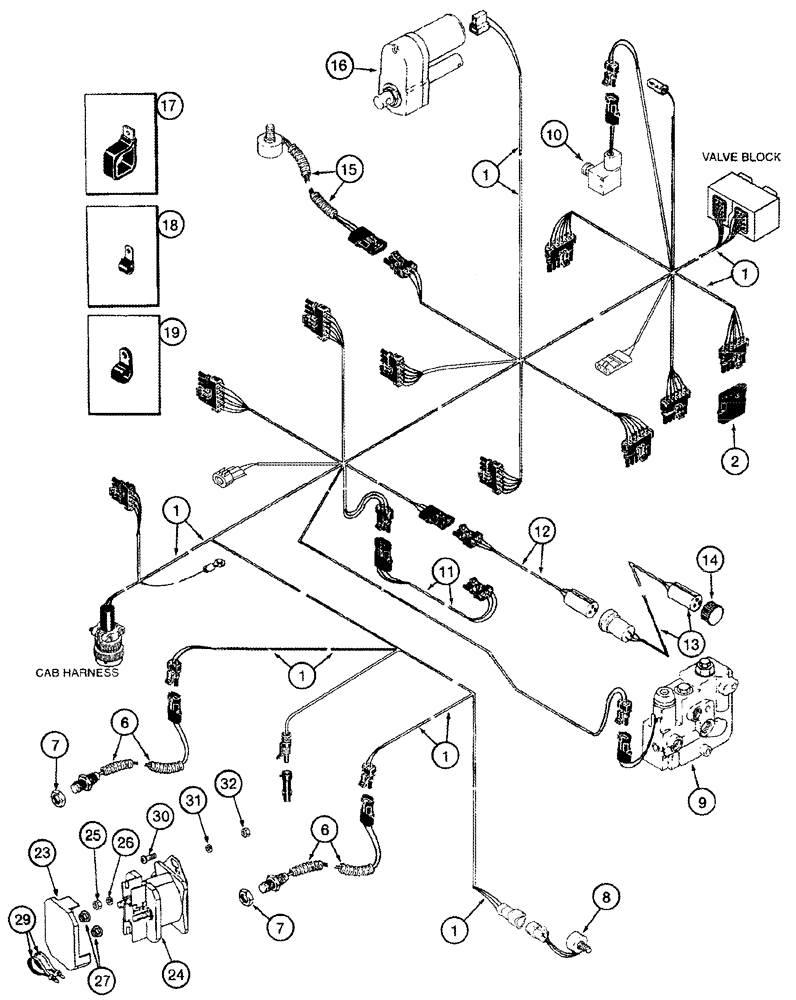

Схема запчастей Case IH 2388 - (04-01) - HARNESS - FRONT (06) - ELECTRICAL
1
2
8
26
27
13
7
15
8
17
14
19
1
1
18
11
23
12
1
29
16
1
24
1
7
6
9
31
32
10
25
30

Артикул

Название

Примечание

Количество

1

388314A2

WIRE HARNESS

Front, Includes 2 - 4 (Shown), Serial Range: -HAJ0295001

1шт.

1

87314488

WIRE HARNESS

Front, Includes 2 - 4 (Not Shown), Start Serial: HAJ0295001

1шт.

1

87538544

WIRE HARNESS

Front, Includes 2 - 4 (Not Shown)

1шт.

1

87309736

WIRE HARNESS

Front, Incl 2 - 4, MY06

1шт.

2

127290A1

DIODE

1шт.

3

187308A1

CAP

Not Illustrated

6шт.

4

187309A1

BAR

Splice, Not Illustrated

6шт.

6

245193C2

SENSOR

Rotor Speed, Feeder Speed

2шт.

7

425-1512

JAM NUT,Jam, 3/4"-10, G5

2шт.

8

122756A3

POTENTIOMETER,1000 Ohm, 8V

1K, Feeder Position, For Mounting

1шт.

See Figure 04-24

1шт.

9

114856A3

CONTROL VALVE

Reel Drive

1шт.

See Figure 08-20

1шт.

10

368154A1

CONTROL VALVE

Accumulator

1шт.

See Figure 08-30

1шт.

13

1331312C1

WIRE HARNESS

Extension, Header Height Control, If Used

1шт.

14

225290C1

DUST CAP

Header Height Control Harness

1шт.

15

122756A3

POTENTIOMETER,1000 Ohm, 8V

1K, Concave Position, For Mounting

1шт.

See Figure 04-02

1шт.

16

143239A2

MOTOR, ELECTRIC

Concave Control, For Mounting

1шт.

See Figure 09B-19

1шт.

16

143239A2R

REMAN-ELECTRIC MOTOR

2388, BTW HAJ292001 & HAJ300000

1шт.

16

143239A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

17

1301387C2

CLIP

2" ID, Square

1шт.

18

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

6шт.

18

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

19

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Not Illustrated

1шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not Illustrated

1шт.

22

142533A1

SUPPORT

Not Illustrated

1шт.

With Accumulator

1шт.

With Field Tracker

1шт.

178149A1

SOLENOID SWITCH

Assy, Includes 23 - 29

1шт.

23

178148A1

COVER

1шт.

24

183038A1

SOLENOID

1шт.

25

225-14210

NUT,#10-32

Battery Cable to Solenoid Terminal 30

1шт.

26

492-11010

LOCK WASHER,#10

1шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

27

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

Harness to Solenoid Terminal 50

1шт.

28

892-11005

LOCK WASHER,M5

Not Illustrated

1шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.

29

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

5шт.

30

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

2шт.

31

492-11031

LOCK WASHER,5/16"

2шт.

32

425-105

NUT,5/16"-18, G5

2шт.

33

492-11010

LOCK WASHER,#10

1шт.

34

225-14210

NUT,#10-32

1шт.

Выбрано товаров: 49
