Запчасти Case IH 2388 (06-26) - WHEELS - DRIVE- DUAL (03) - POWER TRAIN

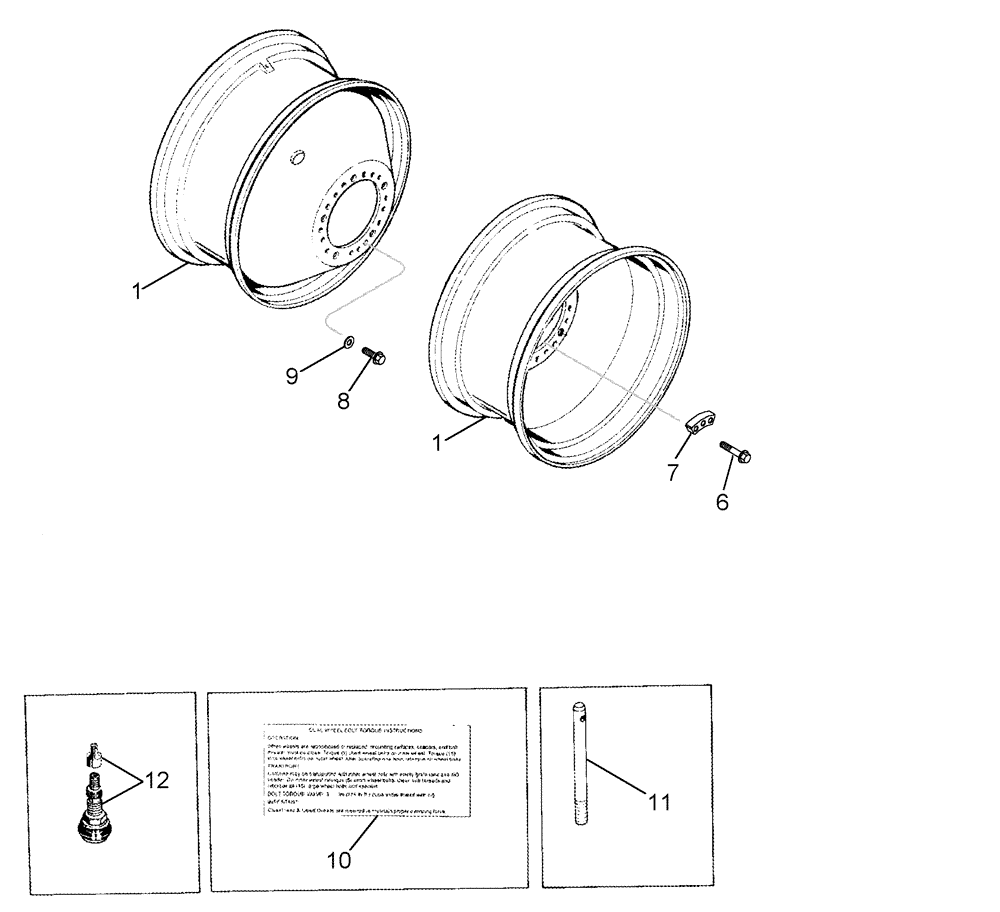

Схема запчастей Case IH 2388 - (06-26) - WHEELS - DRIVE- DUAL (03) - POWER TRAIN
1
8
7
10
9
11
12
1
6

Артикул

Название

Примечание

Количество

1

184352C2

WHEEL

18.4 x 38" Tire

4шт.

1

184458C2

WHEEL

18.4 x 42" Tire

4шт.

1

129948A1

WHEEL

20.8 x 38" Tire

4шт.

1

184456C2

WHEEL

20.8 x 42" Tire

4шт.

1

356461A1

WHEEL

46 x W12" Tire

4шт.

2

417194C1

PLUG

Used With Tubeless Tires, Not Illustrated

4шт.

2

383697R1

PLUG

Used With Tube Type Tires, Not Illustrated

4шт.

5

407184R1

VALVE

Core, Used With Tubeless Tires, Not Illustrated

4шт.

6

87367560

BOLT

M20 x 95; 12.9

1шт.

7

87327940

PLATE

Dual Wheel Mounting

10шт.

8

87374089

BOLT,Hex, M20 x 1.5 x 55mm, Cl 10.9

M20 x 55; 10.9

1шт.

9

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3.4 mm, If Used

1шт.

10

448670A1

DECAL

Bolt Torque, Dual Wheel

1шт.

See Figure 09H-21

1шт.

11

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

Stud, Drive Wheel Starter

2шт.

12

179482C1

VALVE STEM

7/16" dia, Used With Tubeless Tires, If Used

2шт.

Выбрано товаров: 16
