Запчасти Case IH 2388 (06-20) - TRANSMISSION ASSY - DIFFERENTIAL PINION SHAFT AND GEARS (03) - POWER TRAIN

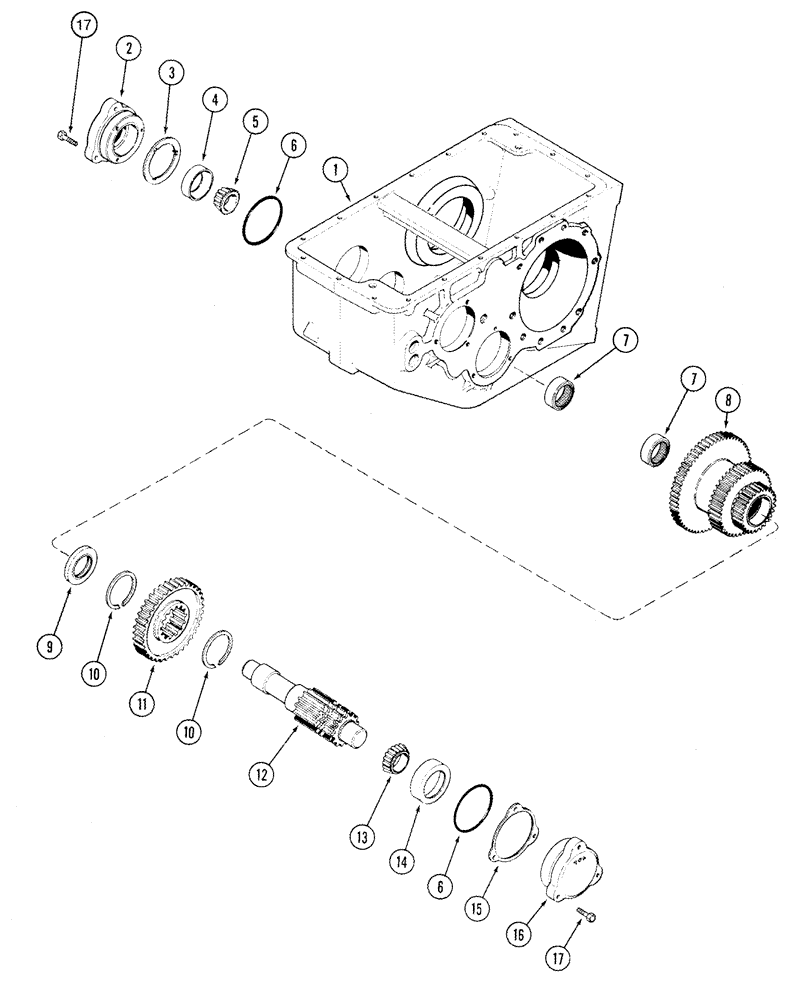

Схема запчастей Case IH 2388 - (06-20) - TRANSMISSION ASSY - DIFFERENTIAL PINION SHAFT AND GEARS (03) - POWER TRAIN
1
5
15
2
3
8
9
7
14
16
6
17
10
6
4
13
17
7
11
12
10

Артикул

Название

Примечание

Количество

236707A1

TRANSMISSION

37/35 Change Gears, Includes 1 - 17, Also Includes Parts on Figure(s) 06-19, 06-21

1шт.

Corn and Grain Combine - Configured from Factory

1шт.

Review Vehicle PIN Plate and Tag on Transmission for Part Number to Correctly Identify Ratio

1шт.

236707A1R

REMAN-TRANSMISSION

Reman for New PN 236707A1

1шт.

236707A1C

CORE-TRANSMISSION

Return Number

1шт.

236706A1

TRANSMISSION

34/38 Change Gears, Includes 1 - 17, Also Includes Parts on Figure(s) 06-19, 06-21

1шт.

Rice Combine - Configured from Factory

1шт.

Review Vehicle PIN Plate and Tag on Transmission for Part Number to Correctly Identify Ratio

1шт.

236706A1R

REMAN-TRANSMISSION

Reman for New PN 236706A1

1шт.

236706A1C

CORE-TRANSMISSION

Return Number

1шт.

1

REF

INSTRUCTION

Housing

1шт.

See Figure 06-19, Ref. 1

1шт.

2

1997933C1

BEARING COVER,59.75mm ID x 101.51mm OD x 47.5mm

BEARING COVER LH

1шт.

3

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

1шт.

4

131312C1

BEARING CUP

LH Pinion Shaft

1шт.

5

131311C91

ROLLER BEARING,1.3755" ID x 2.8448" OD x 1"

1шт.

6

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

2шт.

7

675708R91

NEEDLE BEARING

2шт.

8

530699R1

PINION

59T, 39T, 27T

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

1шт.

10

196693H1

RING

2шт.

11

1997649C1

PINION,35T

Change Driven

1шт.

Corn and Grain Combine

1шт.

11

1349045C1

PINION

38T, Change Driven

1шт.

Rice Combine

1шт.

12

401878R1

SHAFT

14T

1шт.

13

57862H

BEARING CONE,1.625" ID x 3.375" OD x 1.1875"

1шт.

14

57861H

BEARING CUP

1шт.

14

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

1шт.

15

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

(0.003")

1шт.

15

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

(0.005")

1шт.

15

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

(0.007")

1шт.

15

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

(0.030")

1шт.

16

1997984C1

HOUSING,73.4 mm ID x 101.51 mm OD x 33.5 mm

BEARING HOUSING RH

1шт.

17

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

Use 345-181 Loctite No. 516, 1 ml

1шт.
