Запчасти Case IH 2388 (06-18) - CONTROLS - TRANSMISSION LOWER SHIFT (03) - POWER TRAIN

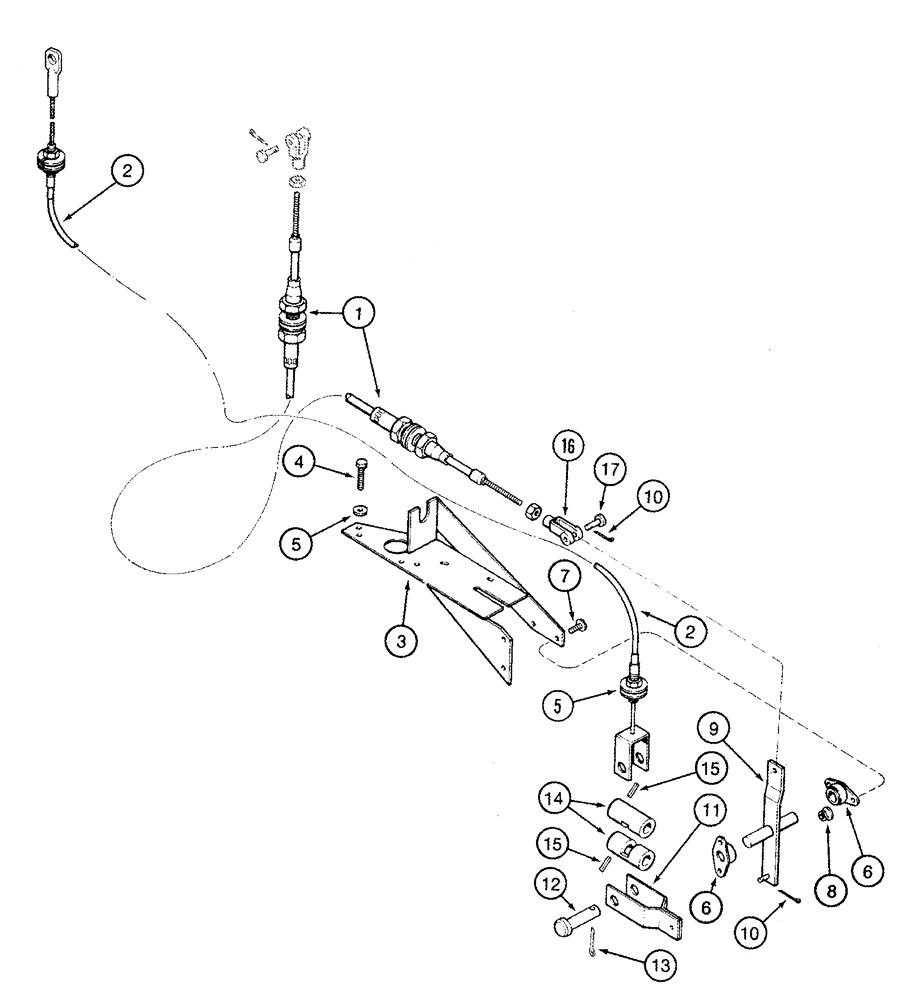

Схема запчастей Case IH 2388 - (06-18) - CONTROLS - TRANSMISSION LOWER SHIFT (03) - POWER TRAIN
16
15
12
13
2
10
15
6
8
10
4
14
3
17
7
6
9
5
2
5
1
11

Артикул

Название

Примечание

Количество

1

115397A1

CABLE,3571mm L

Transmission Shift, 2nd and 3rd Speed

1шт.

2

115398A1

CABLE,3209mm L

3209 mm (126"), Transmission Shift, 1st Speed

1шт.

3

181376A1

SUPPORT

1шт.

4

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

6

A63366

SPHERICAL BEARING,19mm ID

2шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

9

143588A1

LEVER

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

2шт.

11

194437C1

LINK

Shift Rail Control

1шт.

12

439-51240

HEADED PIN,19.05mm OD x 63.5mm L

1шт.

13

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

14

192689C1

PIN,34.93mm OD x 73.7mm L

2шт.

15

38-31620

PIN,6.35mm OD x 31.75mm L

2шт.

16

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

17

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

Выбрано товаров: 17
