Запчасти Case IH 2388 (06-16) - MOTOR ASSY - HYDROSTATIC - CONTROL VALVE - TWO SPEED (03) - POWER TRAIN

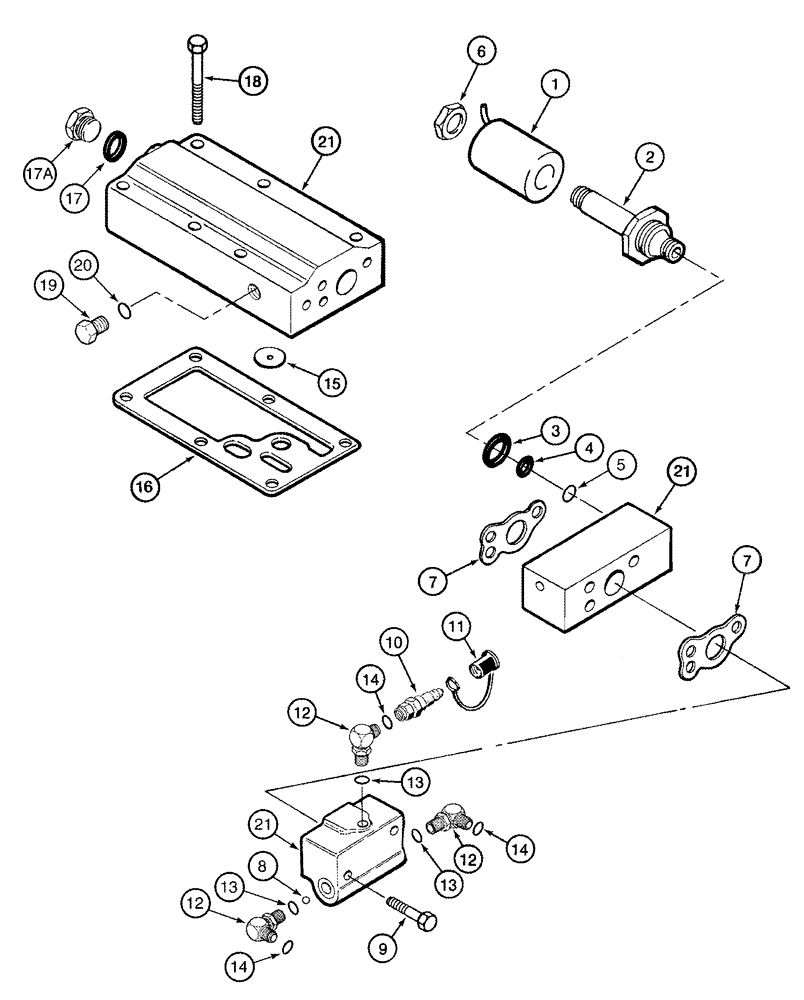

Схема запчастей Case IH 2388 - (06-16) - MOTOR ASSY - HYDROSTATIC - CONTROL VALVE - TWO SPEED (03) - POWER TRAIN
17a
10
12
7
1
12
18
14
2
13
13
19
20
11
21
13
14
3
7
21
8
14
17
12
4
6
16
21
5
15
9

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Motor, Hydrostatic

1шт.

See Figure(s) 06-12 - 06-13

1шт.

255825A1

REPAIR KIT

Includes 1 - 21

1шт.

244387A1

VALVE

Includes 1 - 6

1шт.

1

230594A1

SOLENOID

1шт.

2

255834A1

CARTRIDGE

1шт.

1542831C1

SEAL KIT

Includes 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

6

298986A1

NUT

1/2 NF

1шт.

92649C1

KIT

Includes 7 - 9

1шт.

7

1272954C1

GASKET,0.43mm Thk

2шт.

8

211-1012

BALL,3/8" Dia

24,CRS

1шт.

9

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

2шт.

10

190117A1

COUPLING

Diagnostic, Includes 11

1шт.

11

H434163

DUST CAP

1шт.

12

413432A1

ELBOW

9/16" fc x 7/16" Or, Includes 13, 14

3шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

255843A1

PORT

1шт.

16

145337C1

GASKET

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17a

NSS

NOT SOLD SEPARAT

Cap

1шт.

18

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

6шт.

19

9672438

PLUG,7/16" - 20 ORB

Incl. 20

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

Body

1шт.

Выбрано товаров: 28
