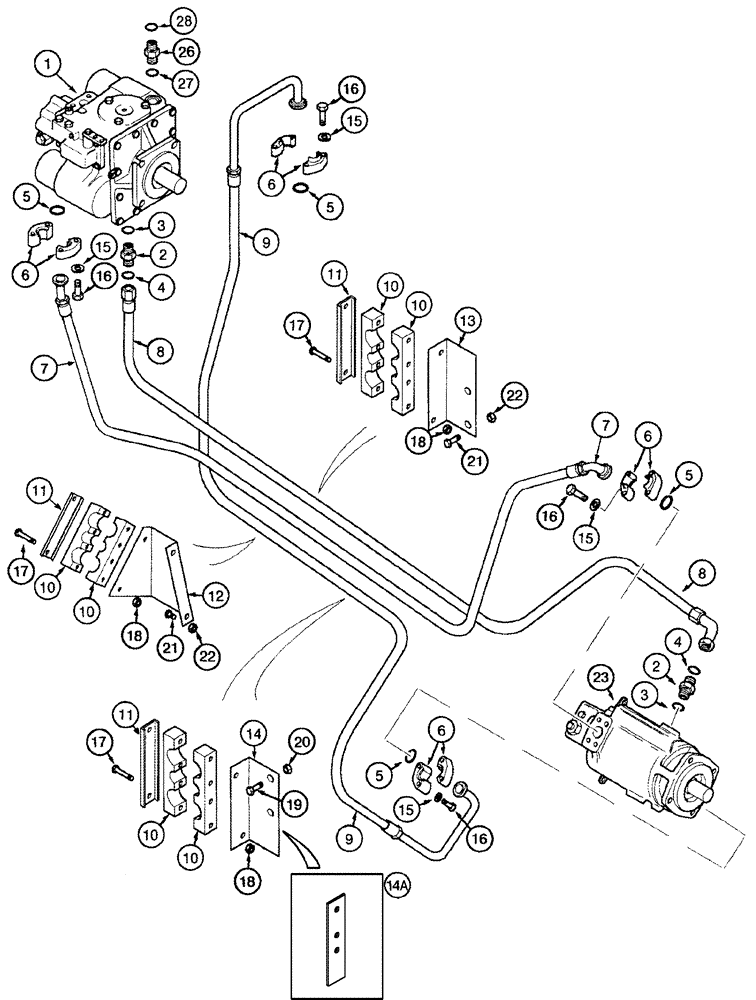

Запчасти Case IH 2388 (06-03) - HYDROSTATICS - PUMP AND MOTOR - SINGLE SPEED MOTOR (03) - POWER TRAIN

1

1343716C4

PUMP, HYDROSTATIC

HYDROSTATIC PUMP Hydrostatic, See Figure 06-09, Serial Range: -JJC0268955

1шт.

1

87637528R

REMAN-HYDROSTAT PUMP

2388, BSN JJC0276540 (1/98-8/04), Serial Range: -JJC0268955. Reman for New P/N 1343716C4

1шт.

1

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

400478A1

HYDROSTATIC PUMP

Hydrostatic, See Figure 06-10, Start Serial: JJC0268956

1шт.

1

87637528R

REMAN-HYDROSTAT PUMP

2388 (NA) BSN JJC0276540 (1/98-8/04), Start Serial: JJC0268956. Reman for New P/N 400478A1

1шт.

1

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Incl 3, 4

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

5

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

6

S97224

CLAMP

1", Split Flange

8шт.

7

227640A1

HOSE,25.4mm ID x 3455mm L

3455 mm (136"), Forward, Pump to Motor, Serial Range: -JJC0272999

1шт.

7

443578A1

HOSE,25.4mm ID x 3505mm L

3505 mm (138"), Forward, Start Serial: JJC0273000

1шт.

8

227639A2

HOSE,25.4mm ID x 3855mm L

3705 mm (145-7/8"), Drain, Pump to Motor, Serial Range: -JJC0272999

1шт.

8

443581A1

HOSE

3902 mm (163-5/8"), Drain, Start Serial: JJC0273000

1шт.

9

227641A2

HOSE

4055 mm (159-5/8"), Reverse, Pump to Motor, Serial Range: -JJC0272999

1шт.

9

443579A1

HOSE,25.4mm ID x 4110mm L

4110 mm (161-7/8"), Reverse, Start Serial: JJC0273000

1шт.

10

221145A1

CLAMP

Two Piece

3шт.

11

224303A1

GUIDE

1-5/16 ID x 1/8" wide, Clamp Backup

3шт.

12

1979941C1

SUPPORT

Hydrostatic Tube, Rear

1шт.

13

224302A2

SUPPORT

Hose Clamp, Middle

1шт.

14

224301A2

SUPPORT

Hose Clamp, Front

1шт.

14a

427273A1

SUPPORT

Hose Clamp, Start Serial: JJC0273000

1шт.

15

492-11044

LOCK WASHER,7/16"

16шт.

16

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

16шт.

17

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

18

231-4146

NUT,3/8"-16, GB

6шт.

19

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

22

231-5146

FLANGE NUT,3/8"-16

6шт.

23

183296A2

MOTOR, HYDRAULIC

Hydrostatic, See Figure 06-14, Serial Range: -JJC0268990

1шт.

23

183296A2R

REMAN-HYD MOTOR

2388 CASE IH AXIAL-FLOW COMBINE (NA) BSN JJC0276540, Hydrostatic, Serial Range: -JJC0268990 (1/98-8/04)

1шт.

23

183296A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

23

400475A2

HYDROSTATIC MOTOR,89.13CC

See Figure 06-15, Start Serial: JJC0268991

1шт.

23

400475A2R

REMAN-HYD MOTOR

Reman For New PN 400475A2

1шт.

23

400475A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

24

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

P-Type, Not Illustrated

1шт.

Used to Separate Reverse Hydrostatic and Case Drain Hoses

1шт.

25

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-Type, Not Illustrated

1шт.

Used to Separate Reverse Hydrostatic and Case Drain Hoses

1шт.

26

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Incl 27, 28

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
