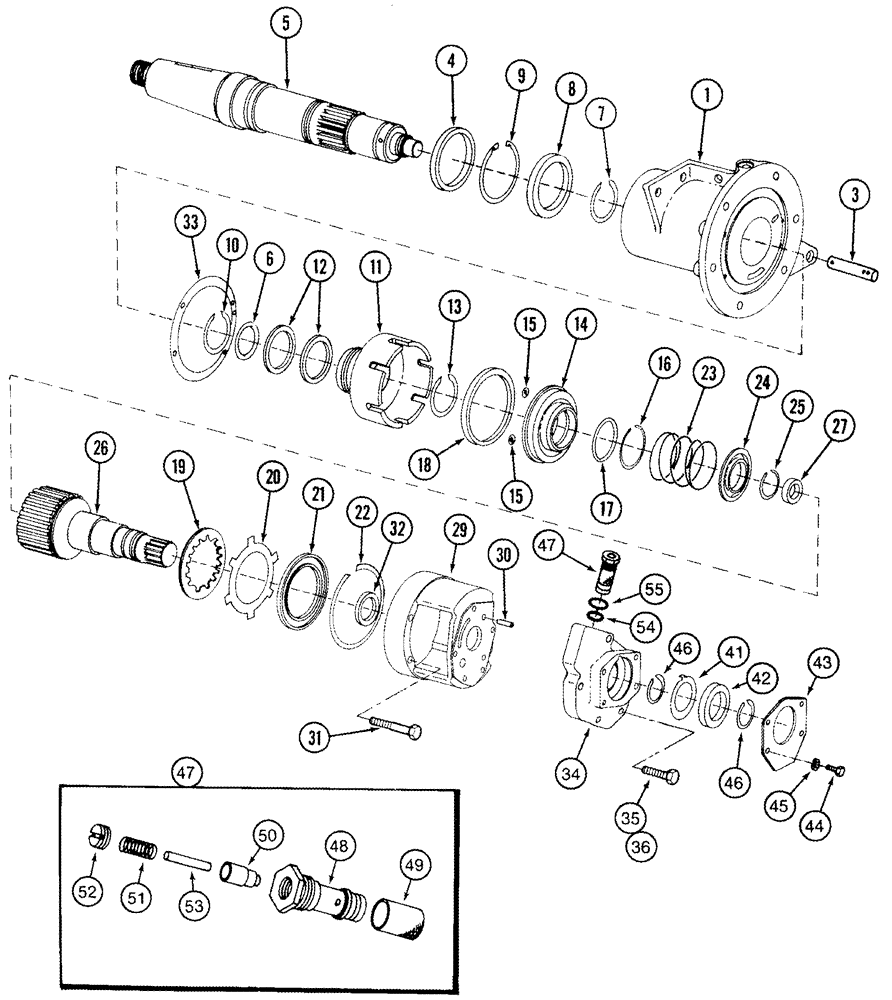

Запчасти Case IH 2388 (06-02) - CLUTCH ASSY - SEPARATOR DRIVE (03) - POWER TRAIN

226876A1

CLUTCH ASSEMBLY

Includes 1 - 55

1шт.

1

1541848C1

HOUSING

1шт.

3

1315229C2

PIN,25.4mm OD x 135mm L

Not Included In Assembly

1шт.

4

188252C1

SEAL,70.8mm ID x 110.13mm OD x 11mm Thk

Clutch Housing

1шт.

5

1329902C1

SHAFT

Separator Drive

1шт.

6

238-7138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 7, 75 Duro

1шт.

7

357194R1

RING

1шт.

8

1541817C1

BALL BEARING,60mm ID x 110mm OD x 22mm W

1шт.

9

101-21433

SNAP RING,#433, 4.641", Int

1шт.

10

271130R1

RING

1шт.

11

133994A1

CLUTCH HOUSING

1шт.

12

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

2шт.

13

68625C1

RING

1шт.

14

133992A1

PISTON

Clutch, Includes 15

1шт.

15

529376R1

STRAINER ELEMENT

2шт.

16

101-11187

SNAP RING,#187, 1.759", Ext

1шт.

17

238-7328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 7, 75 Duro

1шт.

18

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

1шт.

186397A1

SERVICE KIT,Service Package, Drive and Driven Plates

Includes 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Plate

10шт.

20

NSS

NOT SOLD SEPARAT

Disc, Friction

10шт.

21

139202C1

RETAINER

1шт.

22

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

1шт.

23

381493R1

SPRING

1шт.

24

381494R1

RETAINER

1шт.

25

370504R1

RING

1шт.

26

68081C2

SHAFT

Drive

1шт.

27

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

1шт.

29

1989681C2

HOUSING

Includes 30

1шт.

30

37-1512

DOWEL,5/16" x 3/4"

2шт.

31

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

32

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

1-3/4" ID

1шт.

33

529565R2

GASKET,0.79mm Thk

1шт.

34

225057A1

HOUSING

Clutch Pump

1шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

41

193369C1

RETAINER

Pump Housing

1шт.

42

ST571

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

1шт.

43

191421C1

BEARING HOUSING

Pump Housing Bearing

1шт.

44

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

45

492-11025

LOCK WASHER,1/4"

4шт.

46

555570R1

SNAP RING

2шт.

47

69040C94

VALVE

Includes 48 - 53

1шт.

48

NSS

NOT SOLD SEPARAT

Body

1шт.

49

69042C2

STRAINER ELEMENT

1шт.

50

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

51

NSS

NOT SOLD SEPARAT

Spring

1шт.

52

NSS

NOT SOLD SEPARAT

Screw

1шт.

53

NSS

NOT SOLD SEPARAT

Pin

1шт.

54

238-8015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

1шт.

55

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.
