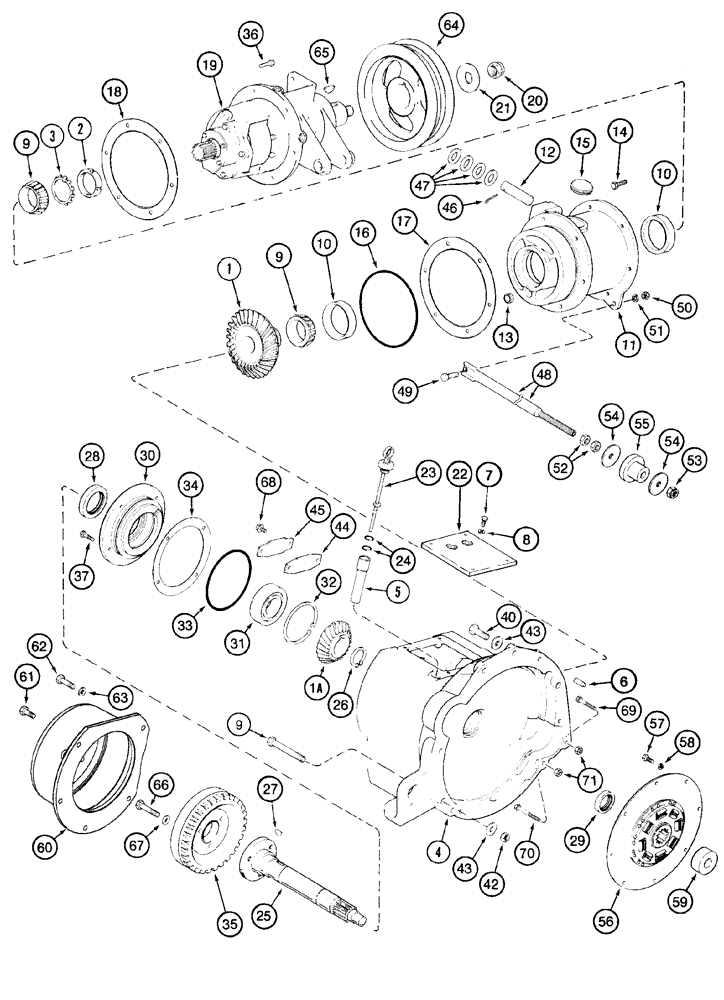

Запчасти Case IH 2388 (06-01[01]) - POWER TAKEOFF DRIVE, BSN JJC0270499 (03) - POWER TRAIN

255398A4

PTO

POWER TAKE OFF Gearbox, Includes 1 - 37, Also Includes Parts On Figure 08-09, Ref. 35 - 38; Figure 08-26, Ref. 33 - 49

1шт.

255398A4R

REMAN-PTO GEARBOX A.

Reman for New P/N 255398A4

1шт.

255398A4C

CORE-PTO GEARBOX A.

Return Number

1шт.

184497C2

GEAR-SET

Includes 1, 1A

1шт.

1

NSS

NOT SOLD SEPARAT

41T, Gear

1шт.

1a

NSS

NOT SOLD SEPARAT

31T, Gear

1шт.

2

191283C1

BEARING LOCK NUT

1шт.

3

192-364

LOCK WASHER

1шт.

4

255400A2

HOUSING

Power Takeoff (PTO) Drive, Includes 2, 3

1шт.

5

188072C1

TUBE,25.4 mm OD, 127 mm Length

1шт.

6

1330136C1

DOWEL

2шт.

7

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

2шт.

10

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

2шт.

11

188161C91

HOUSING

Separator Drive, Includes 12, 13

1шт.

12

195439C2

PIN,25.29mm OD x 101.6mm L

1шт.

13

41-1616

PLUG,Cup, 1", Stainless

1шт.

14

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

15

224066C1

HUB CAP

Replaces 663906R1

1шт.

16

238-6266

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

1шт.

188195C1

SHIM KIT

Separator Drive Housing, Includes 17

1шт.

17

NSS

NOT SOLD SEPARAT

.005", Shim

1шт.

17

NSS

NOT SOLD SEPARAT

.007", Shim

1шт.

17

NSS

NOT SOLD SEPARAT

.010", Shim

1шт.

17

NSS

NOT SOLD SEPARAT

.030", Shim

1шт.

18

188425C2

GASKET,0.79mm Thk

1шт.

19

226876A1

CLUTCH ASSEMBLY

Separator Drive, See Figure 06-02

1шт.

20

231-41120

NUT,1 1/4"-7, GB

1шт.

21

396-41131

WASHER,1 3/8" x 3" x 1/4", HDN

1шт.

22

275989A1

COVER

PTO Housing

1шт.

23

186019C91

DIPSTICK

1шт.

24

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

25

192816C2

SHAFT

1шт.

26

100-12200

SNAP RING,#200, Ext

1шт.

27

126-176

WOODRUFF KEY,#128, 5/16" x 2-1/8", HT

1шт.

28

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

3-5/8" OD

1шт.

29

173559C92

SEAL,45.59mm ID x 66.73mm OD x 11mm Thk

2-5/8" OD

1шт.

30

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

Drive Shaft Bearing Housing

1шт.

31

1541765C1

BEARING, BALL,55 mm ID x 120 mm OD x 29 mm

4-23/32" OD

1шт.

32

100-22475

SNAP RING,4.78", Int, #475

1шт.

33

238-8260

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

1шт.

188196C1

SHIM KIT

Includes 34

1шт.

34

NSS

NOT SOLD SEPARAT

.030", Shim

1шт.

34

NSS

NOT SOLD SEPARAT

.010", Shim

1шт.

34

NSS

NOT SOLD SEPARAT

.007", Shim

1шт.

34

NSS

NOT SOLD SEPARAT

.005", Shim

1шт.

35

1330488C1

PULLEY

8.85 OD, Drive, Auxiliary Pump, See Figure 08 - 09, Ref. 35

1шт.

36

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

37

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

3шт.

40

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

41

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

4шт.

42

425-1010

NUT,5/8"-11, G5

4шт.

43

495-81027

WASHER,21/32" x 1 1/2" x .120"

6шт.

44

185057C2

GASKET,0.91mm Thk

1шт.

45

185056C1

COVER

Bolt Access Hole

1шт.

46

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

47

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

4шт.

48

1315648C1

ROD

1шт.

49

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

50

425-108

NUT,1/2" - 13, Gr 5

1шт.

51

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

52

425-1510

JAM NUT,Jam, 5/8"-18, G5

2шт.

53

231-46110

LOCK NUT,5/8"-18, GB

1шт.

54

107813R1

WASHER

21/32" x 2-1/2" x 11/64"

2шт.

55

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

1шт.

56

184429C2

CLUTCH DISC,352.4mm OD

CLUTCH DISK PTO Drive

1шт.

184429C2R

REMAN-CLUTCH DISC

2388 BSN JJC0276540, BSN JJC0270499 (1/98-8/04)

1шт.

184429C2C

CORE-CLUTCH DISC

Return Number

1шт.

57

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

8шт.

58

392-21038

LOCK WASHER,3/8"

8шт.

59

1324896C2

BUSHING,29.99mm ID x 71.98mm OD x 27mm L

1шт.

60

1303141C3

HOUSING

Hydrostatic Pump, Grease Fitting Access Hole

1шт.

61

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

3шт.

62

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

63

283856C1

WASHER

17/32" x 1" x 3/16"

2шт.

64

1541713C1

PULLEY

11" OD

1шт.

65

126-179

WOODRUFF KEY,#V, 1/2" x 2-3/4", HT

1шт.

66

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

3шт.

67

495-11053

WASHER,1/2", SAE

3шт.

68

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

3/8" x 3/4"

2шт.

69

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

70

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

1шт.

71

425-106

NUT,3/8"-16, Cl 5

2шт.
