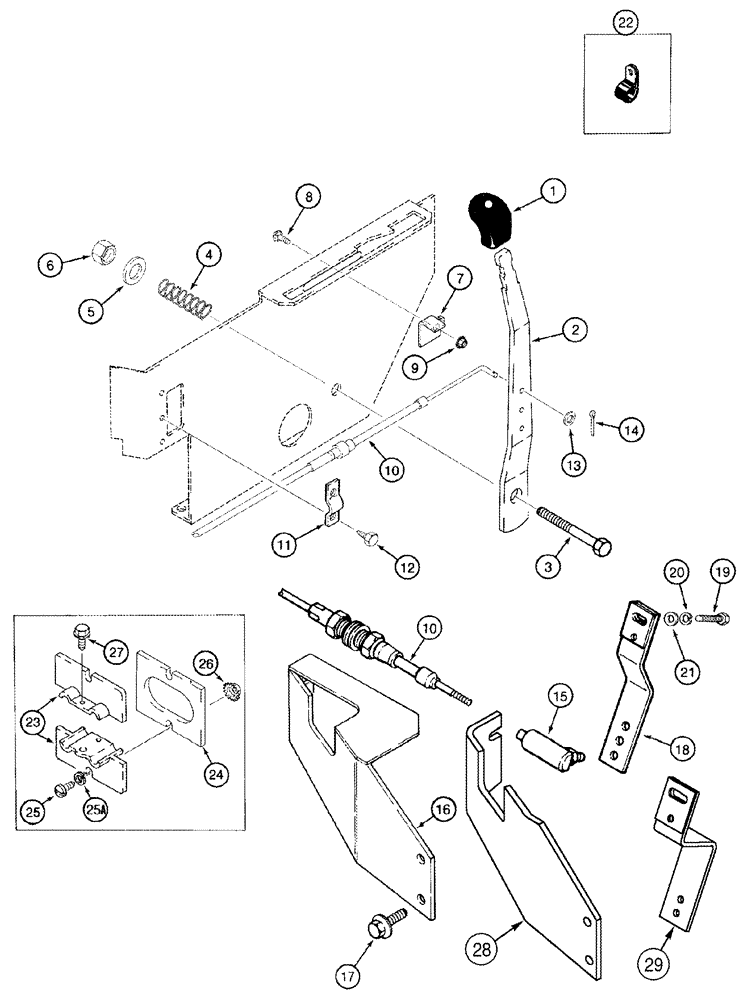

Запчасти Case IH 2388 (03-12) - THROTTLE CONTROL (02) - FUEL SYSTEM

1

134071A1

KNOB

1шт.

2

116434A1

LEVER

1шт.

3

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

4

PO22

SPRING

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

116433A2

STOP

1шт.

8

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

10

115396A1

CABLE

1шт.

11

A75815

CLAMP

1шт.

12

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

2шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

14

432-48

COTTER PIN,1/16" x 1/2"

1шт.

15

1977009C4

BALL JOINT

No. 10

1шт.

16

197085A2

SUPPORT

No Longer Used, Order 344951A1, Ref. 28; 344952A1, Ref. 29

1шт.

17

857-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

18

1977046C6

LEVER

No Longer Used, Order 344951A1, Ref. 28; 344952A1, Ref. 29

1шт.

19

615-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

20

892-11006

LOCK WASHER,M6

2шт.

21

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

2шт.

22

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

23

119314A1

CLAMP

2шт.

24

119328A1

GASKET,5mm Thk

1шт.

25

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

2шт.

25a

492-11010

LOCK WASHER,#10

2шт.

26

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

27

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

28

344951A1

SUPPORT

1шт.

29

344952A1

LEVER

1шт.
