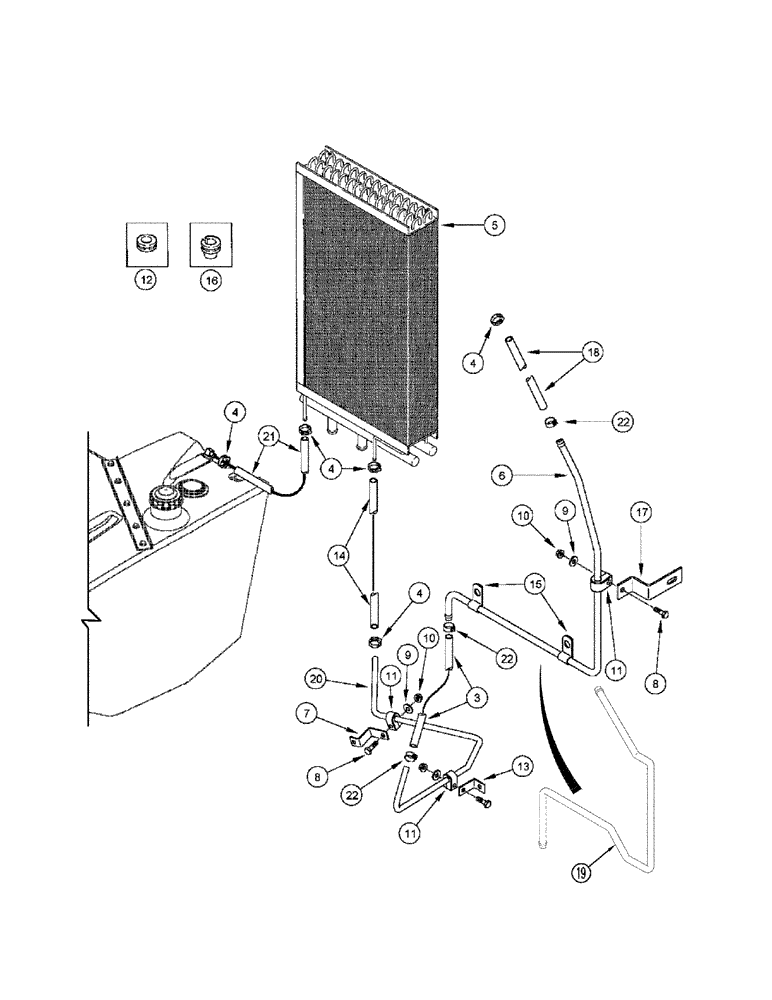

Запчасти Case IH 2388 (03-09[01]) - FUEL, RETURN - BTW JJC0268800 & JJC0272999 (02) - FUEL SYSTEM

3

385579A1

HOSE

152 mm (6"), Cut from S118400

1шт.

4

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

5шт.

5

REF

INSTRUCTION

Cooler, Oil,See Figure(s) 08-05, 08-06

1шт.

6

384824A1

FUEL TUBE,0.375" OD, 423.6, 312.4 mm Length

1шт.

7

121525A1

SUPPORT

1шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

9

495-81121

WASHER,.344" x 1 1/2" x .060"

3шт.

10

231-5344

FLANGE NUT,Flg, 1/4"-20

3шт.

11

236558A1

CLAMP

3шт.

12

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2" ID

2шт.

13

178950C2

ANGLE

1шт.

14

193624A2

FUEL HOSE,9.53 mm ID x 770.00 mm, SAE 30R2

1шт.

15

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

2шт.

16

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

1"

1шт.

17

384064A1

SUPPORT

, Serial Range: -JJC0270499

1шт.

17

1977005C1

SUPPORT

, Serial Range: JJC0270500-JJC0272999

1шт.

18

390653A1

FUEL HOSE,9.53 mm ID x 191.00 mm

Cut from S118400

1шт.

19

411990A1

FUEL TUBE

Fuel Return, Upper, Serial Range: JJC0270500-JJC0272999

1шт.

20

385516A1

FUEL TUBE

Fuel Return

1шт.

21

364783A1

TUBE

1750 mm (68-7/8")

1шт.

22

1348264C1

HOSE CLAMP

3/8" ID

3шт.
