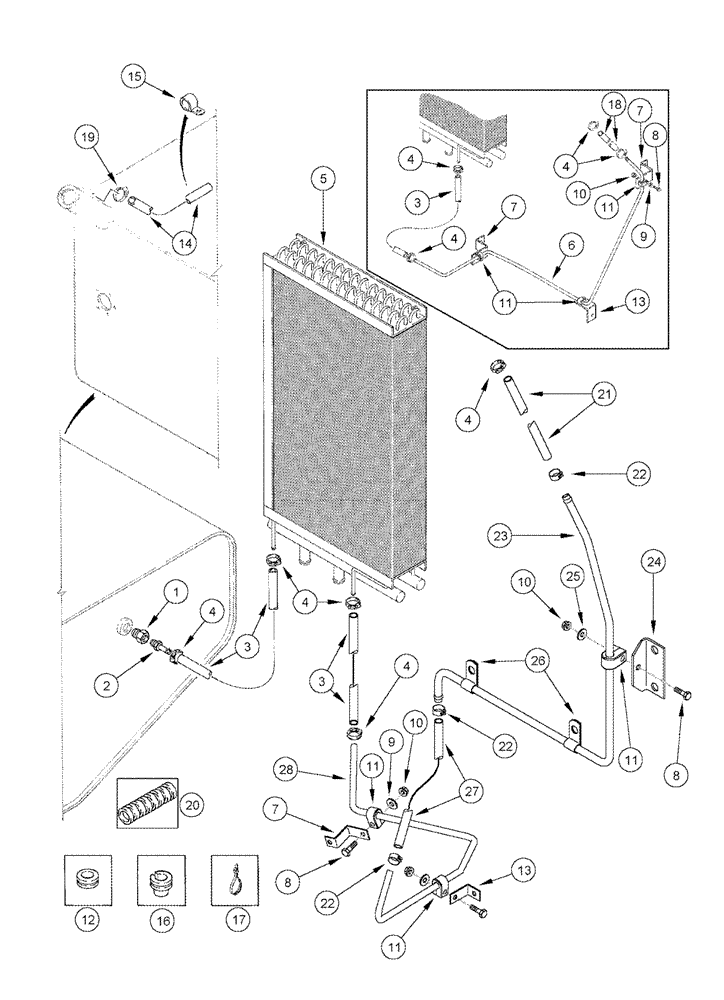

Запчасти Case IH 2388 (03-08) - FUEL, RETURN BSN JJC0268799 (02) - FUEL SYSTEM

1

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

1шт.

2

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

3

193624A2

FUEL HOSE,9.53 mm ID x 770.00 mm, SAE 30R2

2шт.

4

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

6шт.

5

REF

INSTRUCTION

Cooler, Oil, See Figure 08-05, 08-06

1шт.

6

193244A1

FUEL TUBE

No Longer Available, Order 406292A1, Serial Range: -JJC0268022

1шт.

7

121525A1

SUPPORT

1-2шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

9

495-81121

WASHER,.344" x 1 1/2" x .060"

1шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

11

236558A1

CLAMP

3шт.

12

248-2117

GROMMET,5/8" ID x 7/8" Groove Dia

If Used

2шт.

13

178950C2

ANGLE

1шт.

14

1251794C1

FUEL TUBE,2946.40 mm, SAE J844C

Cut From Bulk Tube

1шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

1шт.

16

195803C1

GROMMET

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15"

1шт.

18

1979437C2

HOSE

330 mm (13-1/8"), Cut from S118400

1шт.

19

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

20

375918A1

CONDUIT

Fuel Return

1шт.

21

390653A1

FUEL HOSE,9.53 mm ID x 191.00 mm

Cut from S118400 JJC0268023 to

1шт.

22

1348264C1

HOSE CLAMP

3/8" ID JJC0268023 to

3шт.

23

384824A1

FUEL TUBE,0.375" OD, 423.6, 312.4 mm Length

JJC0268023 to

1шт.

24

409390A1

BRACKET

JJC0268023 to

1шт.

25

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

JJC0268023 to

2шт.

26

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

JJC0268023 to

3шт.

27

385579A1

HOSE

152 mm (6"), Cut from S11840 JJC0268023 to

1шт.

28

385516A1

FUEL TUBE

JJC0268023 to

1шт.

406292A1

KIT

Includes 21, 22, 23, 26, 27, 28

1шт.
