Запчасти Case IH 2388 (03-04) - FUEL INJECTION - PUMP AND DRIVE (02) - FUEL SYSTEM

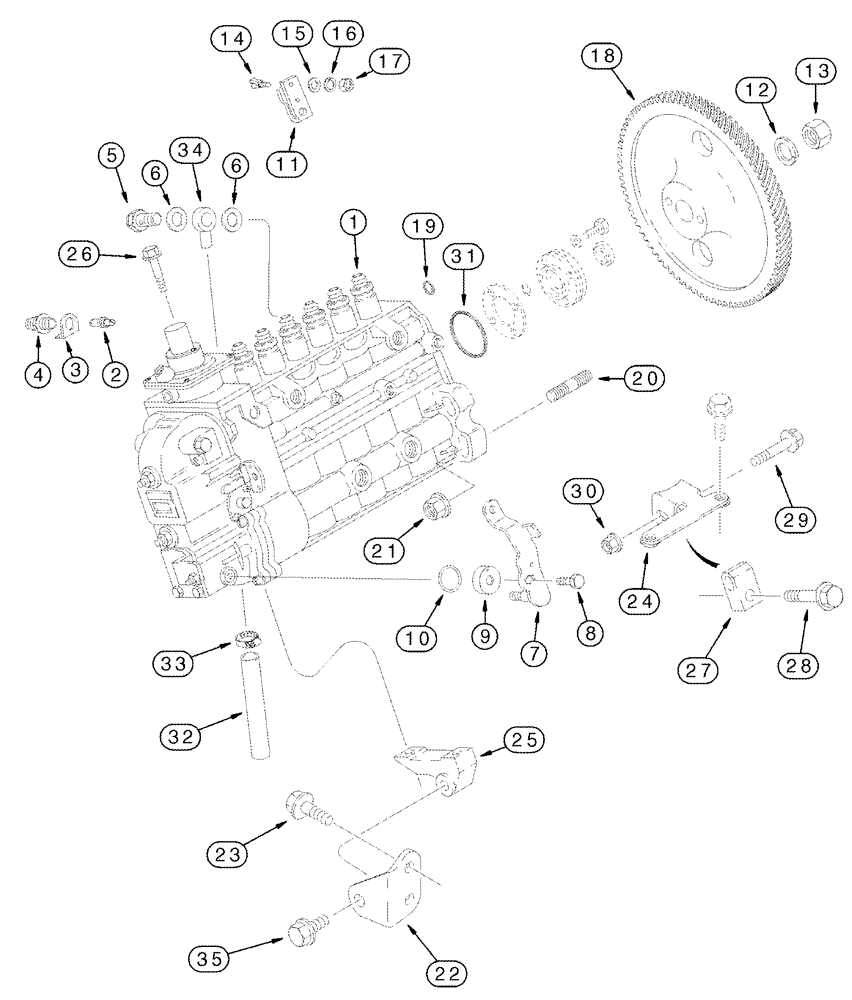

Схема запчастей Case IH 2388 - (03-04) - FUEL INJECTION - PUMP AND DRIVE (02) - FUEL SYSTEM
15
24
34
21
6
26
18
25
20
8
19
25
4
11
23
16
32
2
13
28
22
29
12
3
5
10
33
30
9
1
6
31
17
7
27
14

Артикул

Название

Примечание

Количество

1

87428531

PUMP, FUEL INJECTION

PUMP, INJECTION Includes 2 - 17, Replaces J931957

1шт.

1

87428532

REMAN-INJECTION PUMP

1шт.

1

87428533

CORE-INJECTION PUMP

Return Part Number

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

5

87409051

VALVE

Overflow, Replaces J932096

1шт.

6

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

M14

2шт.

7

J929322

LEVER

Fuel Shut Off

1шт.

8

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

9

691292C1

RETAINER

1шт.

10

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

11

1808728C1

LEVER

1шт.

12

J920922

LOCK WASHER

1шт.

13

J920921

NUT

M20 x 1.5

1шт.

14

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

16

892-11006

LOCK WASHER,M6

1шт.

17

829-1306

NUT,M6, Cl 10

1шт.

18

J931380

GEAR

1шт.

19

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

1шт.

20

86991263

STUD,M10 x 1.5 x 55

(2-5/32")

4шт.

21

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

22

J938091

SUPPORT

Replaces J930841

1шт.

23

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

24

J921357

HOLDER

1шт.

25

J926273

SUPPORT

1шт.

26

845-8090

BOLT,Hvy Hex, M8 x 90mm, Cl 8.8

2шт.

27

J926781

SUPPORT

1шт.

28

J920622

FLANGE BOLT,Hex, M10 x 30mm, Cl 10.9

Replaces 844-10040

1шт.

29

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

30

J900589

NUT

M8

1шт.

31

J924605

SEAL

1шт.

32

J918176

HOSE,7.90 mm ID x 330.00 mm

1шт.

33

A171099

HOSE CLAMP,13.2mm - 15.4mm

1шт.

34

J911447

CONNECTOR, ELEC

CONNECTOR, Serial Range: -JJC0272999

1шт.

34

J935740

BANJO BOLT

30 Degree, Start Serial: JJC0273000

1шт.

35

854-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 10.9

1шт.

Выбрано товаров: 38
