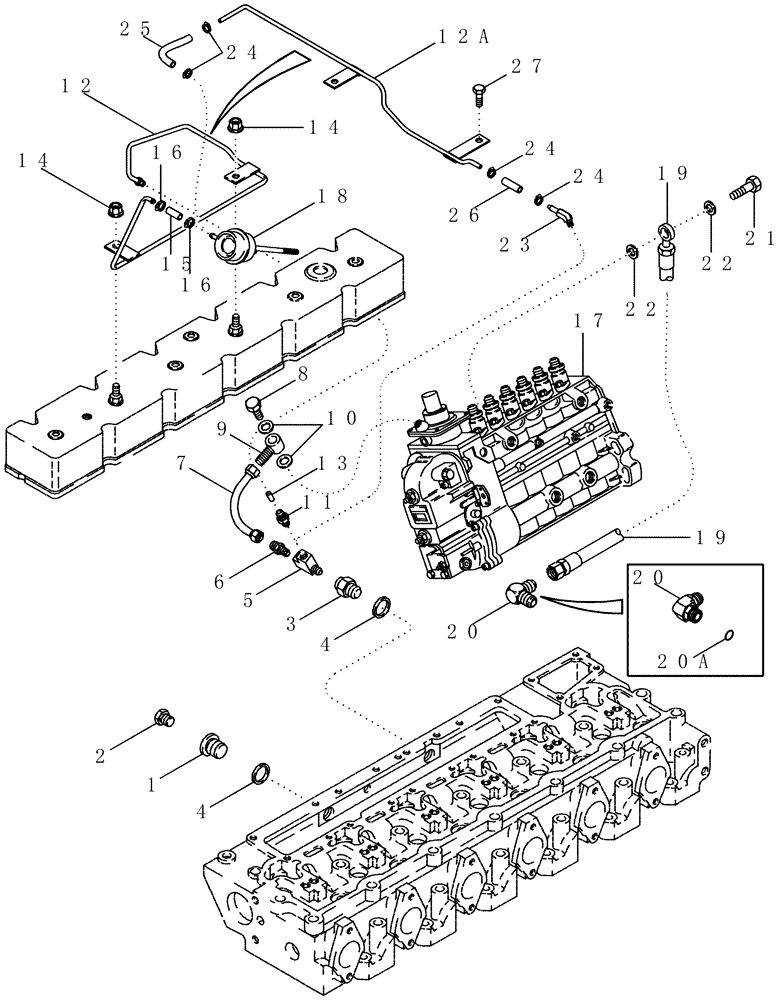

Запчасти Case IH 2388 (03-02) - WASTEGATE SYSTEM (02) - FUEL SYSTEM

1

J924148

PLUG,M22 x 1.5

1шт.

2

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

3

J921594

PLUG

1шт.

4

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

2шт.

5

J930789

TEE

1/8" x 1/8" x 1/8", Replaces 217-1061

1шт.

6

222-21

FITTING,7/16"-24 x 1/8" NPTF

1шт.

7

J991512

TUBE,6.35 mm OD x 120 mm L

120 mm

1шт.

8

J903035

BANJO BOLT

M12 x 24

1шт.

9

J919644

FITTING

Banjo, Serial Range: -JJC0272999

1шт.

9

J990881

CONNECTION

Banjo, Start Serial: JJC0273000

1шт.

10

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm

2шт.

11

A77796

CONNECTOR, ELEC

CONNECTOR, Serial Range: -JJC0272999

1шт.

12

J934473

TUBE,6.35 mm OD x 325.5, 133.4 mm L

Replaces J926968, Serial Range: -JJC0272999

1шт.

12a

J935612

TUBE,6.35 mm OD x 430.2, 141.4 mm L

Air Fuel Control, Start Serial: JJC0273000

1шт.

13

222-102

SLEEVE,1/4" Tube

, Serial Range: -JJC0272999

1шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Replaces 825-2410

1-2шт.

15

J938056

HOSE,6.35 mm ID x 51.00 mm

1шт.

16

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

17

87428531

PUMP, FUEL INJECTION

PUMP, INJECTION See Figure 03-04, Replaces J931957

1шт.

18

REF

INSTRUCTION

Actuator, See Figure 02-35

1шт.

19

J930690

HOSE,420.00 mm

Replaces J916779

1шт.

20

A77512

ELBOW

To Cylinder Block, Replaces 222-762, Serial Range: -JJC0272999

1шт.

20

J945212

ELBOW

, Start Serial: JJC0273000

1шт.

20a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

21

J918002

BANJO BOLT

1шт.

22

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

10 x 15.5 x 1 mm

2шт.

23

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Stem, Start Serial: JJC0273000

1шт.

24

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

, Start Serial: JJC0273000

4шт.

25

J238056

Hose, Cut 51 mm (2") from J991038, Start Serial: JJC0273000

1шт.

26

J938057

HOSE,6.35 mm ID x 182.00 mm

Cut from J991038

1шт.

27

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

, Start Serial: JJC0273000

1шт.
