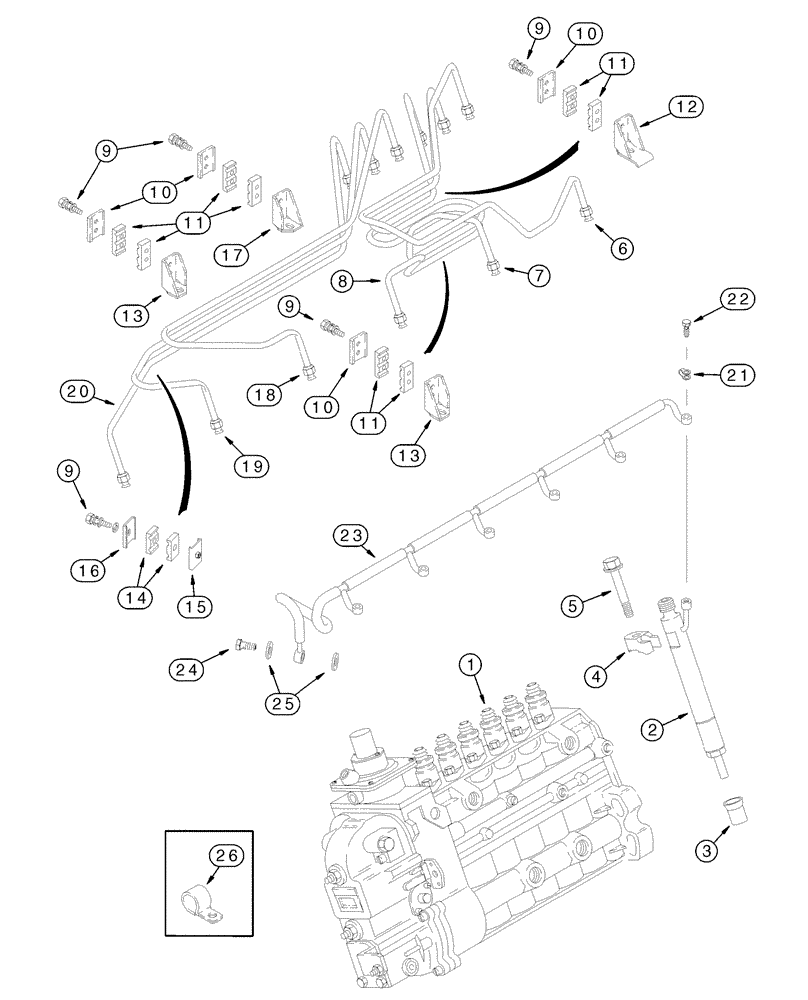

Запчасти Case IH 2388 (03-01) - FUEL INJECTION SYSTEM (02) - FUEL SYSTEM

1

87428531

PUMP, FUEL INJECTION

PUMP, INJECTION See Figure 3-04, Replaces J931957

1шт.

2

J931735

FUEL SYSTEM INJECTOR

See Figure 3-05

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

6шт.

4

J910279

CLAMP

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

6шт.

6

J930391

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 1

1шт.

7

J930392

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 2

1шт.

8

J930393

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 3

1шт.

9

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

9шт.

10

J991275

BRACKET

4шт.

11

J917747

CLAMP

8шт.

12

J919622

BRACE

1шт.

13

J282942

BRACKET

1шт.

14

J917746

CLAMP

2шт.

15

J991277

BRACE

1шт.

16

J991276

BRACE

1шт.

17

J282942

BRACKET

1шт.

18

J930394

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 4

1шт.

19

J930395

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 5

1шт.

20

J930396

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 6

1шт.

21

J903380

SEAL

6шт.

22

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

23

J920595

TUBE ASSY.

1шт.

24

J924726

BANJO BOLT

1шт.

25

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

26

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

2шт.
