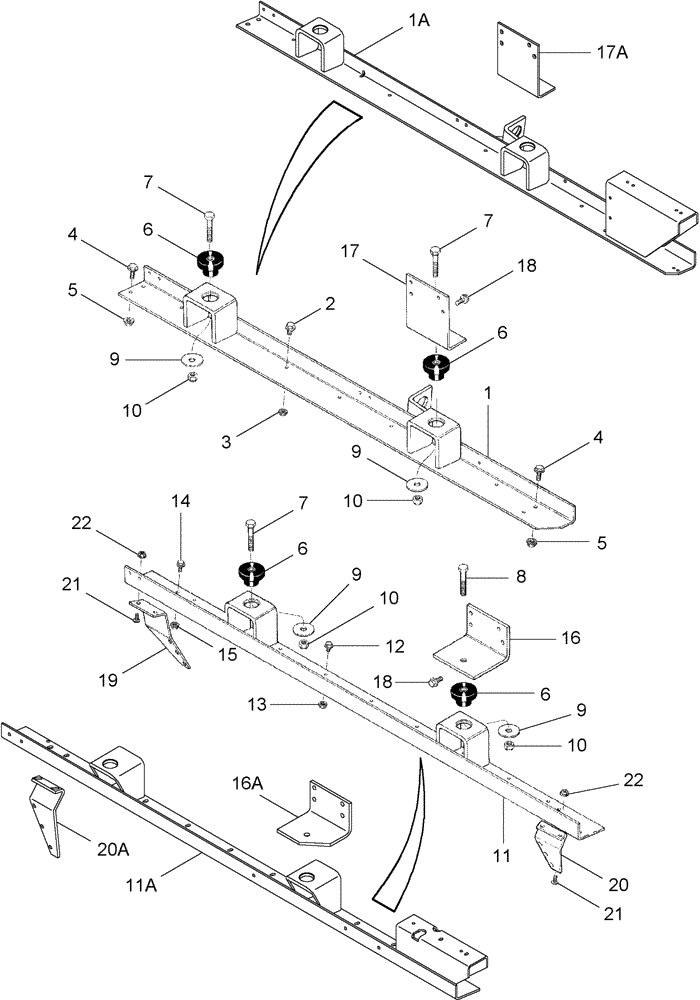

Запчасти Case IH 2388 (02-53) - MOUNTING, ENGINE (01) - ENGINE

1

198444A1

SUPPORT

LH, Serial Range: -JJC0272999

1шт.

1

87404493

ENGINE MOUNT

LH, Start Serial: JJC0273000

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

4шт.

7

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

3шт.

8

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

9

107813R1

WASHER

21/32" x 2-1/2" x 11/64"

4шт.

10

231-41110

LOCK NUT,5/8"-11, GB

4шт.

11

198443A3

SUPPORT

RH, Serial Range: -JJC0272999

1шт.

11a

87413867

HANDRAIL

RH, Start Serial: JJC0273000

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

9шт.

13

231-5146

FLANGE NUT,3/8"-16

9шт.

14

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

16

1315645C1

SUPPORT

RH Front, Serial Range: -JJC0272999

1шт.

16a

400752A1

BRACKET

RH Front, Start Serial: JJC0273000

1шт.

17

1315644C1

SUPPORT

LH Front, Serial Range: -JJC0272999

1шт.

17a

400753A1

BRACKET

LH Front, Start Serial: JJC0273000

1шт.

18

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

8шт.

19

1330098C2

SUPPORT

LH

1шт.

20

1330099C2

SUPPORT

RH, Serial Range: -JJC0272999

1шт.

20a

87416055

SUPPORT

RH, Start Serial: JJC0273000

1шт.

21

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.

22

231-5146

FLANGE NUT,3/8"-16

4шт.
