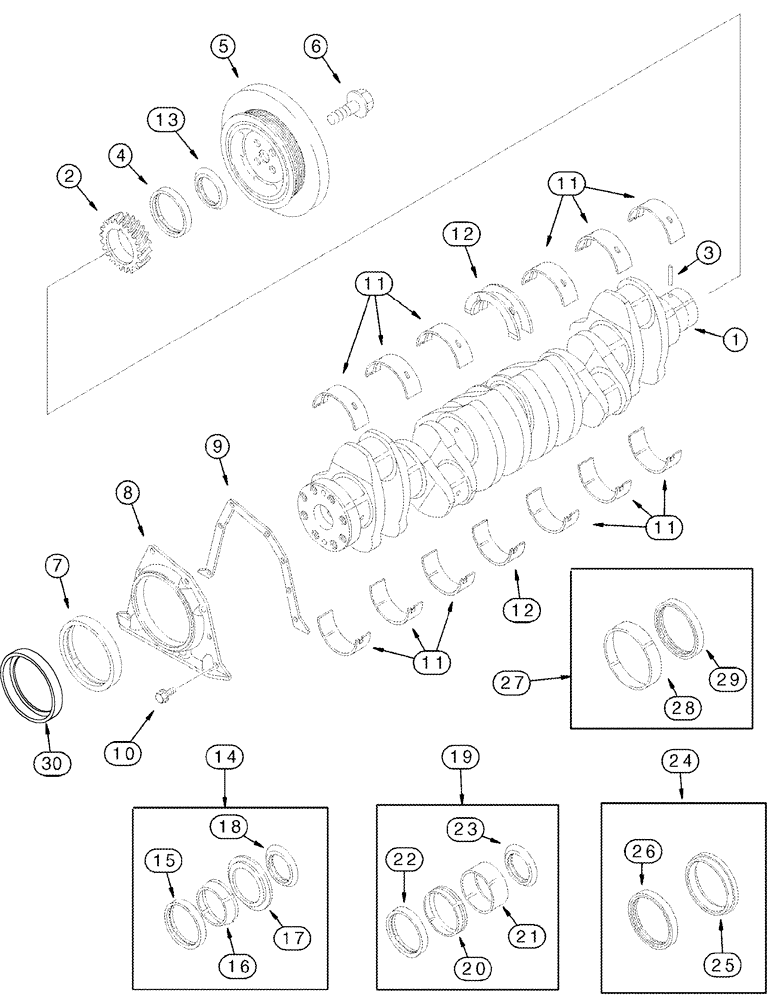

Запчасти Case IH 2388 (02-46) - CRANKSHAFT (01) - ENGINE

JR918986

REMAN-CRANKSHAFT

Remanufactured, Only For N.A., Order J918986

1шт.

JC918986

CORE-CRANKSHAFT

1шт.

1

J918986

CRANKSHAFT

Includes 2, 3

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77790, Ref. 14

1шт.

5

J925568

DAMPER,246mm OD

, Serial Range: -JJC0272999

1шт.

5

J925570

DAMPER

, Start Serial: JJC0273000

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

M14 x 35

4шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order J934486, Ref. 24

1шт.

8

J933384

REAR COVER

Replaces J921042

1шт.

9

J914301

GASKET

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

, Serial Range: -JJC0272999

8шт.

10

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10,9, Start Serial: JJC0273000

8шт.

11

J945930

BEARING SET

Main, Standard, Replaces A77711

6шт.

11

J945931

BEARING SET

Main, Undersize .25 mm, Replaces A77712

6шт.

11

J945932

BEARING SET

Main, Undersize .50 mm, Replaces A77713

6шт.

11

J945933

BEARING SET

Main, Undersize .75 mm, Replaces A77714

6шт.

11

J945934

BEARING SET

Main, Undersize 1.00 mm, Replaces A77715

6шт.

12

J945929

THRUST BEARING

Thrust, Standard, Replaces A77843

1шт.

12

J945922

THRUST BEARING

Thrust, Undersize .25 mm, Replaces A77844

1шт.

12

J945923

THRUST BEARING

Thrust, Undersize .50 mm, Replaces A77845

1шт.

12

J945924

THRUST BEARING

Thrust, Undersize .75 mm, Replaces A77846

1шт.

12

J945925

THRUST BEARING

Thrust, Undersize 1.00 mm, Replaces A77847

1шт.

12

J945926

THRUST BEARING

Thrust, Standard, Oversize .25 mm, Replaces A77848

1шт.

12

J945927

THRUST BEARING

Thrust, Standard, Oversize .50 mm, Replaces A77849

1шт.

12

J945928

THRUST BEARING

Thrust, Undersize 0,50 mm, Oversize .50 mm, Replaces A77850

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Order A77790, Ref.14

1шт.

14

A77790

SEAL KIT

Crankshaft, Front, Includes 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Tool

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

Crankshaft, Front, Includes 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J934486

SERVICE KIT

Crankshaft, Rear, Includes 24A, 25, 26, Replaces A77809, J353978

1шт.

24a

NSS

NOT SOLD SEPARAT

Tool, Not Illustrated

1шт.

25

NSS

NOT SOLD SEPARAT

Tool

1шт.

26

NSS

NOT SOLD SEPARAT

Seal

1шт.

27

A77810

SERVICE KIT

Crankshaft, Rear, Includes 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

29

NSS

NOT SOLD SEPARAT

Seal

1шт.

30

87423334

SEAL,129.5mm ID x 148.45mm OD x 6.5mm Thk

Dust

1шт.
