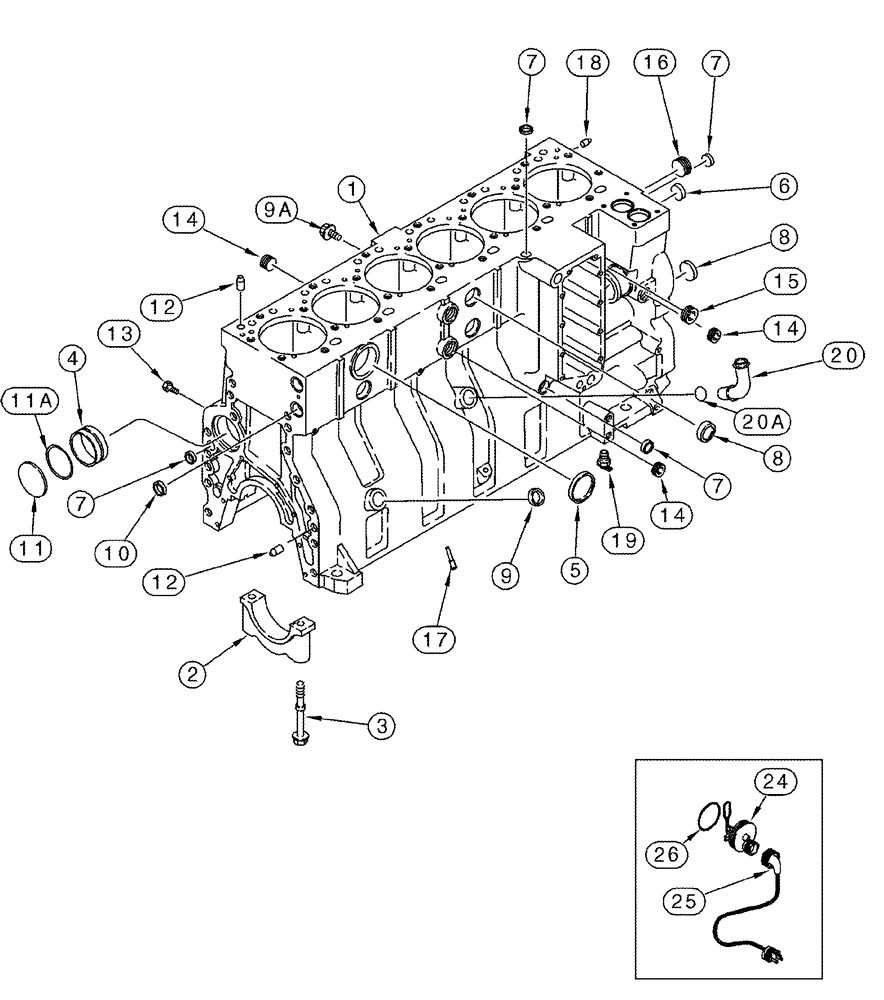

Запчасти Case IH 2388 (02-43[01]) - CYLINDER BLOCK- ENGINE BLOCK HEATERS - REPAIR KIT - BSN JJC0273000 (01) - ENGINE

198833A1

BASIC ENGINE

See Note

1шт.

198833A1R

REMAN-BASIC ENGINE

Reman for New PN 198833A1

1шт.

198833A1C

CORE-BASIC ENGINE

Return Number

1шт.

6830LBC

CORE-ENGINE

Replaces 198833A1C, 6-830-LBC

1шт.

J934600

SKELETON ENGINE

Short

1шт.

JR934600

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Short, Remanufactured, Only For N.A., Replaces JR931187

1шт.

6830SHBC

CORE-SHORT ENGINE

Short, Replaces JC931187, JC925187, 6-830-SHBC

1шт.

87432483

ENGINE

New, Complete, Tier 2, For 2388

1шт.

1

87432483EC

CORE-EPA ENGINE

Environmental Core

1шт.

2

J917313

BEARING CAP

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

14шт.

4

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

Replaces J901685, J943199

7шт.

5

A77782

PLUG

58 mm, If Used

1шт.

6

A77586

PLUG

28.9 mm

2шт.

7

A77506

PLUG

21 mm

4шт.

8

J905401

PLUG

35 mm

4шт.

9

A77530

PLUG

1-13/64" OD (30 mm), If Used

2шт.

9a

J929561

FLANGE BOLT,Hex, M10 x 1.5 x 16mm

10 x 16 mm, Not Used

1шт.

10

J920706

PLUG

22 mm, If Used

1шт.

10

313244A1

PLUG

Hex Socket, 22 mm, Includes 10A, If Used

2шт.

10a

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2.2 mm, Not Illustrated

1шт.

11

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

1шт.

11a

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

4шт.

13

J906619

PLUG,1/8" - 27

1/8" PT, If Used

6шт.

14

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

If Used

5шт.

15

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC If Used

2шт.

16

86625135

PLUG,1" - 11-1/2 NPT

1шт.

17

J928031

NOZZLE,8.5mm OD x 30mm L

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

19

217-103

COCK, DRAIN

1/4" PT

1шт.

20

J948079

TUBE,0.875" OD

Turbo Drain, Serial Range: -JJC0274396

1шт.

20

87437056

TUBE,.875" OD

Turbo Drain, Serial Range: JJC0274397-JJC0274449

1шт.

20a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

21

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

Retangular, Not Illustrated

6шт.

22

J678923

PLUG,M10 x 1

10 mm, Includes 22A, If Used, Not Illustrated

6шт.

22a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

23

J678921

PLUG

14 mm, Includes 23A, If Used, Not Illustrated

2шт.

23a

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

196804A1

KIT

Engine Block Heater, Includes 24 - 26, Serial Range: -JJC0272999

1шт.

310493A1

KIT

Engine Block Heater, 120V/1000W, Includes 24, 25, Start Serial: JJC0273000

1шт.

24

NSS

NOT SOLD SEPARAT

Element

1шт.

25

196466A1

ELECTRIC CABLE

1829 mm (72")

1шт.

26

J910517

O-RING

If Used

1шт.

310494A1

KIT

Engine Block Heater, 240v/1000w, Includes 24, 25, Start Serial: JJC0273000

1шт.

24

NSS

NOT SOLD SEPARAT

Element

1шт.

25

J913112

WIRE HARNESS

305 mm (12")

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15", Not Illustrated

1шт.
