Запчасти Case IH 2388 (02-39) - CYLINDER HEAD - VALVE MECHANISM (01) - ENGINE

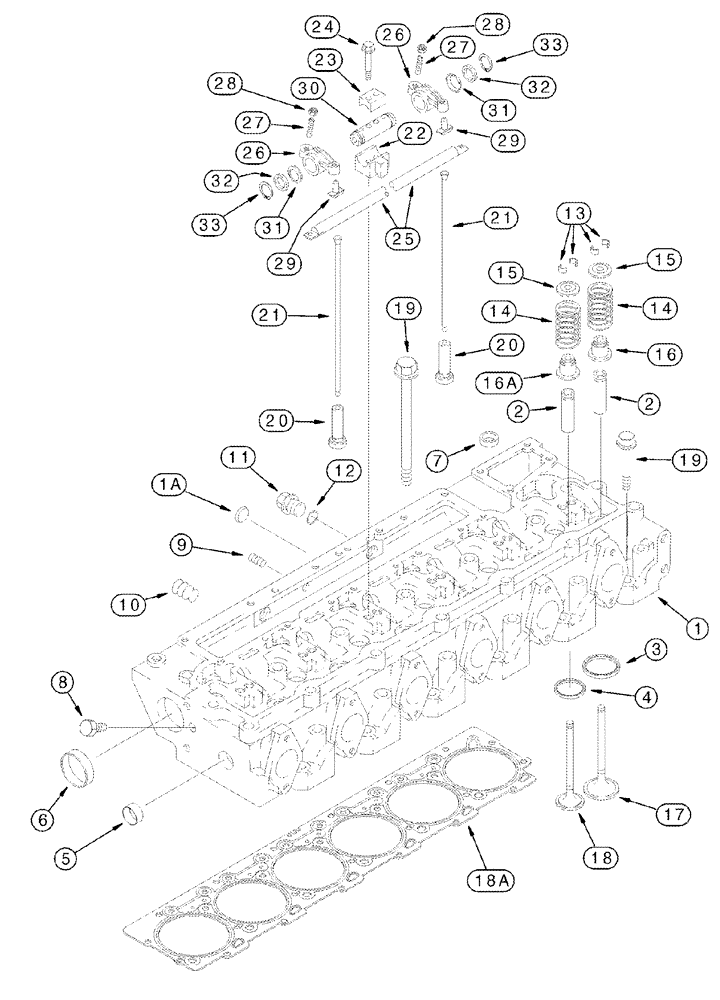

Схема запчастей Case IH 2388 - (02-39) - CYLINDER HEAD - VALVE MECHANISM (01) - ENGINE
19
12
31
25
10
1a
16a
21
9
5
18
20
23
32
1
28
4
6
18a
11
14
17
27
33
14
15
31
21
7
22
19
30
20
2
26
24
15
29
13
27
28
2
29
32
26
16
33
3
8

Артикул

Название

Примечание

Количество

J936293

CYLINDER HEAD

With Valves, Includes 1 - 18, Replaces J931923

1шт.

JR936293

REMAN-CYLINDER HEAD

Replaces JR928669

1шт.

JC936293

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

J936178

HEAD

Stripped, Includes 1A - 7, No Longer Available, Order J936293

1шт.

1a

J912900

PLUG

24 mm

1шт.

2

J923564

VALVE GUIDE

12шт.

3

J924582

INSERT

Intake

6шт.

3

J925468

SEAT, VALVE

.25 mm, Oversize, Service Repair Only

6шт.

3

J925470

SEAT, VALVE

.50 mm, Oversize, Service Repair Only

6шт.

4

J929005

INSERT

Exhaust

6шт.

4

J929006

INSERT

.25 mm, Oversize, Service Repair Only

6шт.

4

J929007

INSERT

.50 mm, Oversize, Service Repair Only

6шт.

5

J920443

PLUG

30 mm

1шт.

6

J922072

PLUG

58 mm

2шт.

7

41-1616

PLUG,Cup, 1", Stainless

5шт.

8

217-426

PLUG,Hex Soc, 1/16" - 27 NPTF

1шт.

9

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

10

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

11

J924148

PLUG,M22 x 1.5

M22

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

2шт.

13

J901177

VALVE

24шт.

14

J925272

VALVE SPRING

12шт.

15

J925273

ROTATOR

Rotator, Valve

12шт.

16

J927642

SEAL

Replaces J915707

6шт.

16a

J927642

SEAL

6шт.

17

J924492

STD INLET VALVE

STD ENGINE INLET VALVE

6шт.

18

J921444

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

6шт.

18a

J938267

CYLINDER HEAD GASKET,2.01mm Thk

See Figure 02-38

1шт.

19

J917728

BOLT

160 mm

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

80 mm

12шт.

20

J931623

TAPPET

12шт.

21

J905194

PUSH ROD

12шт.

22

J905870

SUPPORT

6шт.

23

J901693

CLAMP

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

12шт.

25

J919677

TUBE

1шт.

26

J901717

ROCKER

Includes 27 - 29

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

Replaces J34086

1шт.

28

A77902

NUT

3/8" - 24 NF, Replaces 425-116

1шт.

29

NSS

NOT SOLD SEPARAT

Insert

1шт.

30

J919435

SHAFT

6шт.

31

J906100

SPRING CUP

12шт.

32

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

12шт.

33

100-1187

SNAP RING,#87, Ext

12шт.

Выбрано товаров: 44
