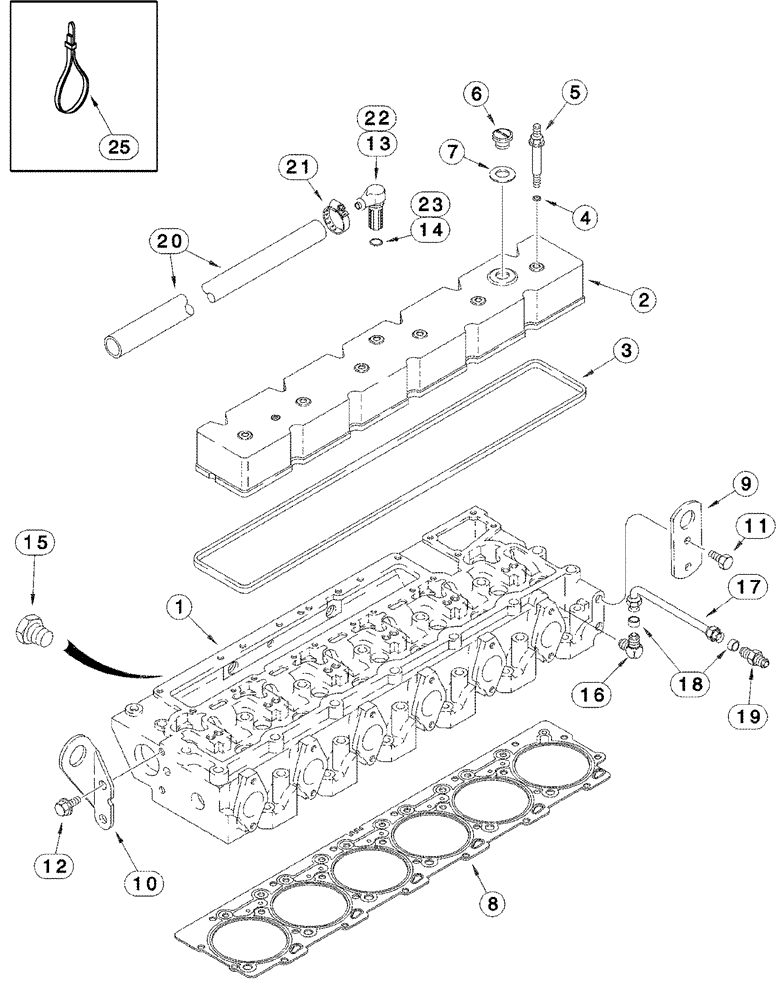

Запчасти Case IH 2388 (02-38) - CYLINDER HEAD, COVER AND BREATHER (01) - ENGINE

1

REF

INSTRUCTION

Head Assy, See Figure 02-39

1шт.

2

J930903

VALVE COVER

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

6шт.

5

J922639

STUD

6шт.

6

J902468

FILLER CAP,Male

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

1шт.

8

J938267

CYLINDER HEAD GASKET,2.01mm Thk

Standard, Replaces J935585

1шт.

8

J935586

CYLINDER HEAD GASKET,1.91mm Thk

.25 mm, Replaces J931026

1шт.

8

J935587

CYLINDER HEAD GASKET,2.38mm Thk

.50 mm, Replaces J931027

1шт.

9

J907861

LIFTING EYE

Lift, Front

1шт.

10

J906440

LIFTING EYE

Lift, Rear

1шт.

11

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

12

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

13

J920497

ELBOW

No Longer Available, Order J935113, J934865; Ref 22, 23

1шт.

14

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Used with J920497

1шт.

15

J906619

PLUG,1/8" - 27

1/8" PT

1шт.

16

87026320

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1/4 tube OD

1шт.

17

J924589

TUBE,6.35 mm OD x 112.6 mm L

Includes 18

1шт.

18

222-153

SLEEVE,1/4" Tube

2шт.

19

87026319

HYD CONNECTOR,1/2"-24 x 1/8" NPTF w/Nut

1/4 tube OD

1шт.

20

1541750C1

HOSE

Crankcase Breather, 3760 mm (148-1/8"), Cut from 364360C2, ASN JJC0274450 See Figure 02-43 (02) For Side Crankcase Breather, Start Serial: JJC0274450

1шт.

21

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1шт.

22

J935113

ELBOW

1шт.

23

J934865

SEAL

17.4 mm ID x 4.3 mm

1шт.

24

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

, Start Serial: JJC0274450

1шт.

25

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" Tie, Start Serial: JJC0274450

1шт.

27

87413814

COVER

Used Without Side Crankcase Breather, Start Serial: JJC0274450

1шт.

28

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

, Start Serial: JJC0274450

6шт.
