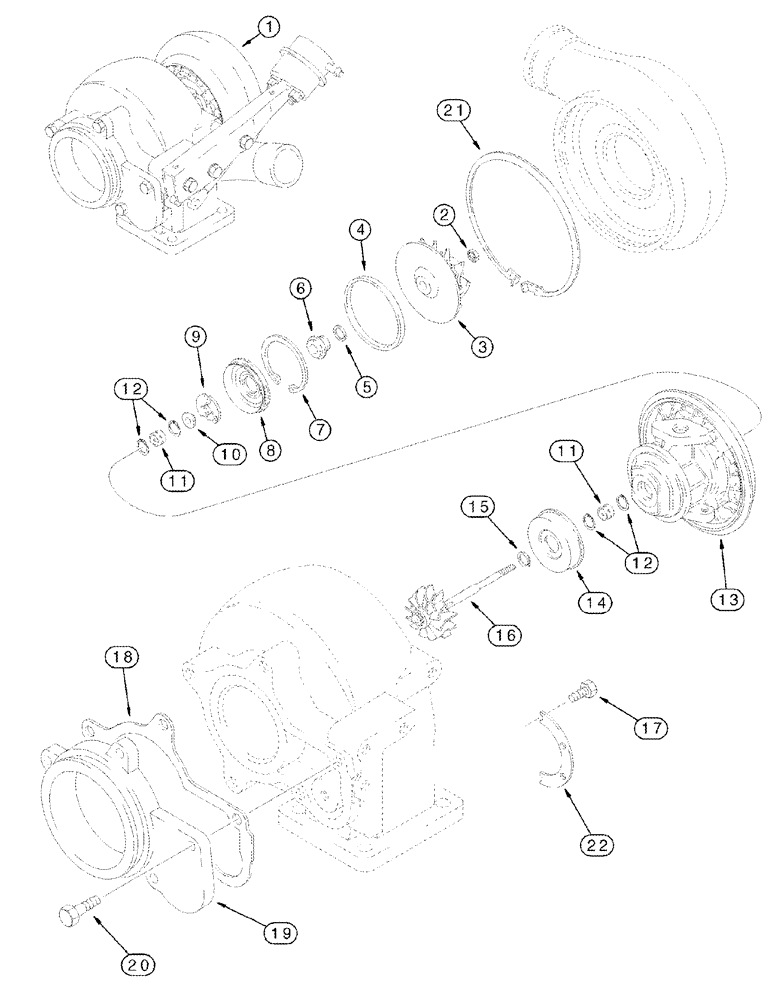

Запчасти Case IH 2388 (02-34) - TURBOCHARGER ASSY - ASN JJC0273000 (01) - ENGINE

87561561

REPAIR KIT

Reman-Turbocharger, Includes J937706, J755843, Not Illustrated

1шт.

87561571R

REMAN-TURBOCHARGER

Turbo Only for Kit PN 87561561

1шт.

87561571C

CORE-TURBOCHARGER

Return Number

1шт.

87410622

TURBOCHARGER

Includes J937706, J755843

1шт.

87410622R

REMAN-TURBOCHARGER

2388 ASN JJC0273000, (1/98 - 8/04)

1шт.

87410622C

CORE-TURBOCHARGER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Turbocharger, Includes 2 - 22; Also Includes 1 -12, See Figure 02-35

1шт.

87410622R

REMAN-TURBOCHARGER

2388 ASN JJC0273000, (1/98 - 8/04)

1шт.

87410622C

CORE-TURBOCHARGER

Return Number

1шт.

J538379

HOUSING

Includes 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor and Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J535243

GASKET,0.25mm Thk

1шт.

19

J528010

ADAPTER

1шт.

20

J503533

BOLT

M8 x 20

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Includes 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
