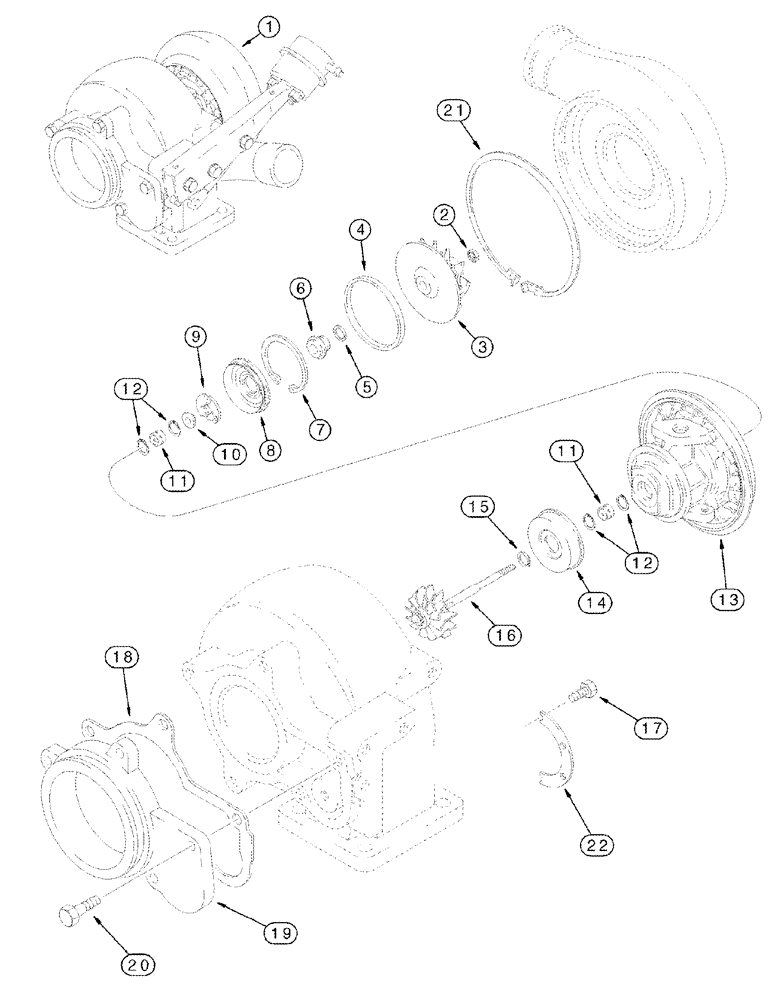

Запчасти Case IH 2388 (02-33) - TURBOCHARGER ASSY - BSN JJC0273000 (01) - ENGINE

J802888

TURBOCHARGER

Includes J537762, J519807, J911941, Not Illustrated

1шт.

JR802888

REMAN-TURBOCHARGER

Remanufactured TURBOCHARGER, Includes JR537762, J519807, J911941, Not Illustrated

1шт.

JC537762

CORE-TURBOCHARGER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Turbocharger, Includes 2 - 22, Also Includes 1 - 12, See Figure 02-35

1шт.

J538379

HOUSING

Includes 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J535243

GASKET,0.25mm Thk

1шт.

19

J528010

ADAPTER

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Consists of 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
