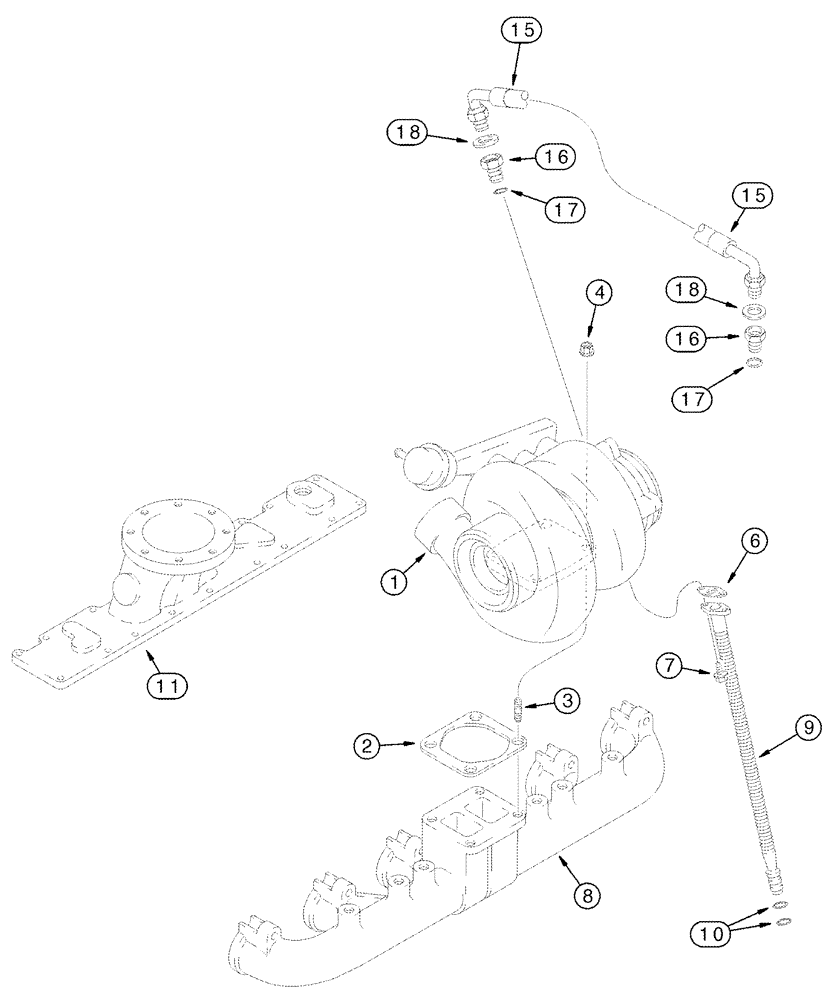

Запчасти Case IH 2388 (02-31) - TURBOCHARGER SYSTEM - BSN JJC0273000 (01) - ENGINE

1

J802888

TURBOCHARGER

New, See Figure 02-33, Ref 1-22, Also See Figure 02-35, Ref 1-12

1шт.

1

JR802888

REMAN-TURBOCHARGER

See Figure 02-33, Ref 1-22, Also see Figure 02-35, Ref 1-12

1шт.

1

JC537762

CORE-TURBOCHARGER

Core

1шт.

2

J911941

GASKET

1шт.

3

J818823

STUD

M10 x 40

4шт.

4

J818824

FLANGE NUT

M10

4шт.

6

J819378

GASKET

No Longer Used, Order J285747

1шт.

6

J285747

GASKET

Replaces J819378, J942725

1шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

J932180

MANIFOLD

1шт.

9

87423080

TUBE

Includes 10, Replaces J928629

1шт.

10

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

11

J926044

COVER

1шт.

15

J918562

HOSE

538 mm (21-1/4")

1шт.

16

J919687

HYD CONNECTOR

Includes 17

2шт.

17

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

18

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
